AMWP11.5-8100Self-Propelled Vertical MastELECTRIC

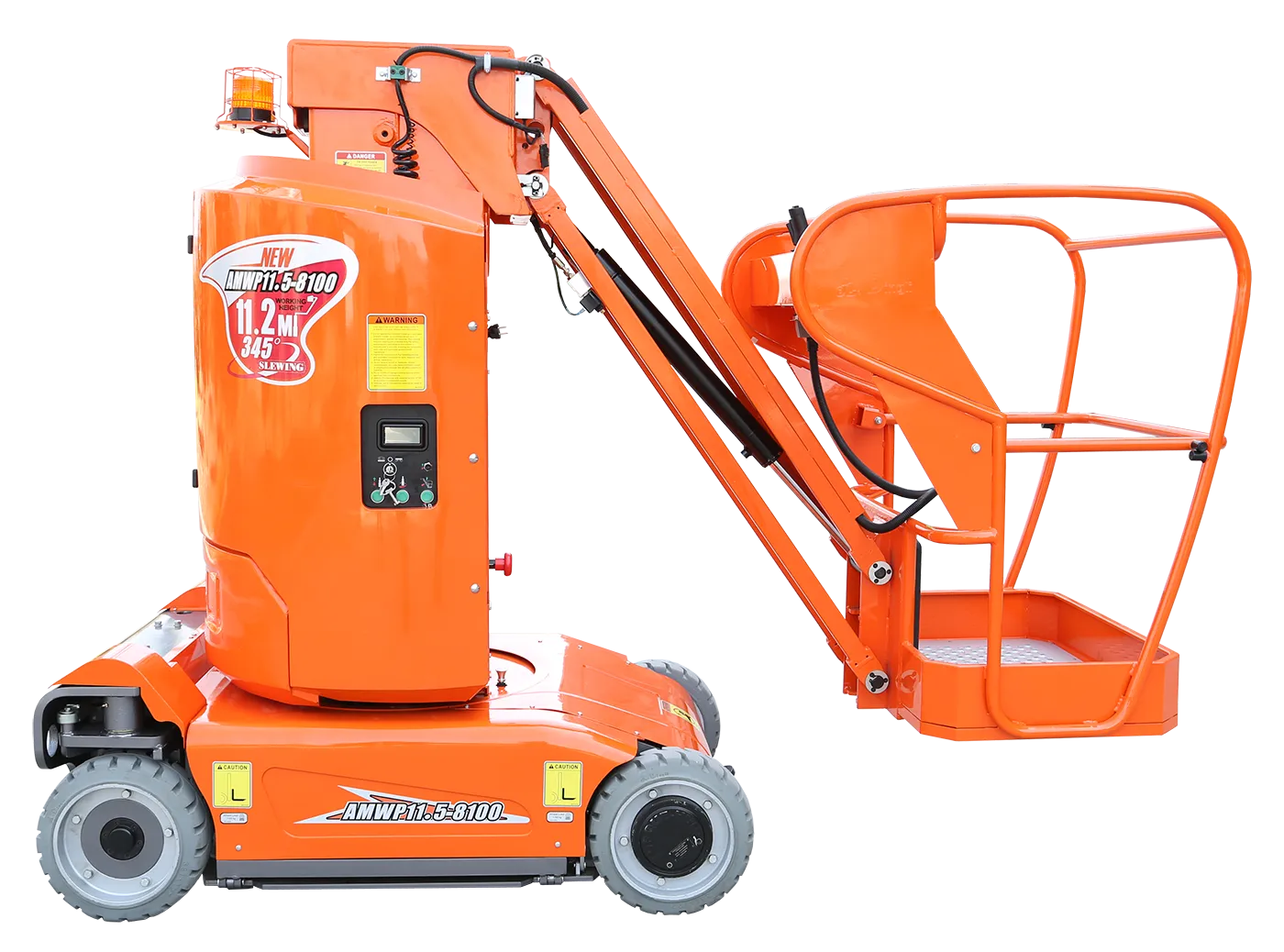

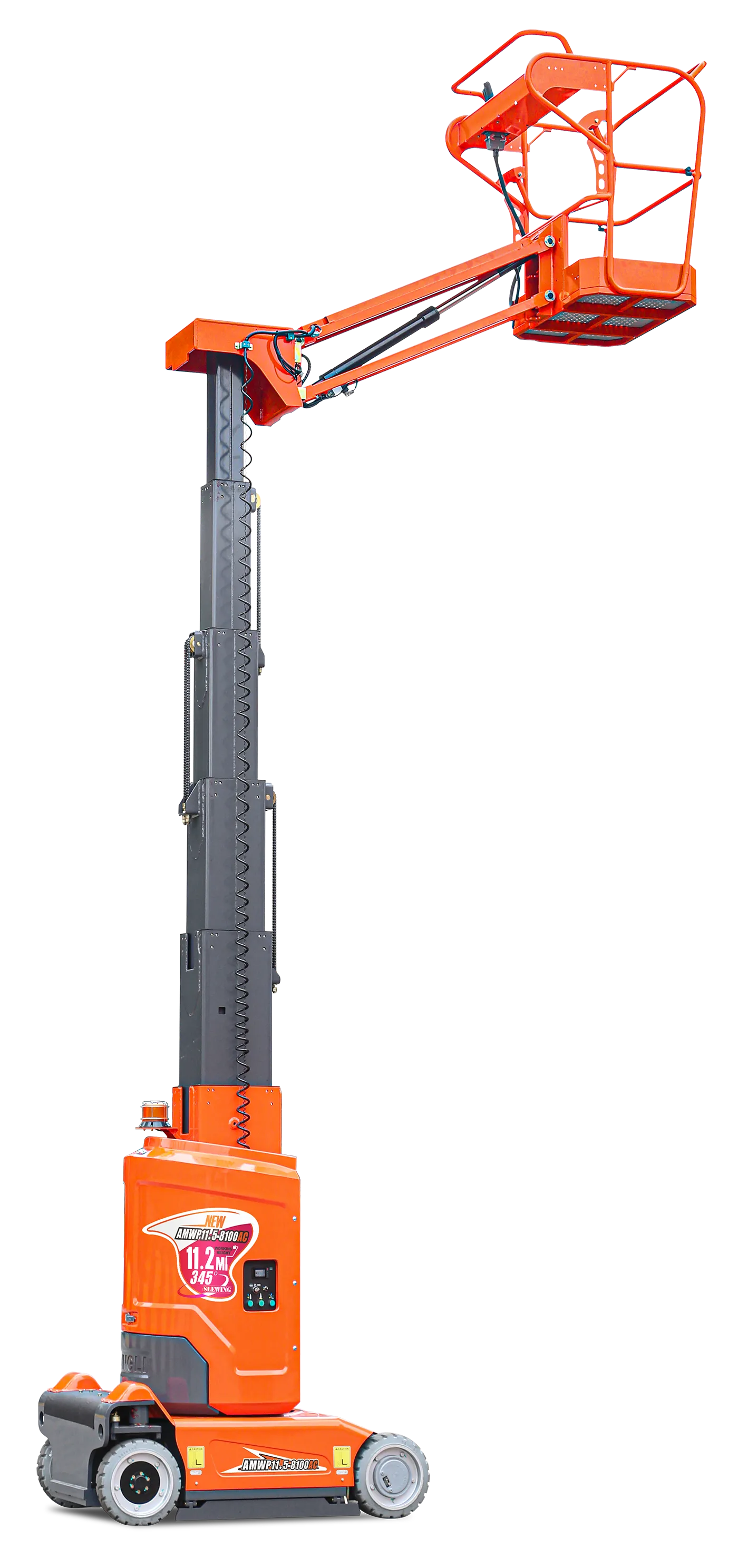

AMWP11.5-8100 Self-Propelled Vertical Mast
11.20m/36ft 9inmWorking Height
2Occupants
Description
Lightweight and drivable at full height, AMWP11.5-8100 is specially designed for narrow spaces like warehouses, supermarkets, hotels, and airports. Equipped with a 3-meter horizontal extension, this self-propelled vertical lift is flexible and covers more working areas with ease.
Key Features
- Light structure, flexible operations
- No noise, 0 emissions
- Cylinder holding value for enhanced safety
- Touchscreen for quick fault diagnosis and function setting
- Automatic pothole protection
- Equipped with a 24V/240Ah strong lithium battery pack with integrated charger
Specifications
Max. Working Height11.20m/36ft 9in
Max. Platform Height9.20m/30ft 2in
Max. Horizontal Reach3.00m
Up and Over Height7.89m
Overall Length2.53m/8ft 3in
Overall Width1.00m/3ft 3in
Overall Height1.99m/6ft 6in
Platform Size(Length×Width)0.62m×0.87m/2ft×2ft 10in
Ground Clearance(Stowed)0.07m/3ft 3in
Ground Clearance(Raised)0.019m/0.7in
Wheelbase1.22m/4ft
Turning Radius(Inside/Outside)0.23m/1.65m / 9in/5ft 5in
Tyresφ381×127mm / φ15in×5in
S.W.L200kg/440lb
Max. Occupants2
Gradeability25%
Max. Working Slope2.5°/2.5°
Turret Rotation345°
Jib Movement130°
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.5km/h / 0.31mph
Up/Down Speed42/38sec
Overall Weight2950kg/6503lb
Battery24V/240Ah
Charger24V/30A
Driving Motor24V/1.5KW
Lifting Motor24V/3.0kW
Power SourceElectric
