AMWP11.5-8200ACSelf-Propelled Vertical MastELECTRIC

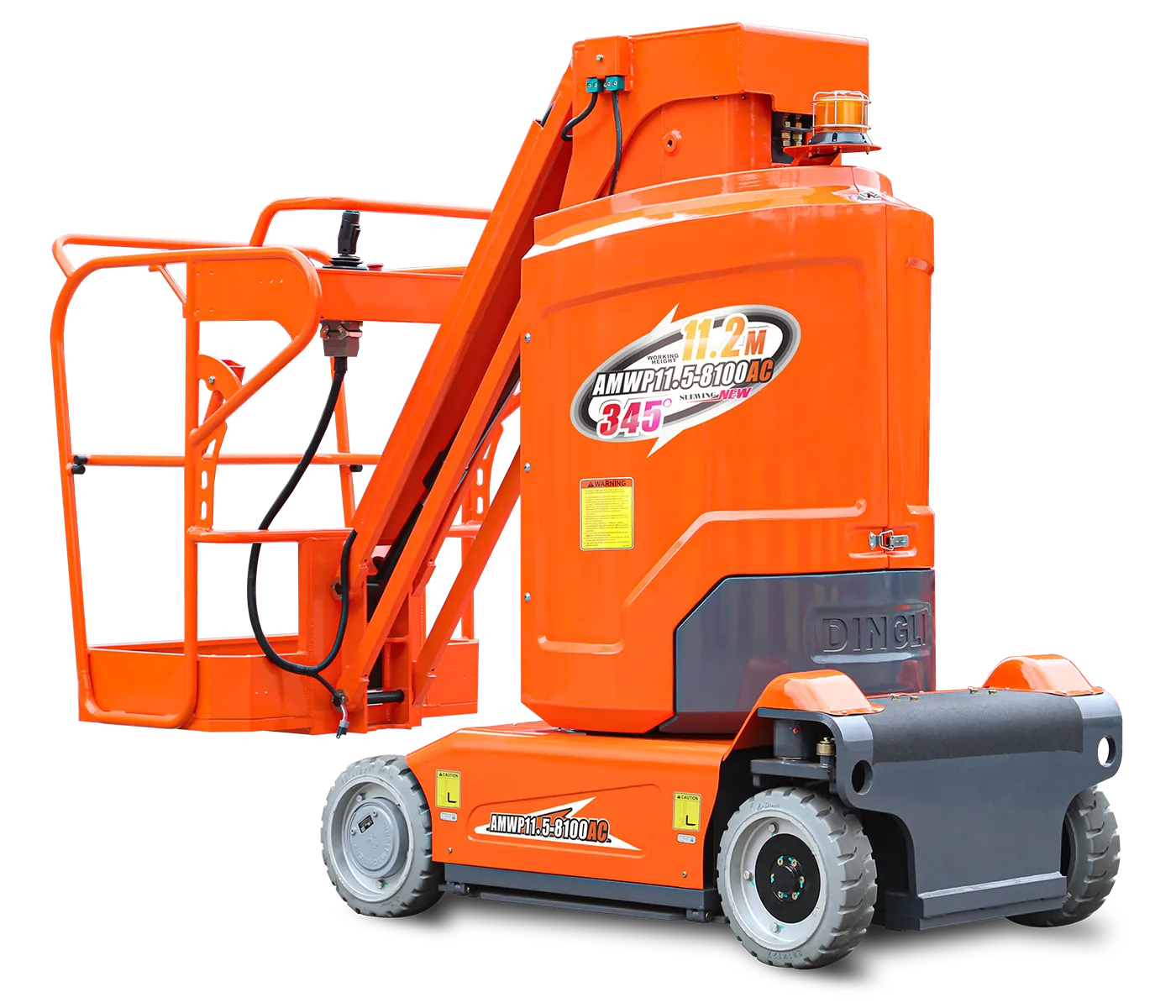

AMWP11.5-8200AC Self-Propelled Vertical Mast
₹ 22,79,970
+ 18% GST = ₹ 26,90,365 incl.
11.20m/36ft 9inmWorking Height
2/1Occupants
Description
Equipped with fully sealed AC system, lightweight and drivable at full height, AMWP11.5-8100AC is specially designed for narrow spaces like warehouses, supermarkets, hotels, and airports. Equipped with a 3-meter horizontal extension, this self-propelled vertical lift is flexible and covers more working areas with ease. With 3 meters horizontal extension, it allows large range of horizontal outreach.
Key Features
- Light structure, flexible operations
- No noise, 0 emissions
- Cylinder holding value for enhanced safety
- Waterproof & maintenance free
- Touchscreen for quick fault diagnosis and function setting
- Automatic pothole protection
- Equipped with a 24V/200Ah strong lithium battery pack with integrated charger
Specifications
Max. Working Height11.20m/36ft 9in
Max. Platform Height9.20m/30ft 2in
Overall Length2.62m/8ft 7in
Overall Width1.00m/3ft 3in
Overall Height1.99m/6ft 6in
Platform Size(Length×Width)0.69m×0.93m/2ft 3in×3ft 1in
Ground Clearance(Stowed)0.07m/3ft 3in
Ground Clearance(Raised)0.02m/0.7in
Wheelbase1.22m/4ft
Turning Radius(Inside/Outside)0m/1.8m / 0in/5ft 11in
Tyresφ381×127mm / φ15in×5in
S.W.L200kg/440lb
Max. Occupants2/1
Gradeability25%
Max. Working Slope2.5°/2.5°
Turret Rotation345°
Jib Movement130°
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.5km/h / 0.31mph
Up/Down Speed42/38sec
Overall Weight2970kg/6547lb
Battery24V/200Ah
Charger24VDC/30A
Driving Motor2x15VAC/0.87KW
Lifting Motor15VAC/3kW
Hydraulic Tank9L
Power SourceElectric
