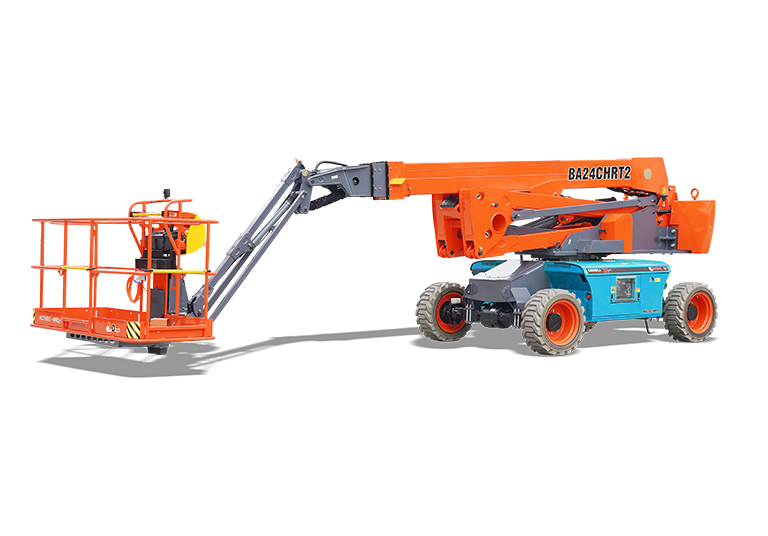

BA24CHRT2 Articulated Boom Lift
24.27m / 79ft 7inmWorking Height
2Occupants
Description
Below ground reachable, large range of horizontal outreach; Developed by DINGLI’s domestic R&D Center; Modular design horizontally & vertically, 85% of the components common in the full range; Equipped with integrated axle, four-wheel drive & Four-Wheel Steering; Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable; Driveable at full height with large load of 300kg; Suitable for standard container transport; Optionally equipped with 80V/280Ah high-capacity lithium battery packs. With a universal range extender, which charges the battery when there is no external power supply.
Key Features
- Below ground reachable, large range of horizontal outreach;
- Developed by DINGLI’s domestic R&D Center;
- Modular design horizontally & vertically, 85% of the components common in the full range;
- Equipped with integrated axle, four-wheel drive & Four-Wheel Steering;
- Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
- Driveable at full height with large load of 300kg;
- Suitable for standard container transport;
- Optionally equipped with 80V/280Ah high-capacity lithium battery packs. With a universal range extender, which charges the battery when there is no external power supply.
Specifications
Max. Working Height24.27m / 79ft 7in
Max. Platform Height22.27m / 73ft 1in
Max. Operating Range(+0.6m)15.29m / 50ft 2in
Max. Platform Range14.69m / 48ft 2in
Max. Up And Over Clearance8.10m / 26ft 7in
Max. Down Probing Depth3.74m / 12ft 3in
Flatbed Transport Dimensions (L×W×H)8.80m×2.50m×2.60m / 28ft 10in×8ft 2in×8ft 6in
Platform Size(Length×Width)2.44m×0.91m / 8ft×3ft
Turntable Tailswing0.85m / 2ft 9in
Ground Clearance0.28m / 11in
Wheelbase2.50m / 8ft 2in
Tyres315/55D20
S.W.L(Unrestricted/Restricted)300kg / 661lb
Max. Occupants2
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h / ≯3.7mph
Travel Speed(Raised)≯1.1km/h / ≯0.7mph
Max. Working Slope(X/Y)5°/5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle-45~75°
Turning Radius(Inside/Outside)-Two-Wheel Steering3.68m/5.54m / 12ft 1in/18ft 2in
Turning Radius(Inside/Outside)-Four-Wheel Steering-optional1.71m/2.98m / 5ft 7in/9ft 9in
Overall Weight(Lead-acid Battery)12000kg / 26455lb
Range Extended EngineKubota Z482/9.8kW
Diesel Tank110L / 29gal
Hydraulic Tank160L / 42gal
Emergency Power System12V
Lithium Battery80V/280Ah
Power SourceHybrid
SeriesM Series
