BT20CMRT2Telescopic Boom LiftHYBRID

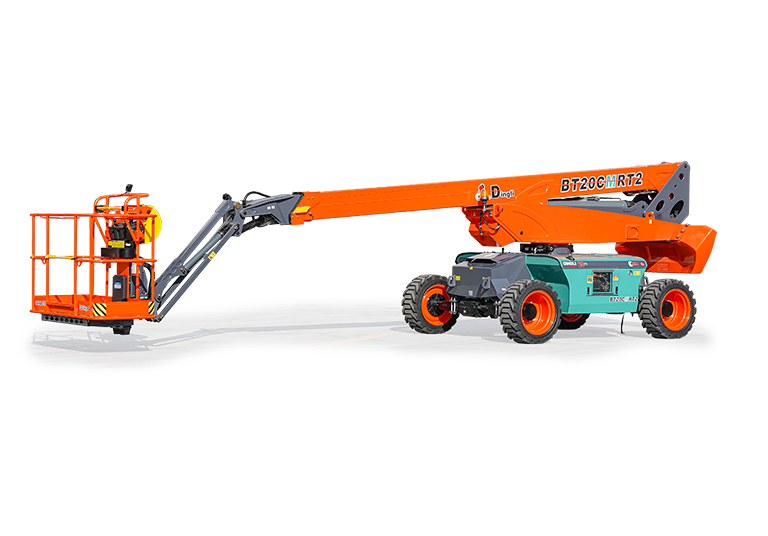

BT20CMRT2 Telescopic Boom Lift
20.23m / 66ft 4inmWorking Height
2Occupants
Description
Developed by DINGLI’s domestic R&D Center; Modular design horizontally & vertically, 85% of the components common in the full range, developed on the same platform; Equipped with integrated axle, four-wheel drive & two-wheel steering; Driveable at full height with large load of 320kg; Suitable for standard container transport; Equipped with 18.2kw low-power engine. Battery can be used as a starter battery Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output. Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Key Features
- Developed by DINGLI’s domestic R&D Center;
- Modular design horizontally & vertically, 85% of the components common in the full range, developed on the same platform;
- Equipped with integrated axle, four-wheel drive & two-wheel steering;
- Driveable at full height with large load of 320kg;
- Suitable for standard container transport;
- Equipped with 18.2kw low-power engine.
- Battery can be used as a starter battery
- Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.
- Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Specifications
Max. Working Height20.23m / 66ft 4in
Max. Platform Height18.23m / 60ft
Max. Operating Range(+0.6m)13.36m / 44ft
Max. Platform Range12.76m / 41ft 10in
Flatbed Transport Dimensions (L×W×H)7.63m×2.44m×2.68m / 25ft×8ft×9ft
Platform Size(Length×Width)1.83m×0.79m / 6ft×2ft 7in
Turntable Tailswing1.24m / 4ft 1in
Ground Clearance0.31m / 1ft
Wheelbase2.40m / 7ft 10in
Tyres315/55D20
S.W.L(Unrestricted/Restricted)320kg / 705lb
Max. Occupants2
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h / ≯3.7mph
Travel Speed(Raised)≯1.1km/h / ≯0.7mph
Max. Working Slope(X/Y)5°/5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)-Two-Wheel Steering3.00m/4.73m / 9ft 10in/15ft 6in
Turning Radius(Inside/Outside)-Four-Wheel Steering-optional1.31m/2.58m / 4ft 3in/8ft 6in
Overall Weight(Lead-acid Battery)8150kg / 17967lb
Diesel EngineKubota D1105/18.2kW
Diesel Tank115L / 30gal
Hydraulic Tank145L / 38gal
Emergency Power System12V
Lithium Battery80VDC/67.5Ah
Charger48VDC/60A
Power SourceMild-Hybrid
SeriesD Series
