BT22CERT2Telescopic Boom LiftELECTRIC

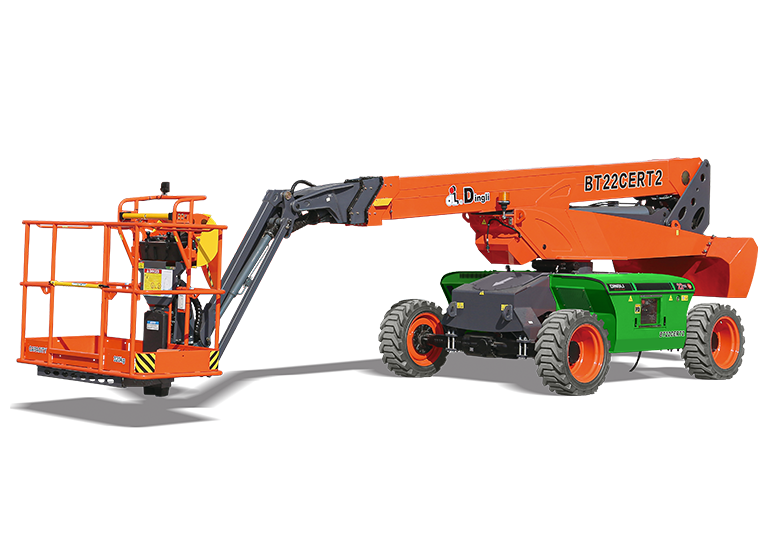

BT22CERT2 Telescopic Boom Lift
22.22m / 72ft 11inmWorking Height
2Occupants
Description
Developed by DINGLI’s domestic R&D Center; Modular design horizontally & vertically, 85% of the components common in the full range; Equipped with integrated axle, four-wheel drive & two-wheel steering; Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable; Driveable at full height with large load of 320kg; Suitable for standard container transport; Optionally equipped with 48V350Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Key Features
- Developed by DINGLI’s domestic R&D Center;
- Modular design horizontally & vertically, 85% of the components common in the full range;
- Equipped with integrated axle, four-wheel drive & two-wheel steering;
- Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
- Driveable at full height with large load of 320kg;
- Suitable for standard container transport;
- Optionally equipped with 48V350Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Specifications
Max. Working Height22.22m / 72ft 11in
Max. Platform Height20.22m / 66ft 4in
Max. Operating Range(+0.6m)15.41m / 50ft 7in
Max. Platform Range14.81m / 48ft 7in
Flatbed Transport Dimensions (L×W×H)6.75m×2.44m×2.70m / 22ft 2in×8ft×8ft 10in
Platform Size(Length×Width)1.83m×0.79m / 6ft×2ft 7in
Turntable Tailswing1.24m / 4ft 1in
Ground Clearance0.31m / 1ft
Wheelbase2.40m / 7ft 10in
Tyres315/55D20
S.W.L(Unrestricted/Restricted)320kg / 705lb
Max. Occupants2
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h / ≯3.7mph
Travel Speed(Raised)≯1.1km/h / ≯0.7mph
Max. Working Slope(X/Y)5°/5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)-Two-Wheel Steering3.00m/4.73m / 9ft 10in/15ft 6in
Turning Radius(Inside/Outside)-Four-Wheel Steering-optional1.31m/2.58m / 4ft 3in/8ft 6in
Overall Weight(Lead-acid Battery)9750kg / 21495lb
Overall Weight(Lithium Battery)-optional9150kg / 20172lb
Hydraulic Tank145L / 38gal
Emergency Power System12V
Lead-acid Battery48V/450Ah
Lithium Battery48V/420Ah
Charger48VDC 60A
Driving Motor34VAC/9kW
Pump Motor34VAC/13kW
Power SourceElectric
SeriesD Series
