BT24CERT2Telescopic Boom LiftELECTRIC

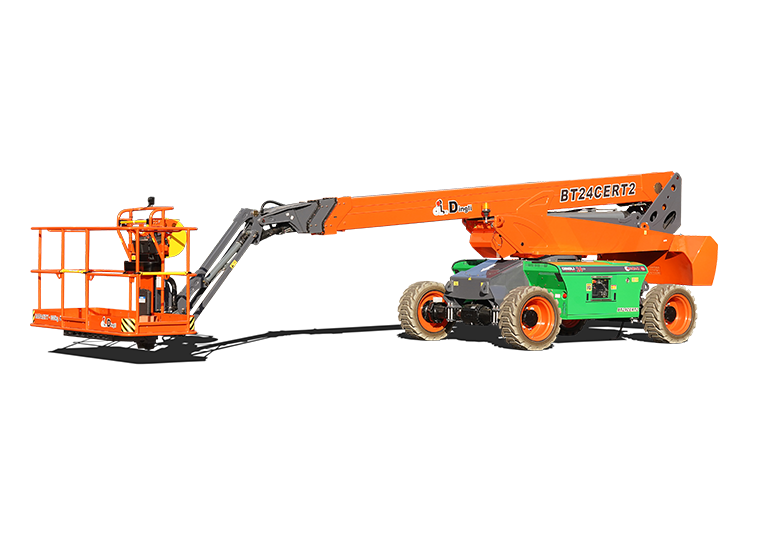

BT24CERT2 Telescopic Boom Lift
24.20m / 79ft 5inmWorking Height
2Occupants
Description
Developed by DINGLI’s domestic R&D Center; Modular design horizontally & vertically, 85% of the components common in the full range; Equipped with integrated axle, four-wheel drive & Four-Wheel Steering; Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable; Driveable at full height with large load of 300kg; Suitable for standard container transport; Optionally equipped with 80V/320Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Key Features
- Developed by DINGLI’s domestic R&D Center;
- Modular design horizontally & vertically, 85% of the components common in the full range;
- Equipped with integrated axle, four-wheel drive & Four-Wheel Steering;
- Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
- Driveable at full height with large load of 300kg;
- Suitable for standard container transport;
- Optionally equipped with 80V/320Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Specifications
Max. Working Height24.20m / 79ft 5in
Max. Platform Height22.20m / 72ft 10in
Max. Operating Range(+0.6m)17.64m / 57ft 10in
Max. Platform Range17.04m / 55ft 11in
Flatbed Transport Dimensions (L×W×H)9.36m×2.50m×2.46m / 30ft 8in×8ft 2in×8ft 1in
Platform Size(Length×Width)2.44m×0.91m / 8ft×3ft
Turntable Tailswing1.21m / 4ft
Ground Clearance0.28m / 11in
Wheelbase2.50m / 8ft 2in
Tyres315/55D20
S.W.L(Unrestricted/Restricted)300kg / 661lb
Max. Occupants2
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h / ≯3.7mph
Travel Speed(Raised)≯1.1km/h / ≯0.7mph
Max. Working Slope(X/Y)5°/5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle-5.5~75°
Turning Radius(Inside/Outside)-Two-Wheel Steering3.68m/5.54m / 12ft 1in/18ft 2in
Turning Radius(Inside/Outside)-Four-Wheel Steering-optional1.71m/2.98m / 5ft 7in/9ft 9in
Overall Weight(Lead-acid Battery)12000kg / 26455lb
Hydraulic Tank160L / 42gal
Emergency Power System12V
Lithium Battery80V/320Ah
Charger48VDC/60A
Driving Motor80VDC/30kW
Pump Motor80VDC/26kW
Power SourceElectric
SeriesM Series
