GTWY11-1300Self-Propelled Vertical MastELECTRIC

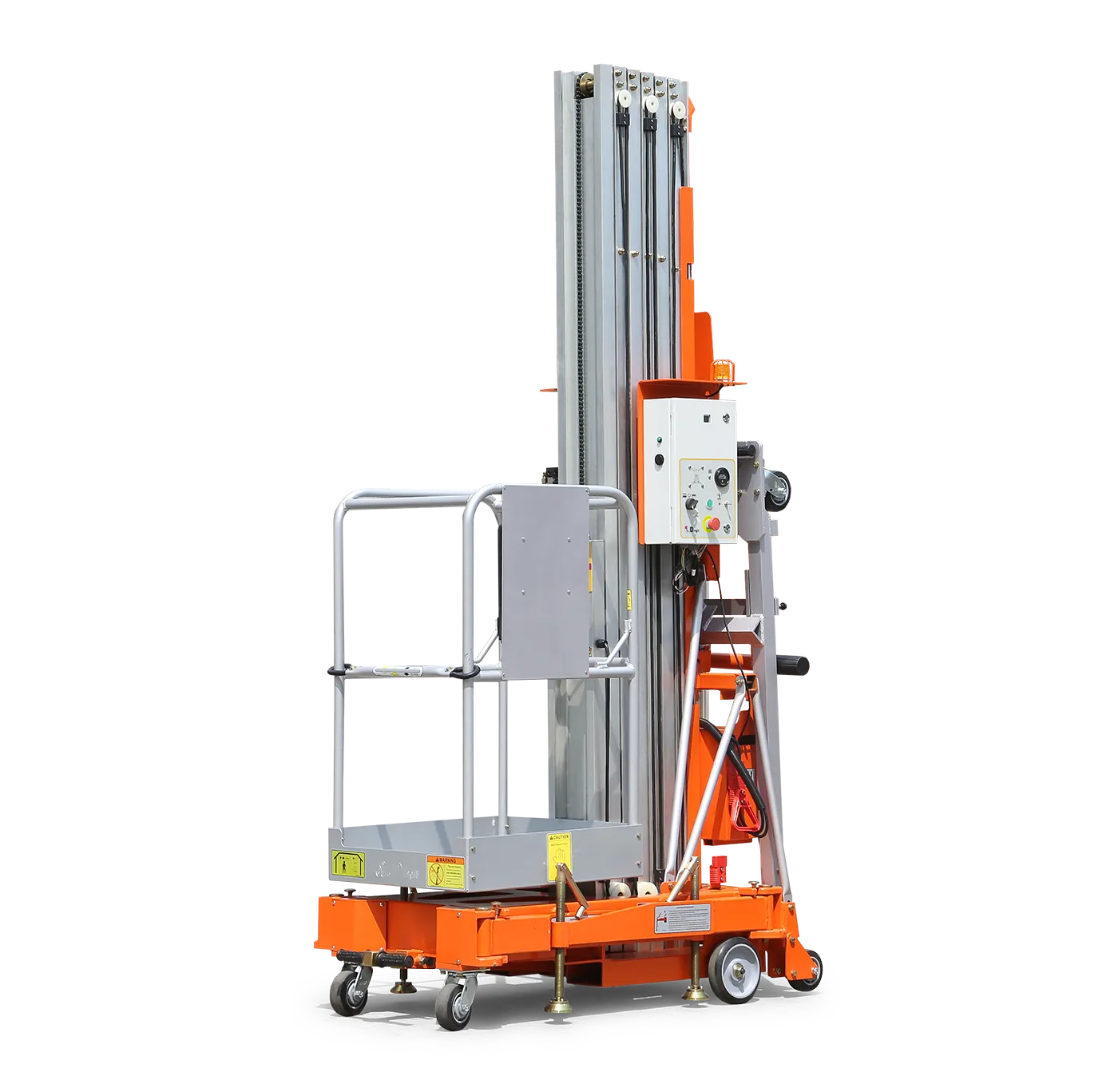

GTWY11-1300 Self-Propelled Vertical Mast
₹ 4,44,703
+ 18% GST = ₹ 5,24,750 incl.
11.00mmWorking Height
1Occupants
Description
Versatile and designed to seamlessly navigate narrow spaces like warehouses, supermarkets, hotels, and airports, GTWY11-1300 enhances operational efficiency. Equipped with advanced safety features, this mobile vertical lift is suitable for construction, maintenance, and other heavy duty tasks.
Key Features
- Outrigger levelling system with limit switch
- Equipped with Tubing explosion-proof system
- Overall width is 0.75m
- Cylinder holding value for enhanced safety
- AC power to platform capabilities
- Charging protection system
- Equipped with 12V/85Ah high power lithium battery with charger
Specifications
Max. Working Height11.00m
Max. Platform Height9.00m
Overall Length(Stowed)1.34m
Overall Width0.75m
Overall Height(Stowed)1.99m
Outrigger Footprint(Length /Width )1.70m/1.86m
Platform Size(Length×Width)0.70mx0.60m
Ground Clearance0.055m
Tyres(Front)0.20m
Tyres(Back)0.13m
S.W.L150kg
Max. Occupants1
Up/Down Speed34/22sec
Weight-AC450kg
Weight-DC470kg
Battery12V/85Ah
Charger12V/15A
Lifting Motor-AC220VAC/1.5kW
Lifting Motor-DC12VDC/1.5kW
Power SourceElectric
