GTWY11-2100Self-Propelled Vertical MastELECTRIC

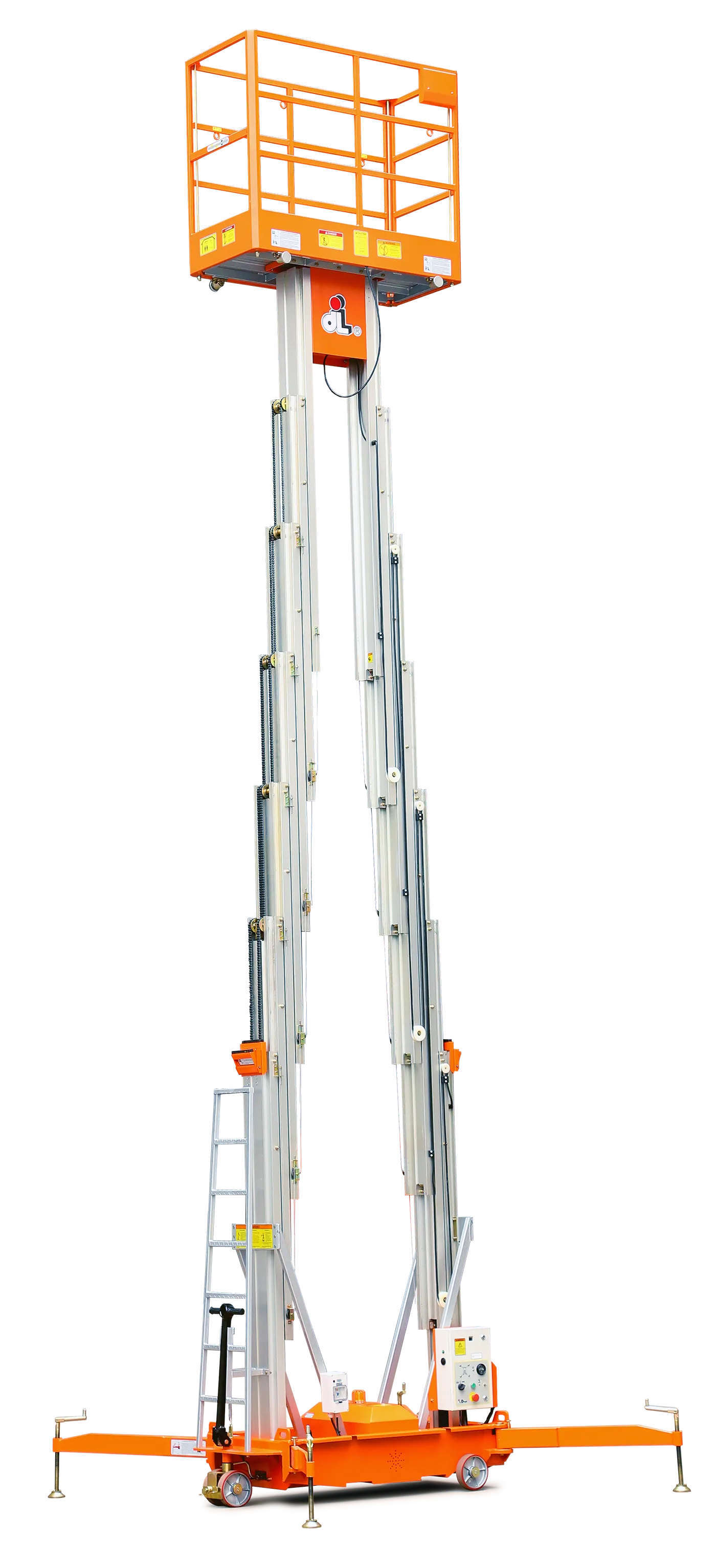

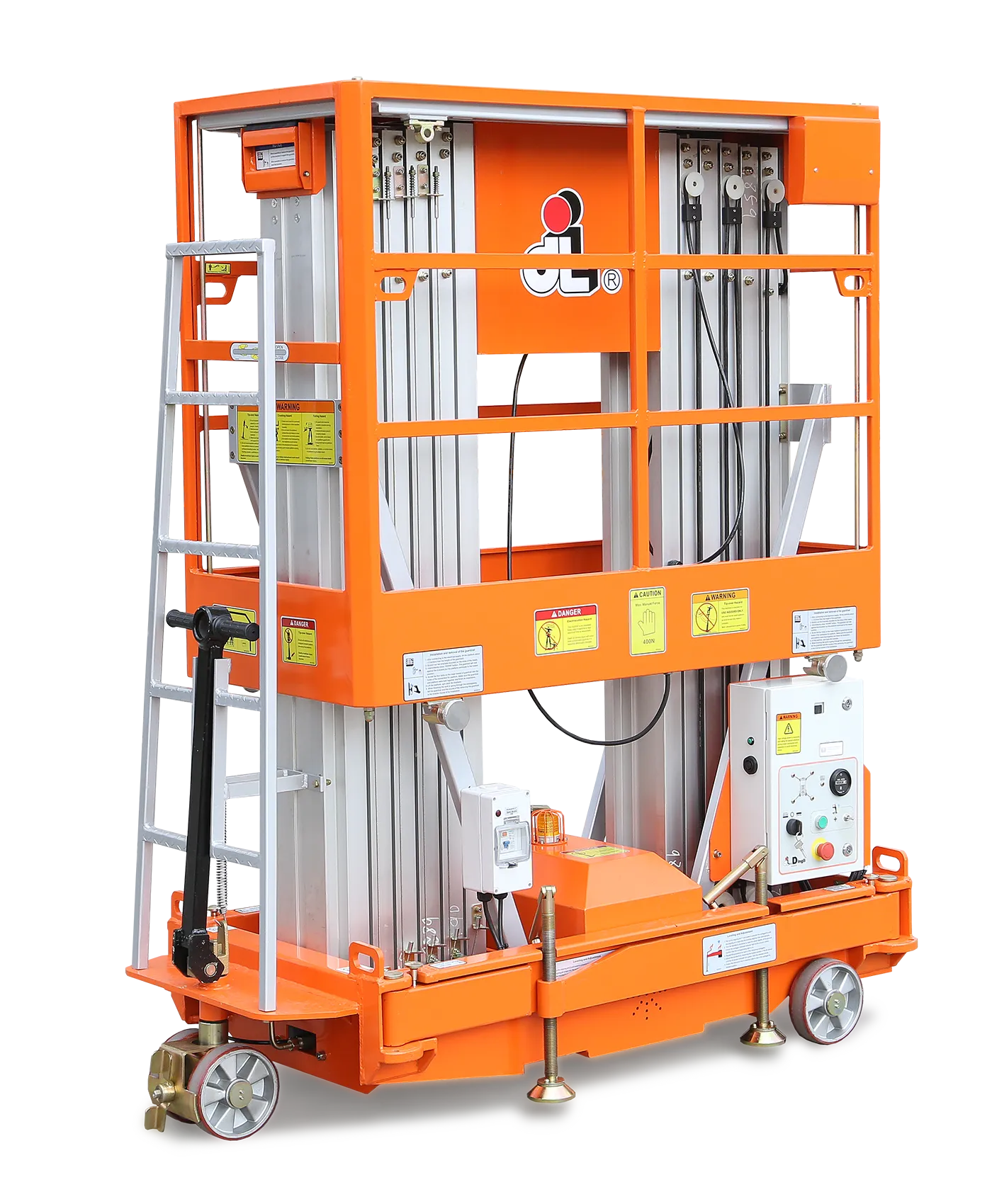

GTWY11-2100 Self-Propelled Vertical Mast
₹ 6,63,208
+ 18% GST = ₹ 7,82,585 incl.
11.00mmWorking Height
2Occupants
Description
Equipped with self-locking gates and enhanced safety features, GTWY11-2100 is a mobile vertical lift specially designed for narrow spaces like warehouses, supermarkets, hotels, and airports. Sleek and robust, this mobile vertical lift is suitable for construction, maintenance, and other heavy duty tasks.
Key Features
- Outrigger levelling system with limit switch
- Equipped with Tubing explosion-proof system
- Overall width is 0.82m
- Cylinder holding value for enhanced safety
- AC power to platform capabilities
- Charging protection system
- Equipped with 2 X 12V/85Ah high power lithium batteries with integrated charger
Specifications
Max. Working Height11.00m
Max. Platform Height9.00m
Overall Length(Stowed)1.70m
Overall Width(Stowed)0.82m
Overall Height(Stowed)1.99m
Outrigger Footprint(Length /Width )2.31mx2.39m
Platform Size(Length×Width)1.40mx0.65m
Ground Clearance0.055m
BackSize0.18m
FrontSize0.18m
S.W.L300kg
Max. Occupants2
Up/Down Speed62/40sec
Weight-AC780kg
Weight-DC840kg
Battery2x12V/85Ah
Charger12V/15A
Lifting Motor-AC220VAC/1.5kW
Lifting Motor-DC12VDC/2.5kW
Power SourceElectric
