GTWY9.5-1300Push Type Mobile Lift

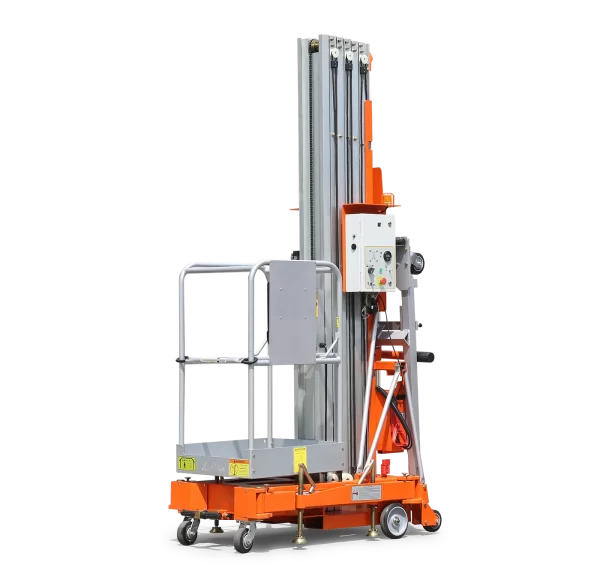

GTWY9.5-1300 Push Type Mobile Lift
₹ 4,17,281
+ 18% GST = ₹ 4,92,392 incl.
9.50mmWorking Height
1Occupants
Description
Engineered to seamlessly navigate narrow spaces, GTWY9.5-1300 is a mobile vertical lift specially designed for constrained work environments like warehouses, supermarkets, hotels, and airports. Compact and equipped with advanced safety features, this mobile vertical lift is suitable for construction, maintenance, and other heavy duty tasks.
Specifications
Max. Working Height9.50m
Max. Platform Height7.50m
Overall Length(Stowed)1.30m
Overall Width0.75m
Overall Height(Stowed)1.99m
Outrigger Footprint(LengthxWidth )1.70mx1.86m
Platform Size(Length×Width)0.70mx0.60m
Ground Clearance0.055m
Tyres(Front)0.20m
Tyres(Back)0.13m
S.W.L150kg
Max. Occupants1
Up/Down Speed28/18sec
Weight-AC430kg
Weight-DC453kg
Battery12V/85Ah
Charger12V/15A
Lifting Motor-AC220VAC/1.5kW
Lifting Motor-DC12VDC/1.5kW
Power SourceElectric
