JCPT1208ACElectric Slab Scissor LiftELECTRIC

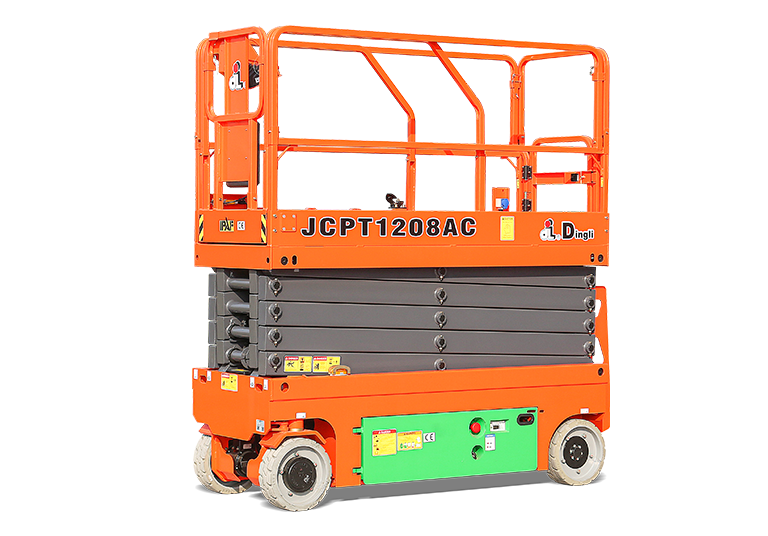

JCPT1208AC Electric Slab Scissor Lift
12.00m / 39ft 4inmWorking Height
2/1Occupants
Description
Maximum working height: 12m (indoor) / 9.2m (outdoor) Maximum load capacity: 250kg Drive at full height Good passability with machine width of 0.83m and machine height (folding the guardrails) of 2.05m Equipped with a 24V240Ah power battery to meet long endurance Equipped with a fully enclosed AC system and dual AC for lifting and driving, offering the advantages of waterproofing, safety, high work efficiency and maintenance-free
Key Features
- Maximum working height: 12m (indoor) / 9.2m (outdoor)
- Maximum load capacity: 250kg
- Drive at full height
- Good passability with machine width of 0.83m and machine height (folding the guardrails) of 2.05m
- Equipped with a 24V240Ah power battery to meet long endurance
- Equipped with a fully enclosed AC system and dual AC for lifting and driving, offering the advantages of waterproofing, safety, high work efficiency and maintenance-free
Specifications
Max. Working Height12.00m / 39ft 4in
Max. Platform Height10.00m / 32ft 10in
Overall Length(With Ladder)2.48m / 8ft 2in
Overall Width0.83m / 2ft 9in
Overall Height(Rails Up)2.51m / 8ft 3in
Overall Height(Rails Down)2.05m / 6ft 9in
Platform Size(Length×Width)2.27m×0.81m / 7ft 5in×2ft 8in
Platform Extension Size0.90m / 2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m / 6ft 2in
Turning Radius(Inside/Outside)0m/2.10m / 0in/6ft 11in
Tyresφ381×127mm
Safe Working Load250kg / 551lb
S.W.L On Extension113kg / 249lb
Max. Occupants(Indoor/Outdoor)2/1
Gradeability0.25
Travel Speed(Stowed)≯5.0km/h / ≯3.10mph
Travel Speed(Raised)≯0.8km/h / ≯0.50mph
Max. Working Slope(X/Y)1.5°/3°
Up/Down Speed51/42sec
Overall Weight(Lead-acid Battery)3150kg / 6944lb
Hydraulic Tank20L / 5.3gal
Lead-Acid Maintenance-Free Battery24V/240Ah
Charger24V/30A
Driving Motor2×15VAC/0.87kW
Lifting Motor16VAC/3.5kW
Power SourceElectric
