JCPT1523DCL2Electric Slab Scissor LiftELECTRIC

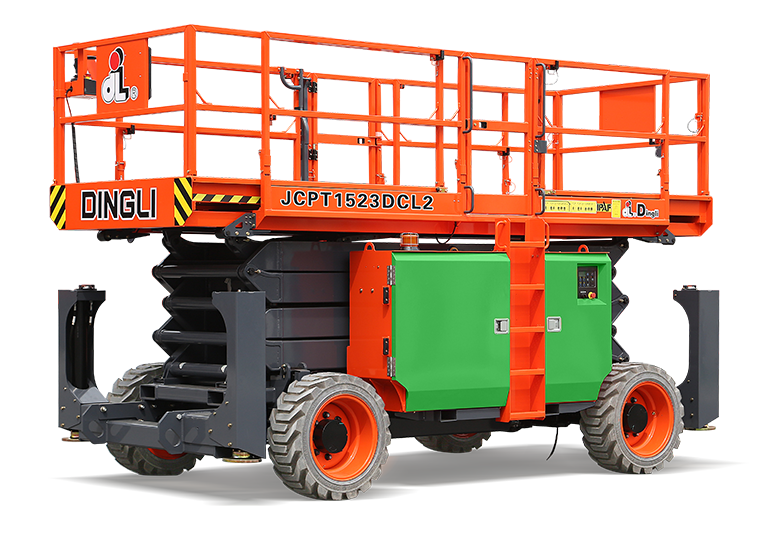

JCPT1523DCL2 Electric Slab Scissor Lift
15.00m / 49ft 3inmWorking Height
7/7Occupants
Description
Equipped with integrated axle, they meet the requirements of 4WD&2WS, offer flexible operation and strong rough-terrain performance. With maximum load of 680kg and maximum working height of 15m, the large platform enables more than one people to work at the same time. They feature 4.88m*1.83m working platform and the two-way extension deck lengths are 1.43m and 1.13m respectively, which can be stopped at any point, making the operation more convenient. With configuration of one key leveling function, automatic leveling, ensuring the machine much safer and more stable. The machine dimension is 4.88m*2.33m*2.26m in length, width and height respectively, which makes it convenient for transportation and suitable for container size.
Key Features
- Equipped with integrated axle, they meet the requirements of 4WD&2WS, offer flexible operation and strong rough-terrain performance.
- With maximum load of 680kg and maximum working height of 15m, the large platform enables more than one people to work at the same time.
- They feature 4.88m*1.83m working platform and the two-way extension deck lengths are 1.43m and 1.13m respectively, which can be stopped at any point, making the operation more convenient.
- With configuration of one key leveling function, automatic leveling, ensuring the machine much safer and more stable.
- The machine dimension is 4.88m*2.33m*2.26m in length, width and height respectively, which makes it convenient for transportation and suitable for container size.
Specifications
Max. Working Height15.00m / 49ft 3in
Max. Platform Height13.00m / 42ft 8in
Overall Length(Without Outriggers)3.98m / 13ft 1in
Overall Length(With Outriggers)4.88m / 16ft
Overall Width2.33m / 7ft 8in
Overall Height(Rails Up)3.02m / 9ft 11in
Overall Height(Rails Down)2.26m / 7ft 5in
Platform Size(Length×Width)4.88m×1.83m / 16ft×6ft
Platform Extension Size1.43m/1.13m / 4ft 8in/3ft 10in
Ground Clearance(Stowed/Raised)0.30m / 1ft
Wheelbase2.86m / 9ft 5in
Turning Radius(Inside/Outside)2.70m/5.50m / 8ft 10in/18ft
Tyres315/55/D20
Safe Working Load680kg / 1499lb
S.W.L On Extension227kg / 500lb
Max. Occupants(Indoor/Outdoor)7/7
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h / ≯3.73mph
Travel Speed(Raised)≯1.0km/h / ≯0.62mph
Max. Working Slope(X/Y)2°/3°
Up/Down Speed70/62sec
Overall Weight(Lead-acid Battery)8150kg / 17968lb
Overall Weight(Lithium Battery)8080kg / 17813lb
Hydraulic Tank110L / 29gal
Lead-Acid Maintenance-Free Battery48V/420Ah
Lithium Battery48V/450Ah
Charger48V/60A
Driving Motor32VAC/9kW
Lifting Motor32VAC/15kW
Power SourceElectric
