JCPT1523RTBRough Terrain Scissor LiftDIESEL

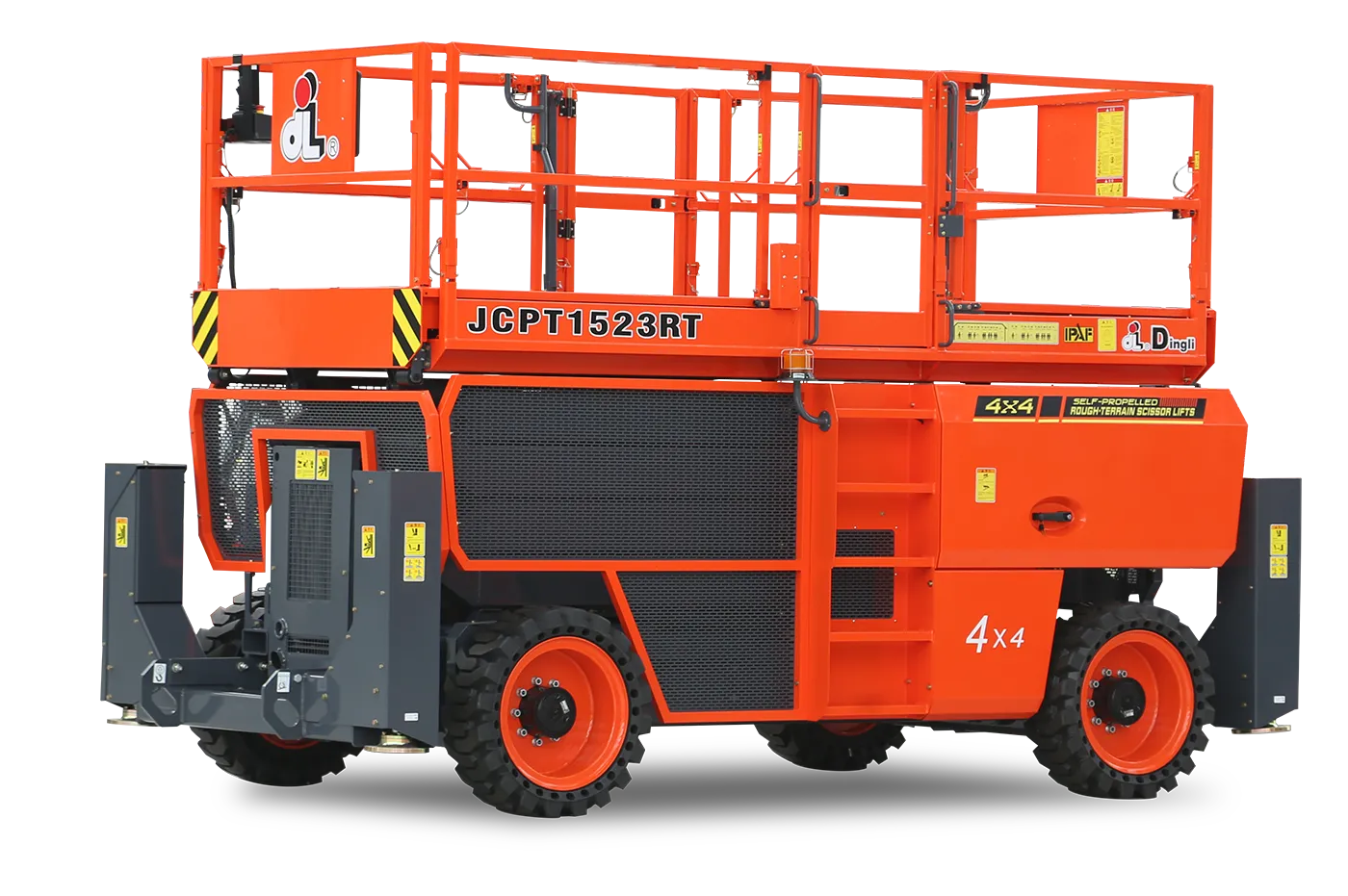

JCPT1523RTB Rough Terrain Scissor Lift
₹ 46,90,224
+ 18% GST = ₹ 55,34,464 incl.
15.00m/49ft 3inmWorking Height
7Occupants
Description
Drivable at full height with a large load of 680 kg, JCPT1523RTB is a strong power scissor lift offering reliable rough terrain performance. This flexible and robust scissor lift is equipped with a large dual-way extension platform, making it easy for multiple people to simultaneously work on varied tasks.
Key Features
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- 36.8kW high power engine
- Dual-way extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height15.00m/49ft 3in
Max. Platform Height13.00m/42ft 8in
Overall Length(Without Outriggers)3.98m/13ft 1in
Overall Length(With Outriggers)4.88m/16ft
Overall Width2.27m/7ft 5in
Overall Height(Rails Up)2.98m/9ft 9in
Overall Height(Rails Down)2.28m/7ft 6in
Platform Size(Length×Width)3.98m×1.83m/13ft 1in×6ft
Platform Extension Size1.43m/1.16m / 4ft 8in/3ft 10in
Ground Clearance0.30m/1ft
Wheelbase2.86m/9ft 5in
Turning Radius(Inside/Outside)2.35m/5.20m / 7ft 9in/17ft 1in
Tyres33×12-20
S.W.L680kg/1499lb
S.W.L On Extension227kg/500lb
Max. Occupants7
Gradeability50%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed70/52sec
Overall Weight(Without Outriggers)7000kg/15432lb
Overall Weight(With Outriggers)7900kg/17416lb
Diesel EngineKubota V2403/36.8kW
Diesel Tank100L/26gal 4pt
Hydraulic Tank130L/34gal3pt
Power SourceEngine
