JCPT1614/2HAElectric Slab Scissor LiftELECTRIC

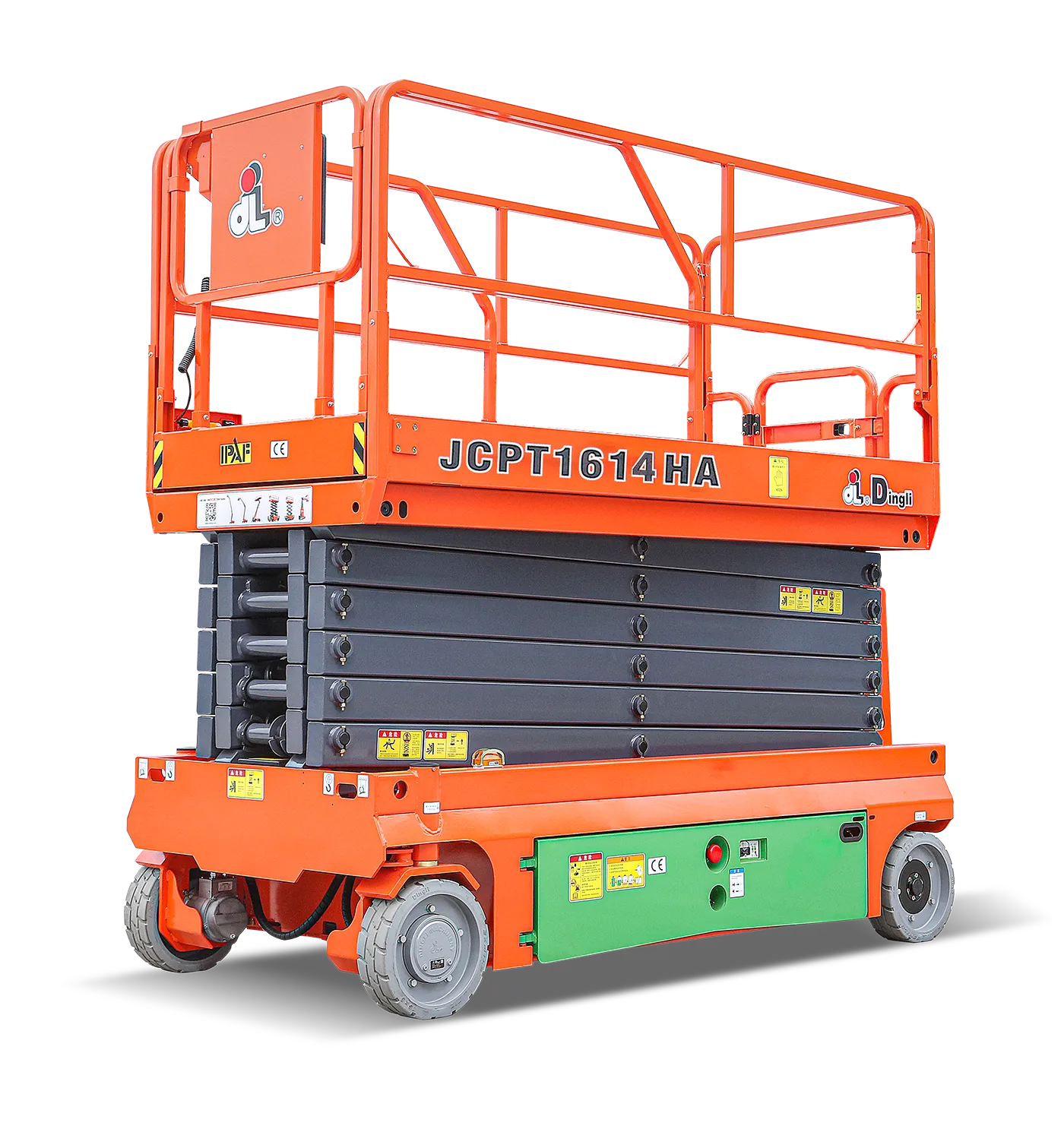

JCPT1614/2HA Electric Slab Scissor Lift
15.70m/51ft 6inmWorking Height
2/0Occupants
Description
Maintenance-free system Overall width is 1.39m Automatic pothole protection system Unidirectional extension platform for easy maneuvering and access to the operational point. Automatic display of fault code to reduce downtime Equipped with 24V/240Ah high-capacity battery pack and a hydraulic tank
Key Features
- Maintenance-free system
- Overall width is 1.39m
- Automatic pothole protection system
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/240Ah high-capacity battery pack and a hydraulic tank
Specifications
Max. Working Height15.70m/51ft 6in
Max. Platform Height13.70m/44ft 11in
Overall Length(With Ladder)2.84m/9ft 4in
Overall Width1.39m/4ft 7in
Overall Height(Rails Up)2.62m/8ft 7in
Overall Height(Rails Down)2.09m/6ft 10in
Platform Size(Length×Width)2.64m×1.12m/8ft 8in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase2.22m/7ft 3in
Turning Radius(Inside/Outside)0m/2.70m / 0in/8ft 10in
Tyresφ381×127mm
S.W.L250kg/551lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed72/67sec
Overall Weight(Lead-acid Battery)3440kg/7583lb
Overall Weight(Lithium Battery)3350kg/7385lb
Hydraulic Tank20L/5gal 3pt
Battery24V/240Ah
Charger24V/30A
Lifting Motor15VAC/3.0kW
Power SourceHydraulic
