JCPT1823MRT2Electric Slab Scissor LiftELECTRIC

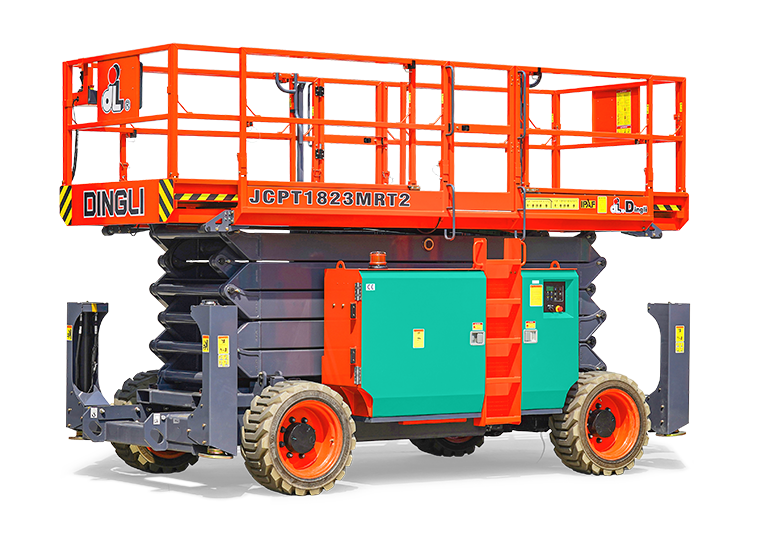

JCPT1823MRT2 Electric Slab Scissor Lift
18.00m / 59ft 1inmWorking Height
4/4Occupants
Description
Driveable at full height under large load of 680kg Four-wheel drive & two-wheel steering, great rough-terrain performance, automatic leveling Dual-way extension large deck that can be stopped at any point Equipped with 18.2kw low-power engine Battery can be used as a starter battery Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Key Features
- Driveable at full height under large load of 680kg
- Four-wheel drive & two-wheel steering, great rough-terrain performance, automatic leveling
- Dual-way extension large deck that can be stopped at any point
- Equipped with 18.2kw low-power engine
- Battery can be used as a starter battery
- Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output
- Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Specifications
Max. Working Height18.00m / 59ft 1in
Max. Platform Height16.00m / 52ft 6in
Overall Length(With Outriggers)4.88m / 16ft
Overall Width2.33m / 7ft 8in
Overall Height(Rails Up)3.23m / 10ft 7in
Overall Height(Rails Down)2.47m / 8ft 1in
Platform Size(Length×Width)4.88m×1.83m / 16ft×6ft
Platform Extension Size1.43m/1.13m / 4ft 8in/3ft 8in
Ground Clearance(Stowed/Raised)0.30m / 1ft
Wheelbase2.86m / 9ft 5in
Turning Radius(Inside/Outside)2.70m/5.50m / 8ft 10in/18ft
Tyres315/55/D20
Safe Working Load680kg / 1499lb
S.W.L On Extension227kg / 500lb
Max. Occupants(Indoor/Outdoor)4/4
Gradeability0.4
Travel Speed(Stowed)≯6.0km/h/≯3.73mph
Travel Speed(Raised)(<11m/≥11m)≯1.0km/h/≯0.6km/h / ≯0.62mph/≯0.37mph
Max. Working Slope(X/Y)(<11m/≥11m)2°/3° / 1.5°/3°
Up/Down Speed78/74sec
Overall Weight(Lithium Battery)8840kg / 19489lb
Diesel EngineKubota D1105/18.2kW
Diesel Tank80L / 21gal
Hydraulic Tank120L / 31gal
Lithium Battery80VDC/67.5Ah
Motor80VDC/10KW
Power SourceEngine
