JCPT1823RTBElectric Slab Scissor LiftELECTRIC

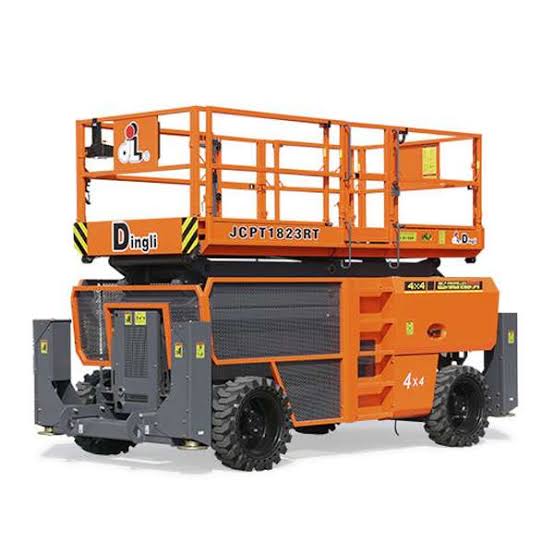

JCPT1823RTB Electric Slab Scissor Lift
18.00mmWorking Height
4Occupants
Description
Proportional Joystick Controls Self-Locking Gates Dual Slide-Out Platform Extension Deck Four-Wheel Drive Two-Wheel Steering Automatic Braking System Self-Weight Lowering System Tubing Explosion-Proof System Onboard Fault Diagnostic System Tilt Alarm Motion Alarm Horn Hour Meter Hydraulic Oil Cooling System Flashing LED Beacon Foldable Guard Rails Drive Enable Manual Brake Release Lanyard Attachment Point Standard Transport Forklift Pockets Tie-Down And Lifting Points Automatic Leveling Hydraulic Outriggers Anti-Restart Engine Protection Emergency Pump Emergency Stop Button Platform Load Sense System Oscillating Axle Chassis
Key Features
- Proportional Joystick Controls
- Self-Locking Gates
- Dual Slide-Out Platform Extension Deck
- Four-Wheel Drive
- Two-Wheel Steering
- Automatic Braking System
- Self-Weight Lowering System
- Tubing Explosion-Proof System
- Onboard Fault Diagnostic System
- Tilt Alarm
- Motion Alarm
- Horn
- Hour Meter
- Hydraulic Oil Cooling System
- Flashing LED Beacon
- Foldable Guard Rails
- Drive Enable
- Manual Brake Release
- Lanyard Attachment Point
- Standard Transport Forklift Pockets
- Tie-Down And Lifting Points
- Automatic Leveling Hydraulic Outriggers
- Anti-Restart Engine Protection
- Emergency Pump
- Emergency Stop Button
- Platform Load Sense System
- Oscillating Axle Chassis
Specifications
Max. Working Height18.00m
Max. Platform Height16.00m
Overall Length4.88m
Overall Width2.27m
Overall Height(Rails Up)3.19m
Overall Height(Rails Down)2.49m
Platform Size(Length×Width)3.98m×1.83m
Platform Extension Size G /1.43m/1.16m
Ground Clearance0.30m
Wheelbase2.86m
Turning Radius(Inside/Outside)2.35m/5.20m
Tyres33×12-20
S.W.L680kg
S.W.L On Extension227kg
Max. Occupants (Indoor/Outdoor)4
Gradeability40%
Travel Speed(Stowed)6.0km/h
Travel Speed(Raised)1.1km/h
Up/Down Speed75/74sec
Overall Weight8590kg
Diesel Engine36.8kW/2700rpm
Diesel Tank100L
Hydraulic Tank130L
Power SourceEngine
