JCPT1823RTLRough Terrain Scissor LiftDIESEL

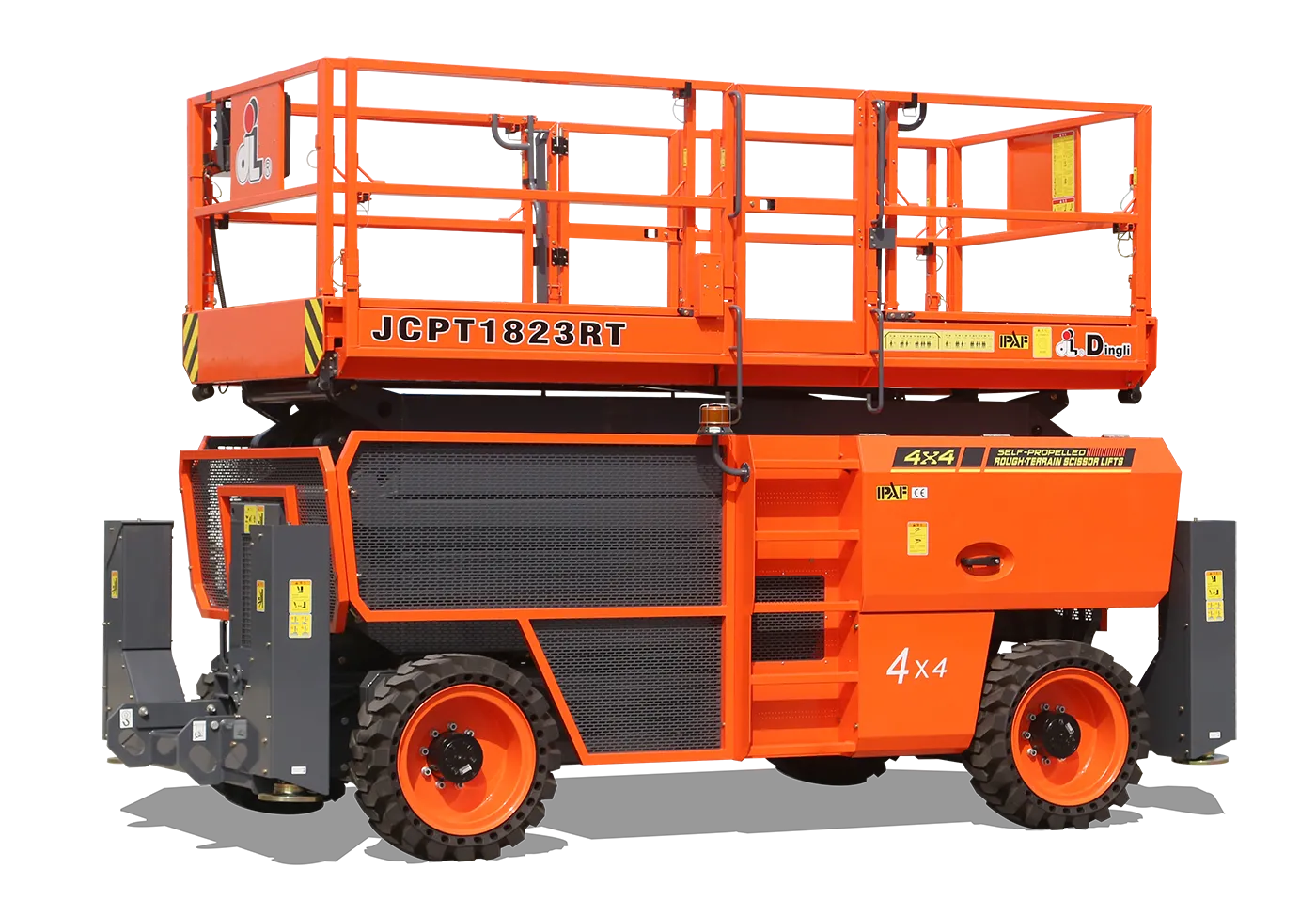

JCPT1823RTL Rough Terrain Scissor Lift
18.00m/59ft 1inmWorking Height
4Occupants
Description
Equipped with integrated axles, JCPT1823RTL is an energy saving scissor lift offering strong rough terrain performance. Flexible and robust, this large scissor lift is drivable at full height with a large load of 680 kg, and is equipped with a large platform to enable multiple people to simultaneously work on varied tasks.
Key Features
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- Energy saving 18.2kw low power engine
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height18.00m/59ft 1in
Max. Platform Height16.00m/52ft 6in
Overall Length4.88m/16ft
Overall Width2.33m/7ft 8in
Overall Height(Rails Up)3.23m/10ft 7in
Overall Height(Rails Down)2.47m/8ft 1in
Platform Size(Length×Width)3.98m×1.83m/13ft 1in ×6ft
Platform Extension Size1.43m/1.16m/4ft 8in/3ft 10in
Ground Clearance0.30m/1ft
Wheelbase2.86m/9ft 5in
Turning Radius(Inside/Outside)2.70m/5.50m/8ft 10in/18ft
Tyres315/55/D20
S.W.L680kg/1499lb
S.W.L On Extension227kg/500lb
Max. Occupants4
Gradeability30%
Travel Speed(Stowed)5.0km/h/3.11mph
Travel Speed(Raised)1.0km/h/0.62mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed78/74sec
Overall Weight8560kg/18872lb
Diesel Engine18.2kW/3000rpm/18.2kW/3000rpm
Diesel Tank100L/26gal
Hydraulic Tank120L/31gal
Power SourceEngine
