JCPT1923RTLRough Terrain Scissor LiftDIESEL

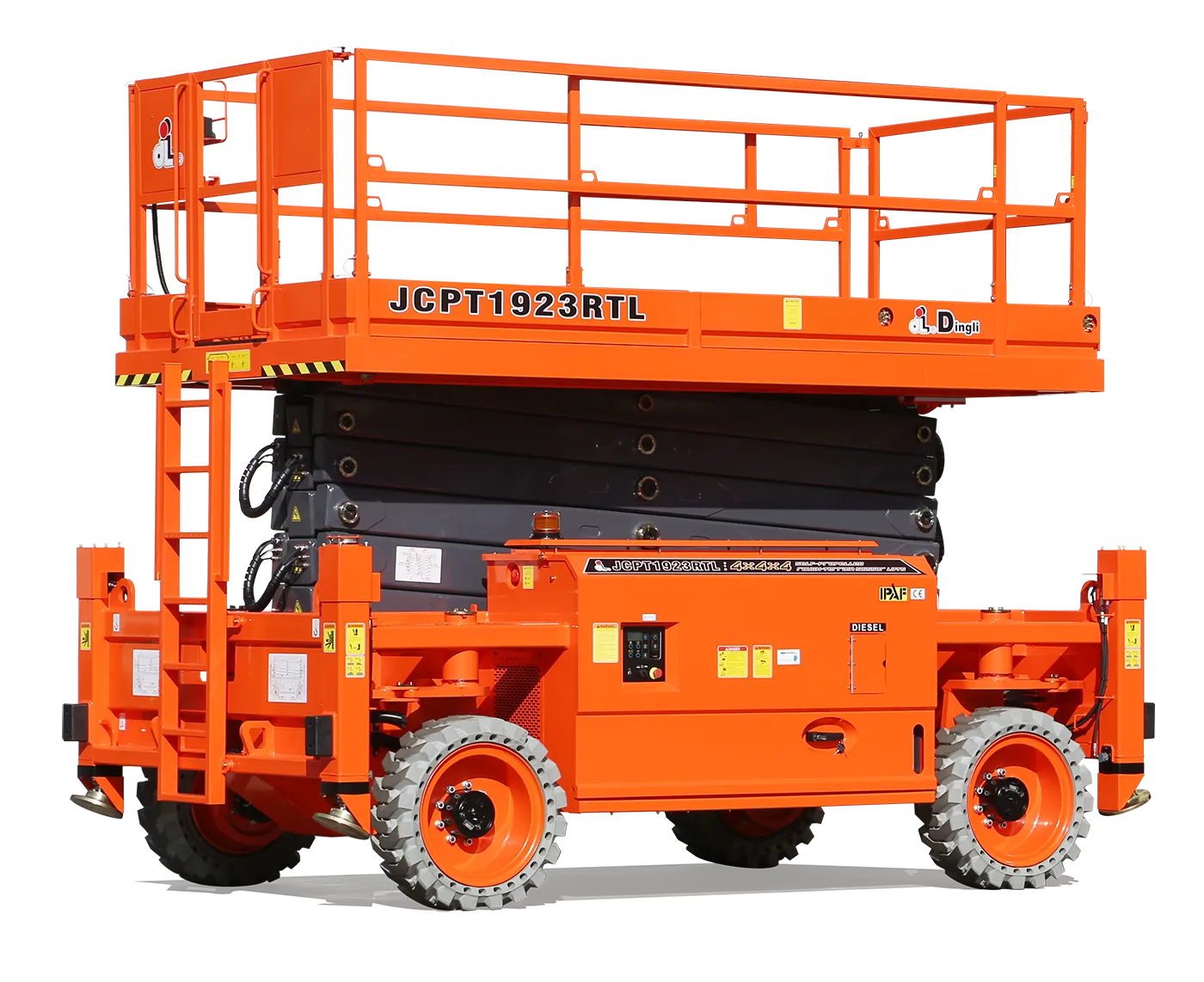

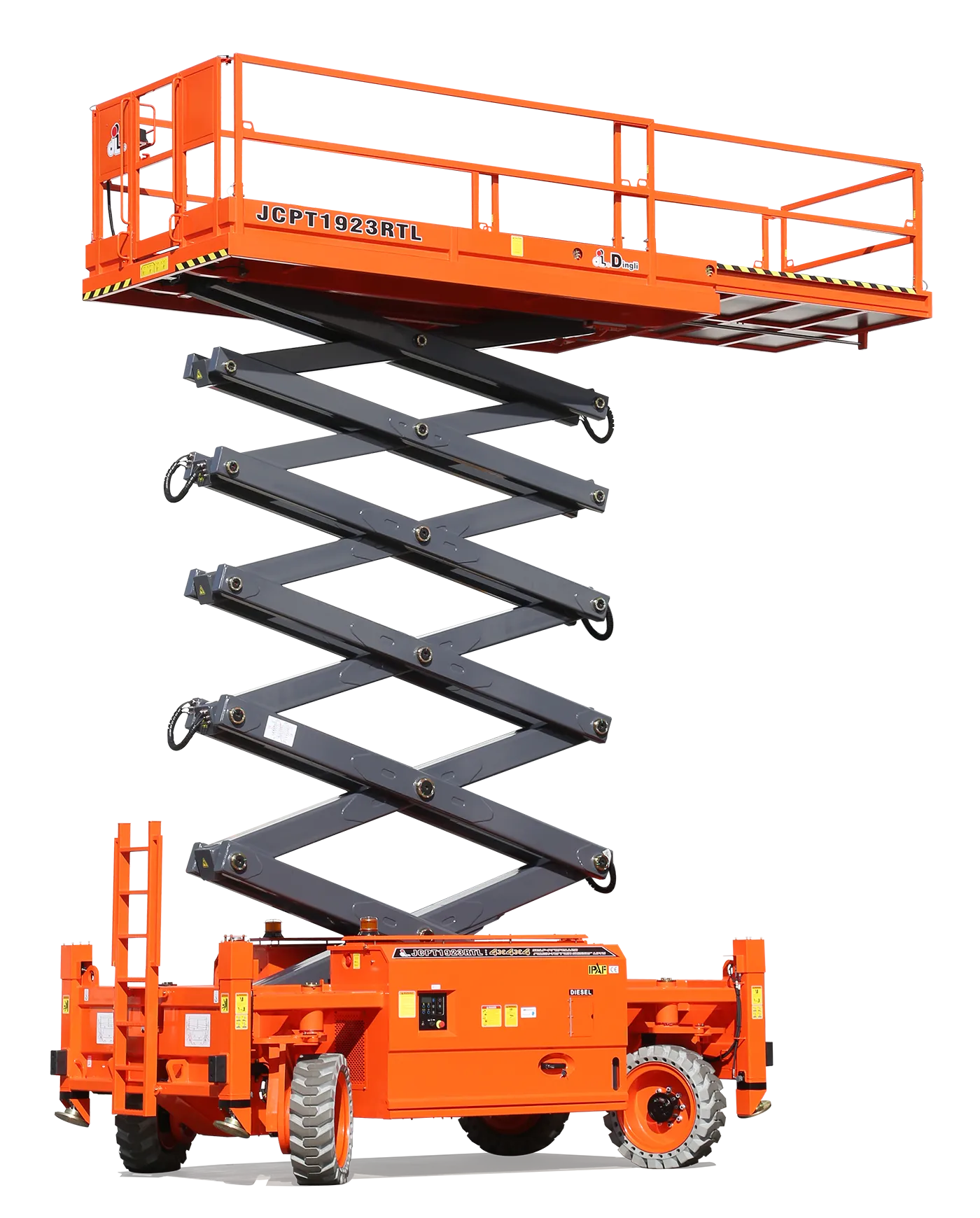

JCPT1923RTL Rough Terrain Scissor Lift
₹ 75,30,415
+ 18% GST = ₹ 88,85,890 incl.
19.00m/62ft 4inmWorking Height
4Occupants
Description
Drivable at full height with a large load of 680 kg, JCPT1923RTL is a large scissor lift that offers seamless rough terrain performance and versatility. Equipped with strong power and a large deck, this robust scissor lift is perfect for all heavy-duty tasks.
Key Features
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- 36.4kw high power engine
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height19.00m/62ft 4in
Max. Platform Height17.00m/55ft 9in
Overall Length4.46m/14ft 8in
Overall Width2.29m/7ft 6in
Overall Height(Rails Up)3.60m/11ft 10in
Overall Height(Rails Down)2.75m/9ft
Platform Size(Length×Width)4.06m×2.00m/13ft 4in×6ft 7in
Platform Extension Size2.00m/6ft 7in
Ground Clearance0.40m/1ft 4in
Wheelbase2.85m/9ft 4in
Turning Radius(Inside/Outside)1.00m/3.20m / 3ft 3in/10ft 6in
Tyres33×12-20
S.W.L680kg/1499lb
S.W.L On Extension680kg/1499lb
Max. Occupants4
Gradeability40%
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed70/70sec
Overall Weight10530kg/23214lb
Diesel Engine36.4kW/2600rpm
Diesel Tank100L/26gal 4pt
Hydraulic Tank135L/35gal
Power SourceEngine
