JCPT2223RTBRough Terrain Scissor LiftDIESEL

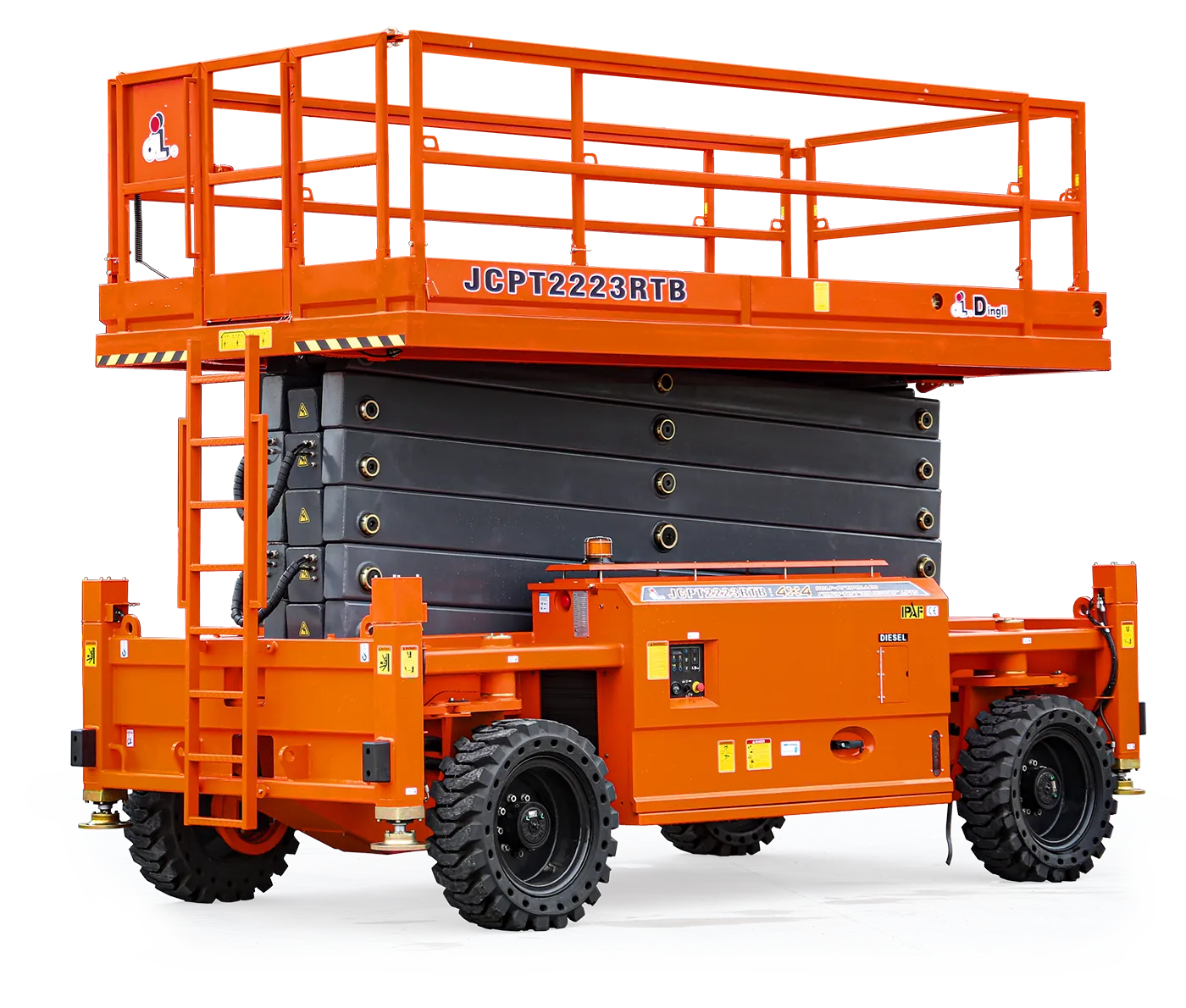

JCPT2223RTB Rough Terrain Scissor Lift
₹ 1,03,65,147
+ 18% GST = ₹ 1,22,30,873 incl.
22.00m/72ft 2inmWorking Height
4Occupants
Description
Equipped with a one key extension large deck, JCPT2223RTB is a large scissor lift that offers seamless rough terrain performance and versatility. Drivable at full height with a large load of 750 kg, this robust scissor lift is perfect for all heavy-duty tasks.
Key Features
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- 36.4kw high power engine
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height22.00m/72ft 2in
Max. Platform Height20.00m/65ft 7in
Overall Length4.95m/16ft 3in
Overall Width2.46m/8ft 1in
Overall Height(Rails Up)3.86m/12ft 8in
Overall Height(Rails Down)3.00m/9ft 10in
Platform Size(Length×Width)4.59m×2.25m/15ft 2in×7ft 5in
Platform Extension Size2.70m/8ft 10in
Ground Clearance0.40m/1ft 4in
Wheelbase3.30m/10ft 10in
Turning Radius(Inside/Outside)1.25m/3.40m / 4ft 1in/11ft 2in
Tyres36×14-20
S.W.L750kg/1653lb
S.W.L On Extension750kg/1653lb
Max. Occupants4
Gradeability40%
Travel Speed(Stowed)4.7km/h / 2.92mph
Travel Speed(Raised)0.4km/h / 0.25mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed75/75sec
Overall Weight13000kg/28660lb
Diesel Engine36.4kW/2600rpm
Diesel Tank100L/26gal 4pt
Hydraulic Tank150L/39gal 6pt
Power SourceEngine
