JCPT2825RTRough Terrain Scissor LiftDIESEL

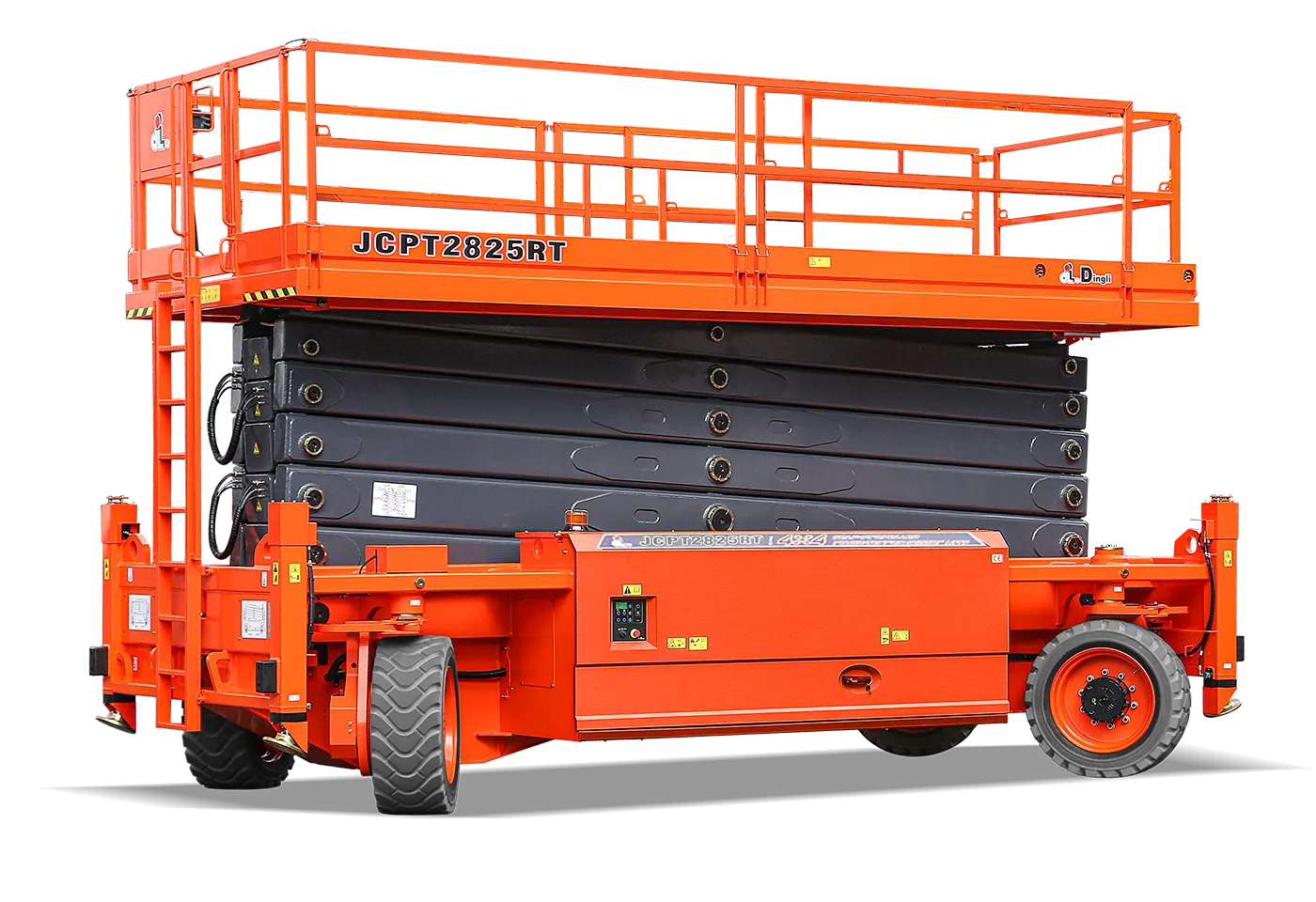

JCPT2825RT Rough Terrain Scissor Lift
₹ 3,04,28,635
+ 18% GST = ₹ 3,59,05,789 incl.
28.00m/91ft 10inmWorking Height
4Occupants
Description
Engineered for rough terrain performance, JCPT2825RT is drivable at full height with a large load of 1000 kg. Versatile and equipped with high power capabilities, this robust scissor lift is perfect for all heavy-duty construction and maintenance tasks.
Key Features
- Automatic self-levelling for stability
- 4 Wheel driving and steering for flexibility
- 55kw high power engine
- One key extension large deck that can be stopped and used at any extension point
Specifications
Max. Working Height28.00m/91ft 10in
Max. Platform Height26.00m/85ft 4in
Overall Length5.96m/19ft 7in
Overall Width2.50m/8ft 2in
Overall Height(Rails Up)4.13m/13ft 7in
Overall Height(Rails Down)3.19m/10ft 6in
Platform Size(Length×Width)5.48m×2.45m/18ft×8ft
Platform Extension Size2.10m/6ft 11in
Ground Clearance0.23m/9in
Wheelbase4.10m/13ft 5in
Turning Radius(Inside/Outside)3.50m/6.00m / 11ft 6in/19ft 8in
Tyres355/55D625
S.W.L1000kg/2204lb
S.W.L On Extension1000kg/2204lb
Max. Occupants4
Gradeability40%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.3km/h / 0.19mph
Max. Working SlopeX-2°/Y-3°
Up/Down Speed110/100sec
Overall Weight19800kg/43651lb
Diesel Engine55kW/2600rpm
Diesel Tank130L/34gal 3pt
Hydraulic Tank260L/68gal 6pt
Power SourceEngine
