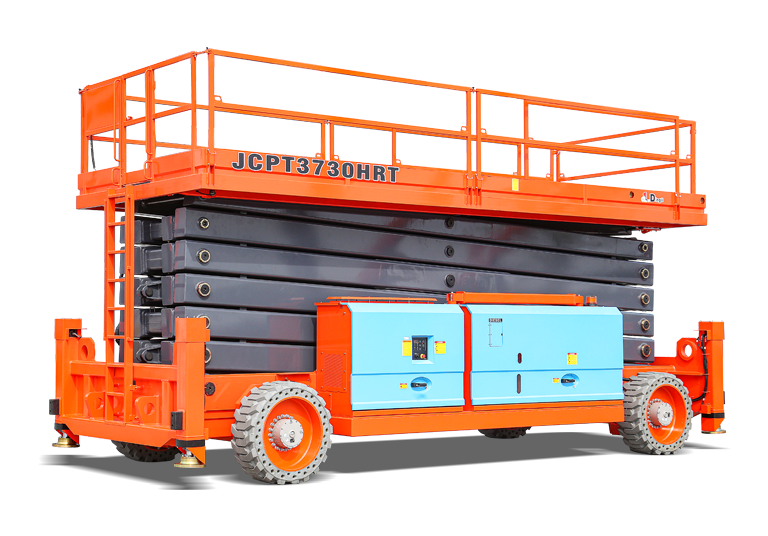

JCPT3730HRTElectric Slab Scissor LiftHYBRID
JCPT3730HRT Electric Slab Scissor Lift
37.00m / 121ft 5inmWorking Height
4/4Occupants
Description
Equipped with a low-power engine Battery can be used as a starter battery Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output. Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Key Features
- Equipped with a low-power engine
- Battery can be used as a starter battery
- Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.
- Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly
Specifications
Max. Working Height37.00m / 121ft 5in
Max. Platform Height35.00m / 114ft 10in
Overall Length(With Outriggers)8.00m / 26ft 3in
Overall Width3.00m / 9ft 10in
Overall Height(Rails Up)4.20m / 13ft 9in
Overall Height(Rails Down)3.25m / 10ft 8in
Platform Size(Length×Width)7.46m×2.74m / 24ft 6in×9ft
Platform Extension Size2.25m / 7ft 5in
Ground Clearance(Stowed/Raised)0.35m / 1ft 2in
Wheelbase5.50m / 18ft
Turning Radius(Inside/Outside)5.00m/8.00m / 16ft 5in/26ft 3in
TyresΦ1025×365mm
Safe Working Load750kg / 1654lb
S.W.L On Extension750kg / 1654lb
Max. Occupants(Indoor/Outdoor)4/4
Gradeability0.25
Travel Speed(Stowed)≯2.7km/h / ≯1.68mph
Travel Speed(Raised)≯0.2km/h / ≯0.12mph
Max. Working Slope(X/Y)2°/3°
Up/Down Speed180/175sec
Overall Weight(With Outriggers)39800kg / 87744lb
Diesel EngineKubota Z482/9.8kW
Diesel Tank130L / 34gal
Hydraulic Tank600L / 158gal
Lithium Battery80V/660Ah
Charger80V/80A
Driving Motor4×56VAC/6.0kW
Lifting Motor2×53VAC/28kW
Power SourceHybrid
