BA16CERT2Articulated Boom LiftELECTRIC

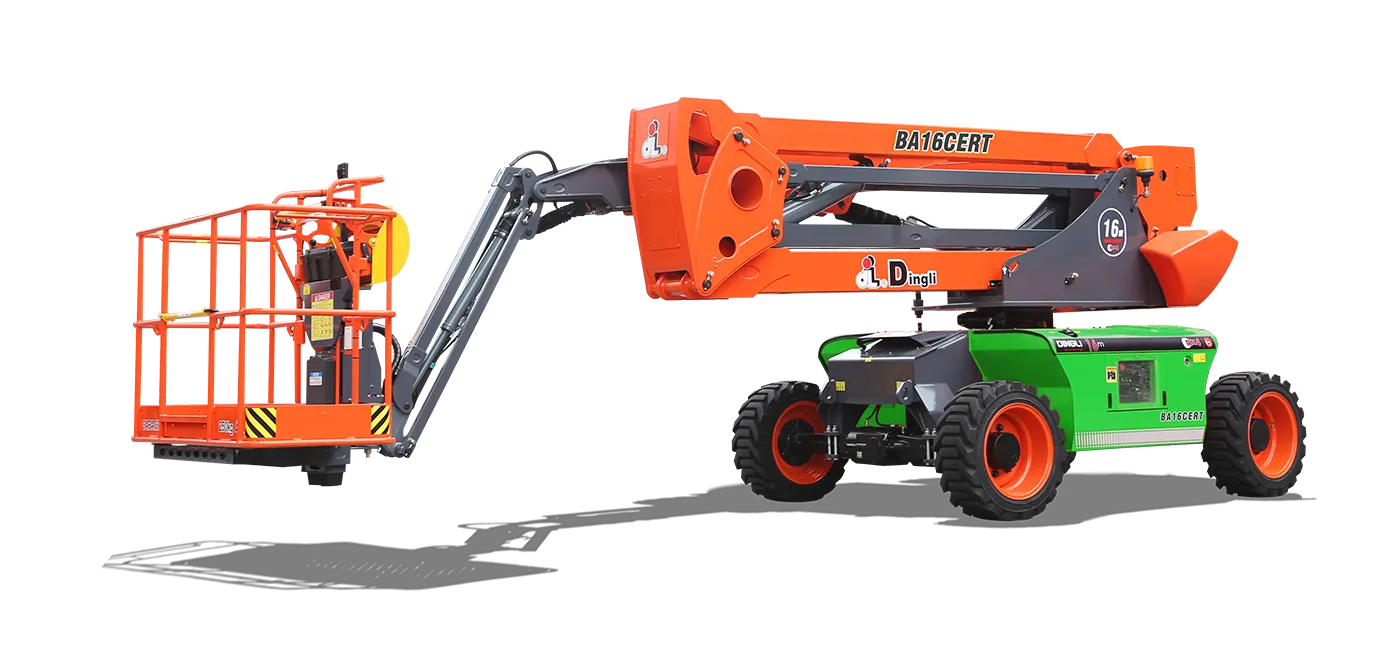

BA16CERT2 Articulated Boom Lift
₹ 57,04,206
+ 18% GST = ₹ 67,30,963 incl.
16.27m/53ft 4inmWorking Height
2Occupants
Description
Lightweight and robust, BA16CERT2 is a versatile articulated boom lift developed by Dingli’s domestic R&D center. Equipped with below ground reaching capabilities and large range horizontal outreach, this boom is drivable at full height with a large load of 320kg. It is suitable for a wide range of construction and maintenance tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- Equipped with 48V/375Ah high-capacity lithium battery packs, 1.5-hour fast charging
- Component downward design for enhanced stability
Specifications
Max. Working Height16.27m/53ft 4in
Max. Platform Height14.27m/46ft 10in
Max. Operating Range(+0.6m)8.69m/28ft 6in
Max. Platform Range8.09m/26ft 6in
Max. Up And Over Clearance7.30m/23ft 11in
Max. Down Probing Depth0.42m/1ft 4in
Flatbed Transport Dimensions (L×W×H)5.17m×2.44m×2.58m/16ft11in×8ft×8ft 5in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing0
Ground Clearance0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight8300kg/18298lb
Battery48V/375Ah
Charger48VDC/60A
Driving Motor34AC/9kW
Lifting Motor34VAC/13kW
Hydraulic Tank145L/38gal
Power SourceElectric
SeriesD Series
