BA28ERTArticulated Boom LiftELECTRIC

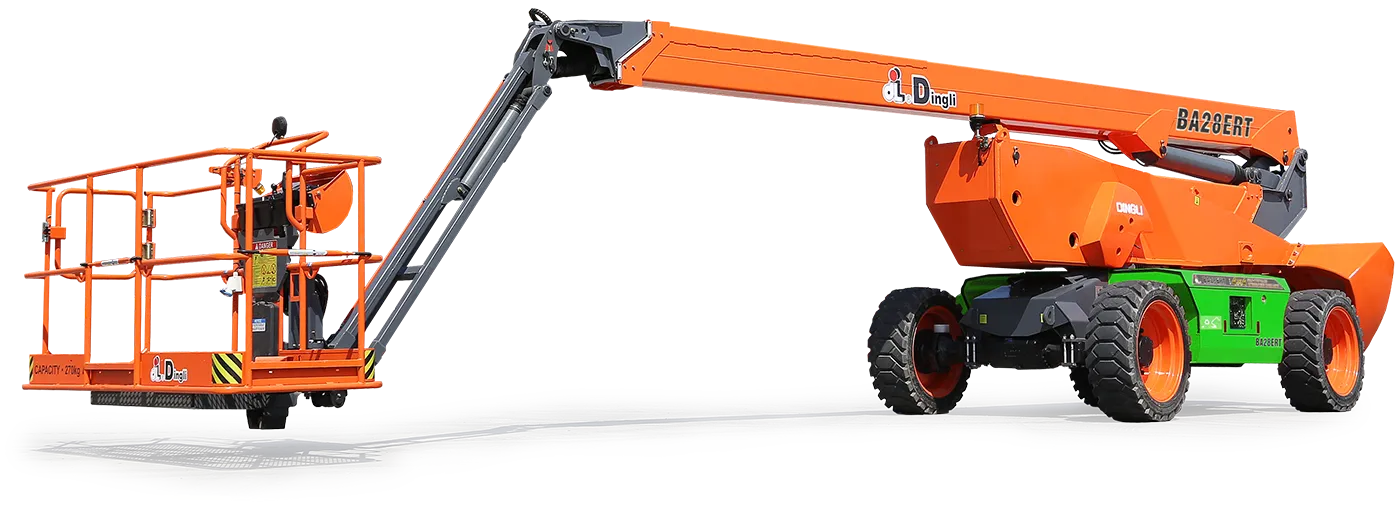

BA28ERT Articulated Boom Lift
28.10m/92ft 2inmWorking Height
2Occupants
Description
Engineered for below ground reachability and a large horizontal outreach range, BA28ERT is developed by MAGNI, Italian R&D center. Equipped with strong power and rough terrain performance capabilities, this articulated boom lift is versatile enough to be used across industries and heavy-duty tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V520Ah high-capacity lithium battery packs, 1.5-hour fast charging
- Component downward design for enhanced stability
Specifications
Max. Working Height28.10m/92ft 2in
Max. Platform Height26.10m/85ft 8in
Max. Operating Range(+0.6m)19.40m/63ft 8in
Max. Platform Range18.80m/61ft 8in
Max. Up And Over Clearance9.14m/30ft
Max. Down Probing Depth6.61m/21ft 8in
Overall Length(Stowed)11.83m/38ft 10in
Overall Length(Transport)12.03m/39ft 6in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.89m/9ft 6in
Overall Height(Transport)2.61m/8ft 7in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)250kg/551lb
Max. Occupants2
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle72°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight18400kg/40565lb
Lithium Battery80V/520Ah
Emergency Power System12V
Driving Motor54V/18kW
Hydraulic Tank165L/43gal
Power SourceElectric
SeriesM Series
