BA24RTArticulated Boom LiftDIESEL

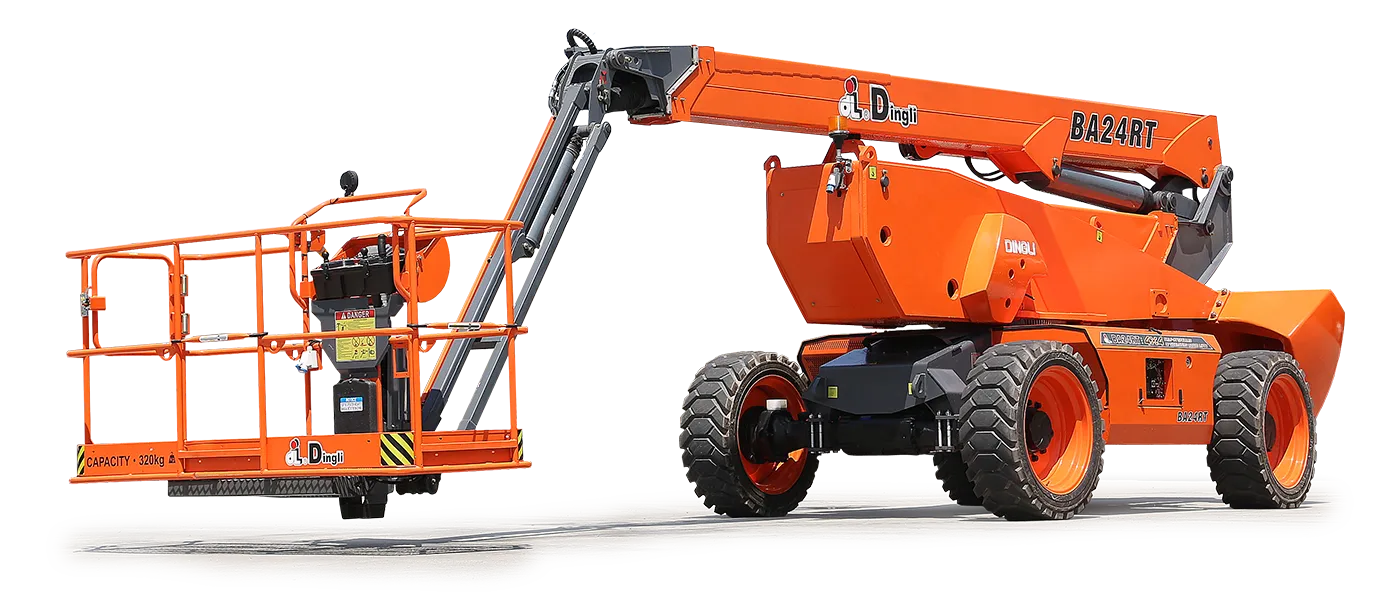

BA24RT Articulated Boom Lift
24.30m/79ft 9inmWorking Height
2Occupants
Description
Versatile with a large range horizontal outreach and below ground reachability, BA24RT is developed by MAGNI, Italian R&D center. Equipped with strong power and rough terrain performance capabilities, this articulated boom lift is versatile enough to be used across industries and heavy-duty tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- 55.4kw High Power engine for long lasting performance
- Component downward design for enhanced stability
Specifications

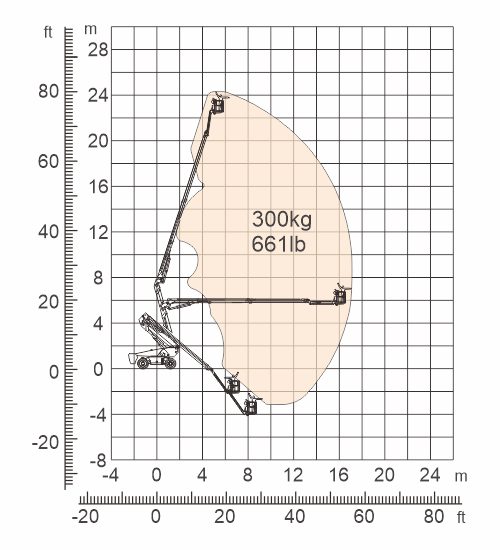

Max. Working Height24.30m/79ft 9in
Max. Platform Height22.30m/73ft 2in
Max. Operating Range(+0.6m)17.10m/56ft 1in
Max. Platform Range16.50m/54ft 2in
Max. Up And Over Clearance9.14m/30ft
Max. Down Probing Depth4.03m/13ft 3in
Overall Length(Stowed)9.83m/32ft 3in
Overall Length(Transport)10.03m/32ft 11in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.89m/9ft 6in
Overall Height(Transport)2.61m/8ft 7in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)300kg/661lb
Max. Occupants2
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle72°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight17200kg/37919lb
Emergency Power System12V
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank135L/35gal
Hydraulic Tank165L/43gal
Power SourceEngine
SeriesM Series
