BA28BHRTArticulated Boom LiftHYBRID

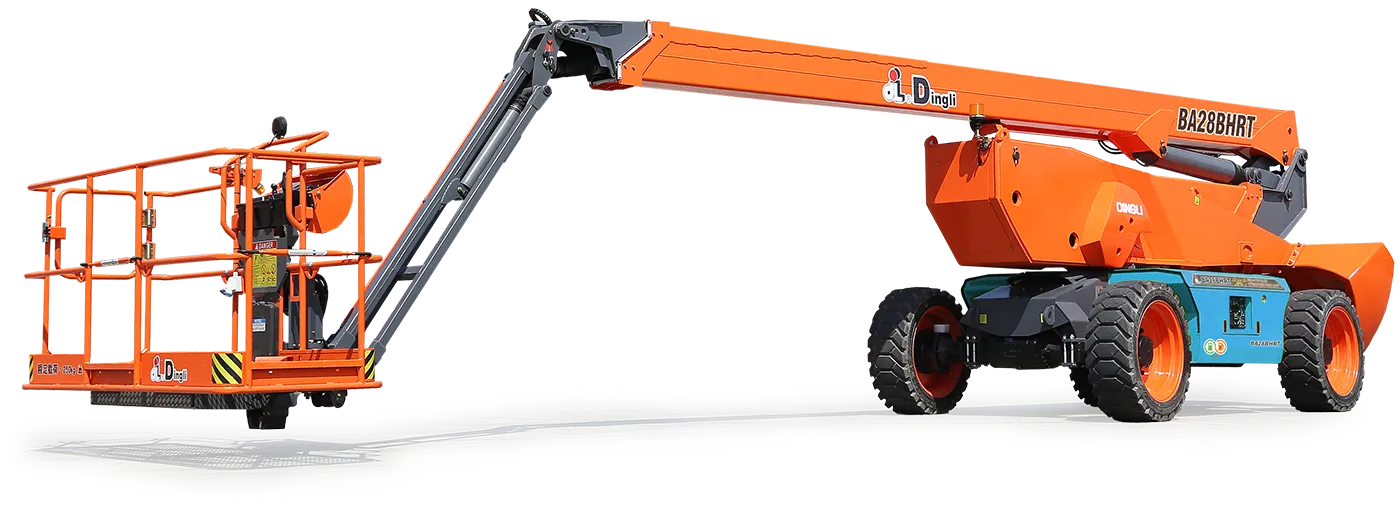

BA28BHRT Articulated Boom Lift
₹ 1,18,62,917
+ 18% GST = ₹ 1,39,98,242 incl.
28.15mmWorking Height
2Occupants
Description
Equipped with a large horizontal outreach and below ground reach capabilities, BA28BHRT is developed by MAGNI, Italian R&D center. Equipped with strong power and rough terrain performance capabilities, this articulated boom lift is versatile enough to be used across industries and heavy-duty tasks.
Key Features
- Equipped with a barb jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V420Ah high-capacity lithium battery packs, a tank of fuel, built in range extender to charge the battery in the absence of external power supply – ensures seamless machine usage up to 30 days
- Component downward design for enhanced stability
Specifications
Max. Working Height28.15m
Max. Platform Height26.15m
Max. Operating Range(+0.6m)19.04m
Max. Platform Range18.44m
Max. Up And Over Clearance9.14m
Max. Down Probing Depth5.17m
Flatbed Transport Dimensions (L×W×H)9.22m×2.50m×3.00m
Standard Container TransportAll Applicable
Platform Size(Length×Width)2.44m×0.91m
Turntable Tailswing1.61m
Ground Clearance(Stowed/Raised)0.41m
Wheelbase2.80m
S.W.L(Unrestricted/Restricted)250kg/551lb
Max. Occupants2
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle72°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight18400kg/40565lb
Lithium Battery80V/420Ah
Emergency Power System12V
Driving Motor54VAC/18kW
Range Extended EngineKubota Z482/9.8kW
Diesel Tank110L/29gal
Hydraulic Tank165L/43gal
Power SourceHybrid
SeriesM Series
