BA16NEArticulated Boom LiftELECTRIC

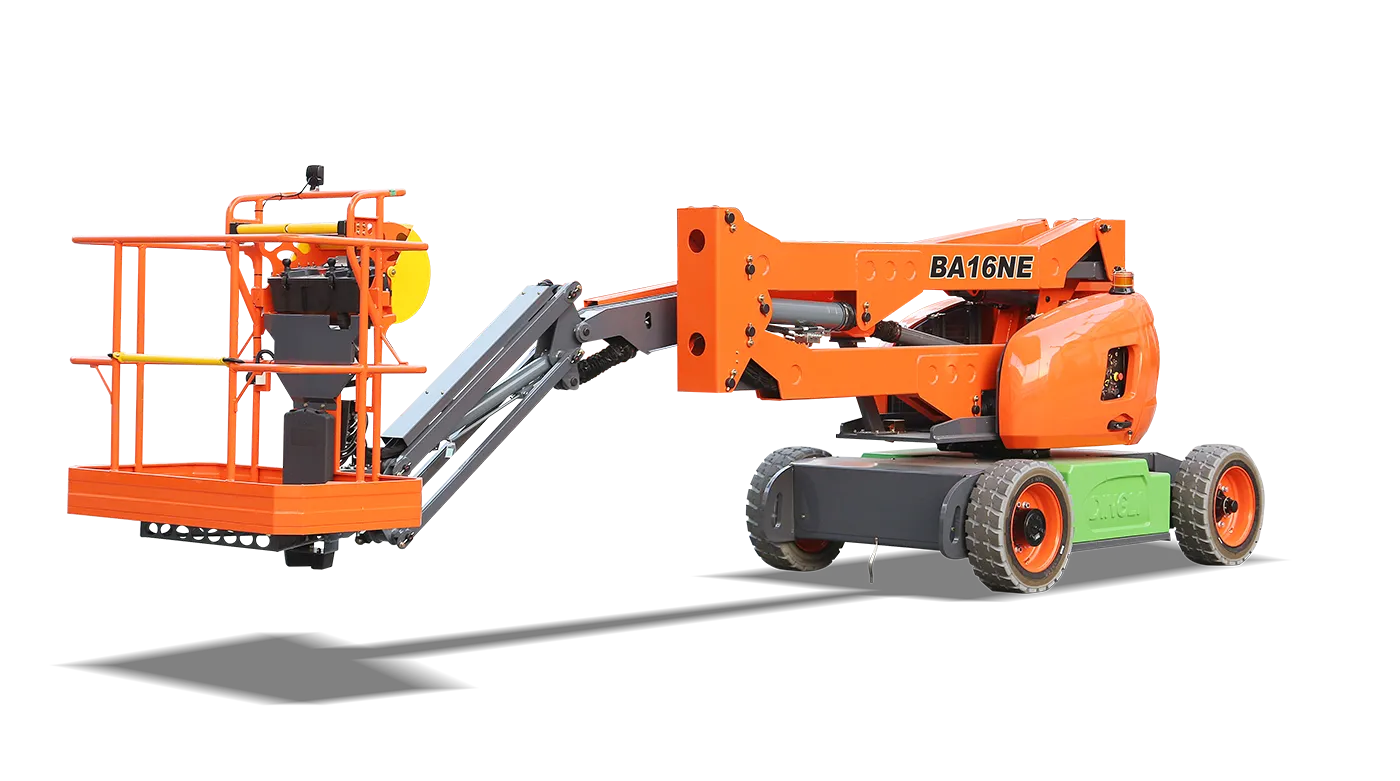

BA16NE Articulated Boom Lift
₹ 42,34,230
+ 18% GST = ₹ 49,96,391 incl.
16.50m/54ft 2inmWorking Height
2Occupants
Description
Robust and versatile, BA16NE is equipped with a 360° Turntable Rotation and 0 emission capabilities. Providing a safe work environment with tilt sensors and manual safety pump, this robust boom lift offers secure elevation for all construction, maintenance, and decorative tasks.
Key Features
- Proportional joystick controls
- Four-wheel driving – steering for flexible access
- Self-levelling platform for enhanced safety
- Foam-filled tyres for smooth maneuvering
- Reinforced with real time fault diagnosis system
- Equipped with 48V300Ah high-capacity lithium battery packs, 1.5-hour fast charging
- Equipped with a 30L Hydraulic Tank
Specifications
Max. Working Height16.50m/54ft 2in
Max. Platform Height14.50m/47ft 7in

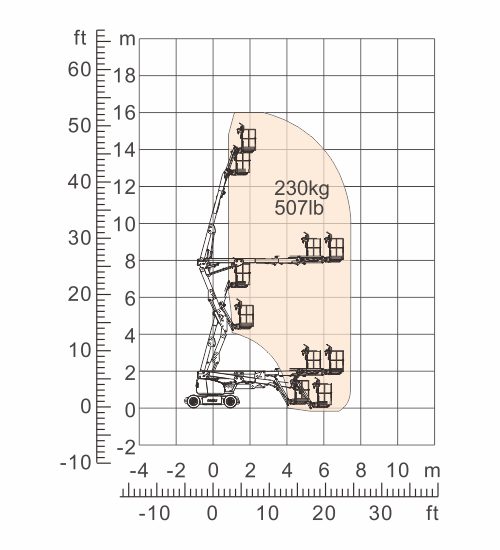

Max. Operating Range(+0.6m)7.75m/23ft 6in
Max. Platform Range6.55m/21ft 6in
Max. Up And Over Clearance7.89m/25ft 11in
Flatbed Transport Dimensions (L×W×H)5.15m×1.73m×2.00m/16ft 11in×5ft 8in×6ft 7in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.45m×0.90m/4ft 9in×2ft 11in
Turntable Tailswing0
Ground Clearance0.20m/9in
Wheelbase2.00m/6ft 8in
S.W.L(Unrestricted/Restricted)230kg/508lb
Max. Occupants2
Gradeability30%
Travel Speed(Stowed)6.1km/h / 3.9mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-3°/Y-3°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement130°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)2.08m/3.30m / 6ft 10in/10ft 11in
Tyres17.5×6.75
Overall Weight6700kg/14770lb
Lithium Battery48V/300Ah
Emergency Power System48V/35A
Hydraulic Tank30L/7.10gal
Power SourceElectric
SeriesD Series
