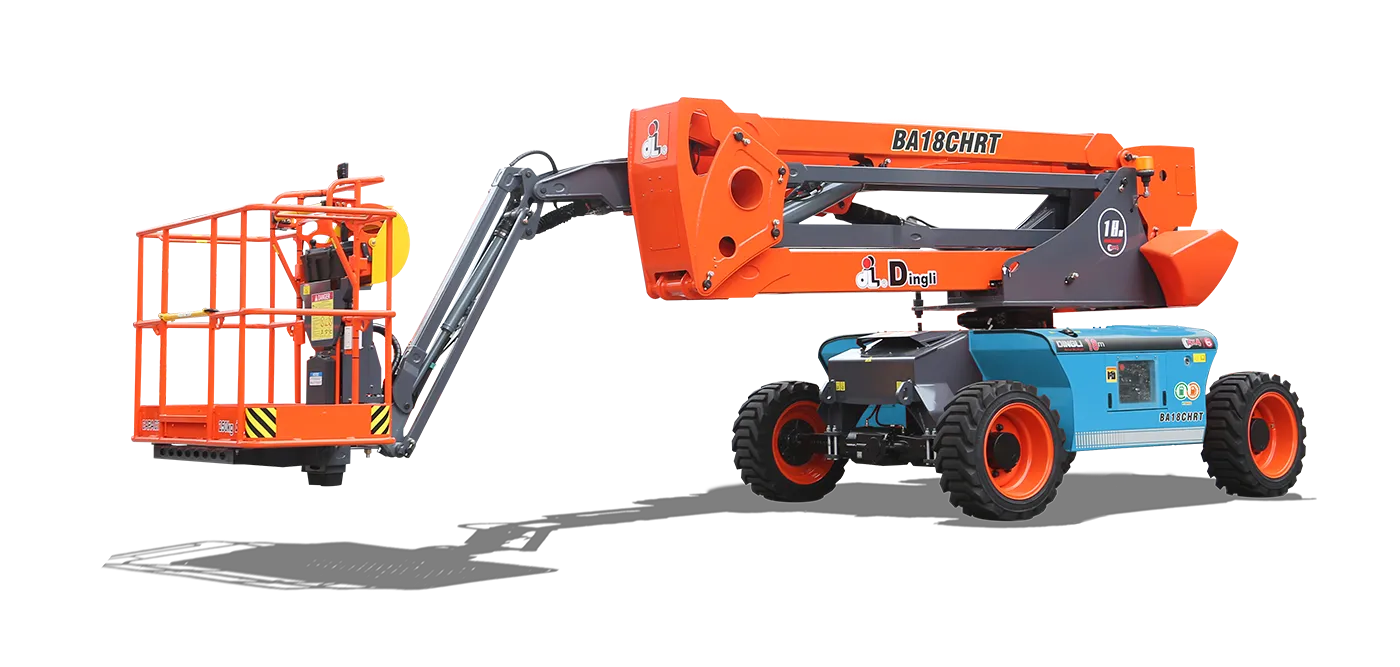

BA18CHRT2Articulated Boom LiftHYBRID
BA18CHRT2 Articulated Boom Lift
18.11m/59ft 5inmWorking Height
2Occupants
Description
Developed by Dingli’s domestic R&D center, BA18CHRT2 offers a large range horizontal outreach and navigates complex spaces effortlessly. Drivable at full height with a large load of 320kg, this lightweight articulated boom lift is versatile enough to be used across industries for construction and maintenance tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- Optionally equipped with 48V300Ah high-capacity lithium battery packs and a universal range extender that charges the battery when there is no external power supply
- Component downward design for enhanced stability
Specifications
Max. Working Height18.11m/59ft 5in
Max. Platform Height16.11m/52ft 10in
Max. Operating Range(+0.6m)9.45m/31ft
Max. Platform Range8.85m/29ft
Max. Up And Over Clearance8.18m/26ft 10in
Max. Down Probing Depth0.68m/2ft 3in
Flatbed Transport Dimensions (L×W×H)5.47m×2.44m×2.59m/17ft11in×8ft×8ft 6in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing0.13m/5in
Ground Clearance0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight8650kg/19069lb
Battery48V/300Ah
Charger48VDC/60A
Driving Motor34AC/9kW
Lifting Motor34VAC/13kW
Range Extended EngineKubota Z482/9.8kW
Diesel Tank90L/23gal
Hydraulic Tank145L/38gal
Power SourceHybrid
SeriesD Series
