BA18NEArticulated Boom LiftELECTRIC
BA18NE Articulated Boom Lift
18.00m/59ft 1inmWorking Height
2Occupants
Description
Robust and versatile, BA18NE is Dingli’s articulated boom lift that is equipped with a 360° Turntable Rotation and 0 emission capabilities. Providing a safe work environment with tilt sensors and manual safety pump, this reliable boom lift offers secure elevation for all construction, maintenance, and decorative tasks.
Key Features
- Proportional joystick controls
- Four-wheel driving – steering for flexible access
- Self-levelling platform for enhanced safety
- Foam-filled tyres for smooth maneuvering
- Reinforced with real time fault diagnosis system
- Equipped with 48V300Ah high-capacity lithium battery packs, 1.5 hour fast charging
- Equipped with a 30L Hydraulic Tank
Specifications
Max. Working Height18.00m/59ft 1in
Max. Platform Height16.00m/52ft 6in

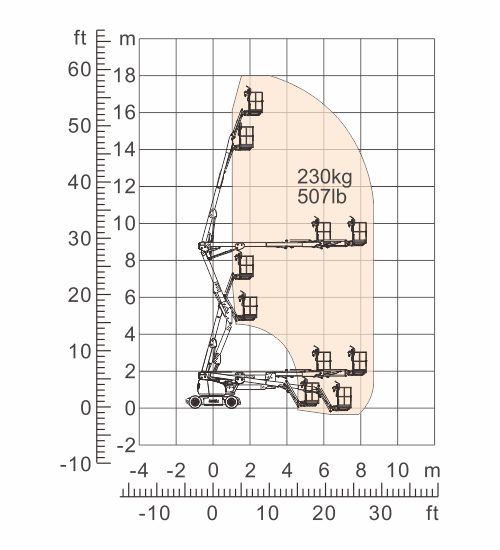

Max. Operating Range(+0.6m)8.30m/27ft 3in
Max. Platform Range7.70m/25ft 3in
Max. Up And Over Clearance8.90m/29ft 2in
Flatbed Transport Dimensions (L×W×H)6.10m×1.73m×2.00m/20ft×5ft 8in×6ft 7in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.45m×0.76m/4ft 9in×2ft 6in
Turntable Tailswing0
Ground Clearance0.20m/8in
Wheelbase2.00m/6ft 7in
S.W.L(Unrestricted/Restricted)230kg/507lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)6.1km/h / 3.8mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-3°/Y-3°
Turret Rotation360°Discontinuity
Platform Rotation180°
Jib Movement130°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)2.08m/3.30m / 6ft 10in/10ft 10in
Tyres17.5×6.75
Overall Weight7420kg/16358lb
Battery48V/300Ah
Charger48V/35A
Hydraulic Tank30L/7.9gal
Power SourceElectric
SeriesD Series
