BA20CRT2Articulated Boom LiftDIESEL

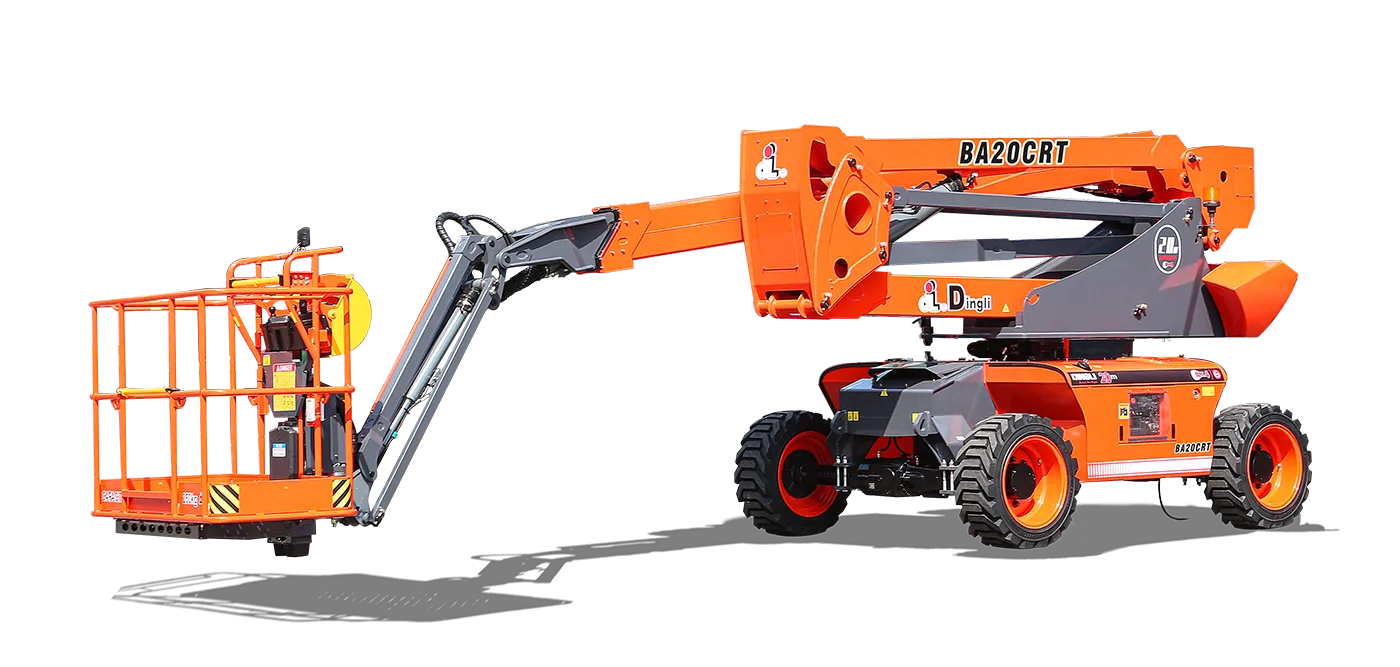

BA20CRT2 Articulated Boom Lift
₹ 67,74,768
+ 18% GST = ₹ 79,94,226 incl.
20.15m/66ft 11inmWorking Height
2Occupants
Description
Designed with a large range horizontal outreach, BA20CRT2 is an articulated boom developed by Dingli’s domestic R&D center and is drivable at full height with a large load of 320kg. Lightweight and stable, this articulated boom lift is versatile enough to be used across industries for construction and maintenance tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- Equipped with 18.2kw low-power engine
- Component downward design for enhanced stability
Specifications
Max. Working Height20.15m/66ft 11in
Max. Platform Height18.15m/59ft 6in
Max. Operating Range(+0.6m)11.13m/36ft 6in
Max. Platform Range10.53m/34ft 6in
Max. Up And Over Clearance8.18m/26ft 10in
Max. Down Probing Depth1.25m/4ft 1in
Flatbed Transport Dimensions (L×W×H)6.41m×2.44mx2.59m/21ft×8ft×8ft 6in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing0.65m/2ft 2in
Ground Clearance0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle73°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight8450kg/18629lb
Diesel EngineKubota D1105/18.2kW
Diesel Tank115L/30gal
Hydraulic Tank145L/38gal
Power SourceEngine
SeriesD Series
