BA22CHRT2Articulated Boom LiftHYBRID

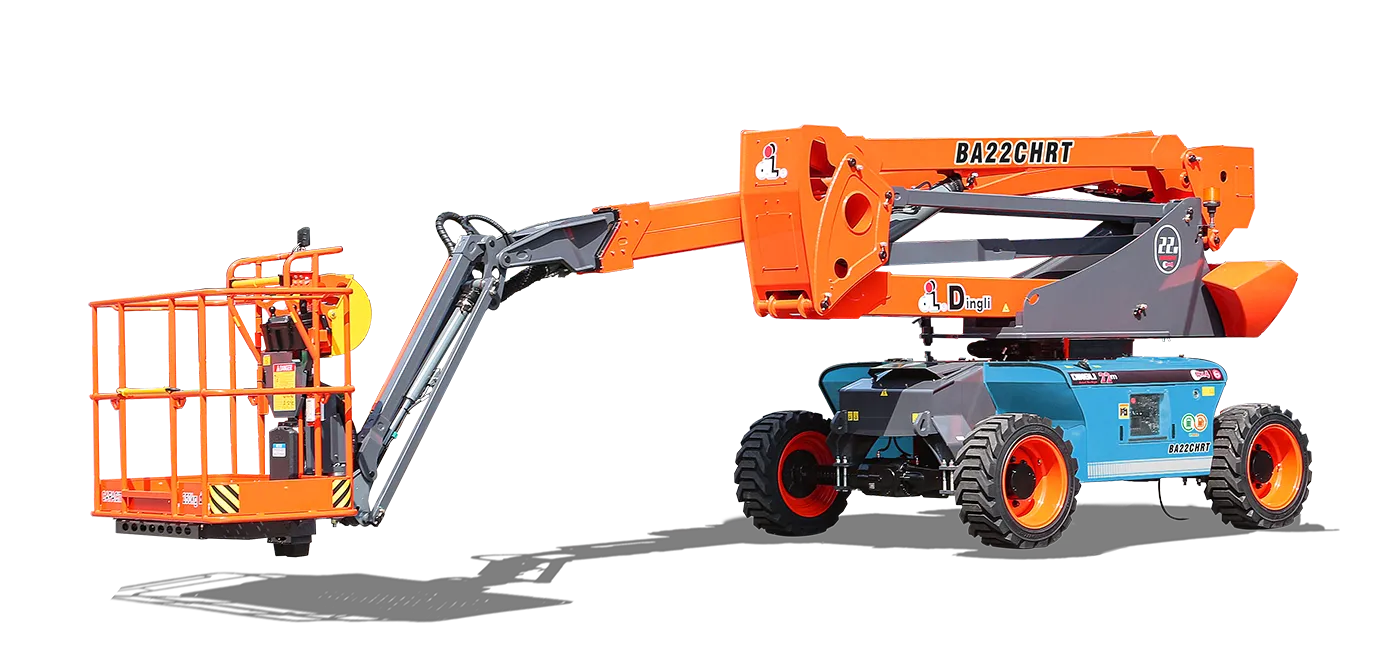

BA22CHRT2 Articulated Boom Lift
22.04m/72ft 4inmWorking Height
2Occupants
Description
Versatile with a large range horizontal outreach and below ground reachability, BA22CHRT2 is developed by Dingli’s domestic R&D center. Lightweight, energy saving, and stable, this articulated boom lift is drivable at full height with a large load of 320kg and can navigate complex spaces with ease.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- Optionally equipped with 48V/300Ah high-capacity lithium battery packs and a universal range extender that charges the battery when there is no external power supply.
- Component downward design for enhanced stability
Specifications
Max. Working Height22.04m/72ft 4in
Max. Platform Height20.04m/65ft 9in
Max. Operating Range(+0.6m)13.17m/43ft 2in
Max. Platform Range12.57m/41ft 3in
Max. Up And Over Clearance8.18m/26ft 10in
Max. Down Probing Depth1.78m/5ft 10in
Flatbed Transport Dimensions (L×W×H)9.55m/31ft 4in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing0.70m/2ft 4in
Ground Clearance0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability35%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight10150kg/22376lb
Battery48V/300Ah
Charger48VDC/60A
Driving Motor34AC/9kW
Lifting Motor34VAC/13kW
Range Extended EngineKubota Z482/9.8kW
Diesel Tank90L/23gal
Hydraulic Tank145L/38gal
Power SourceHybrid
SeriesD Series
