BA24BRTArticulated Boom LiftDIESEL

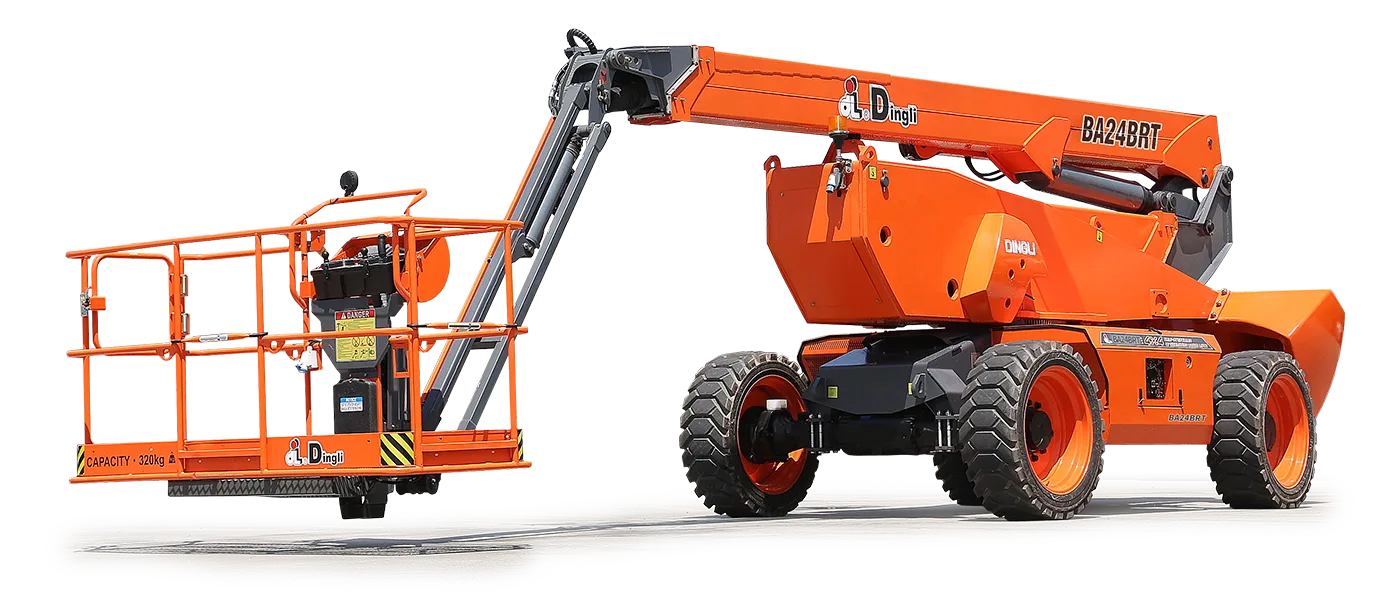

BA24BRT Articulated Boom Lift
24.82mmWorking Height
2Occupants
Description
Engineered for a large horizontal outreach range, BA24BRT is developed by MAGNI, Italian R&D center. Equipped with strong power for rough terrain performance, this articulated boom lift is versatile enough to be used across industries and heavy-duty tasks.
Key Features
- Equipped with a barb jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- 55.4kw High Power engine for long lasting performance
- Component downward design for enhanced stability
Specifications
Max. Working Height24.82m
Max. Platform Height22.82m
Max. Operating Range(+0.6m)17.60m
Max. Platform Range17m
Max. Up And Over Clearance9.14m
Max. Down Probing Depth2.92m
Flatbed Transport Dimensions (L×W×H)7.67m×2.50m×3.00m
Standard Container TransportAll Applicable
Platform Size(Length×Width)2.44m×0.91m
Turntable Tailswing1.61m
Ground Clearance(Stowed/Raised)0.41m
Wheelbase2.80m
S.W.L(Unrestricted/Restricted)300kg/661lb
Max. Occupants2
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle72°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight17200kg/37919lb
Emergency Power System12V
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank135L/35gal
Hydraulic Tank165L/43gal
Power SourceEngine
SeriesM Series
