BT36RTTelescopic Boom LiftDIESEL

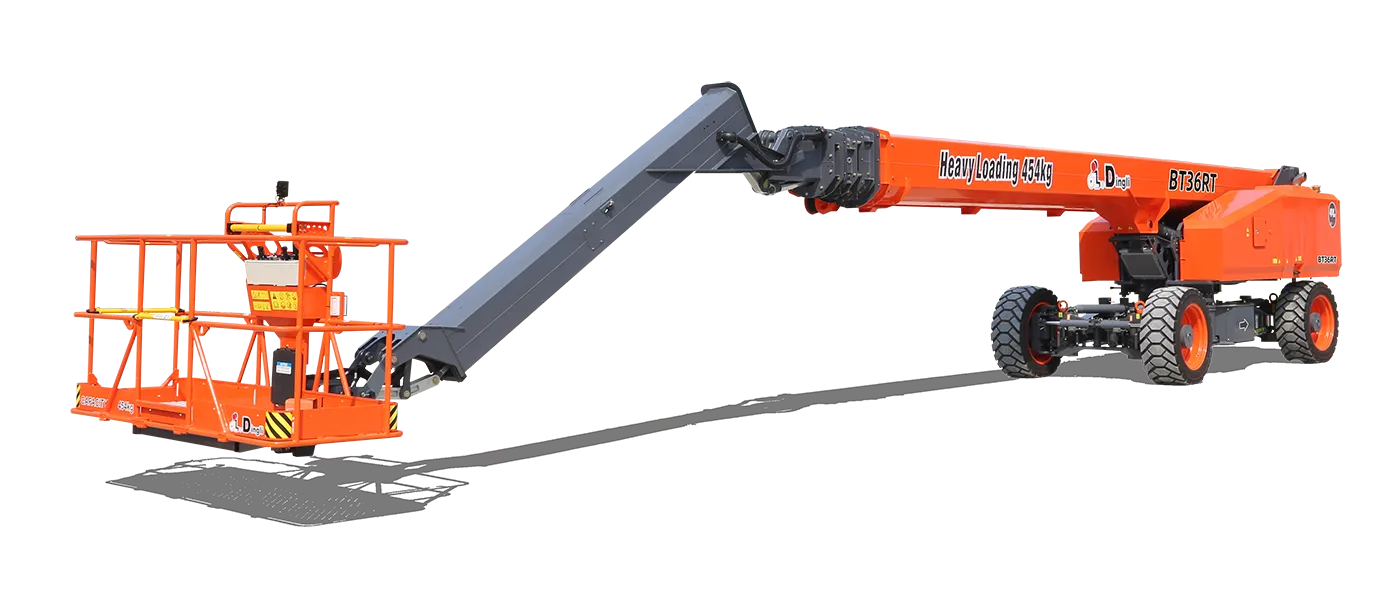

BT36RT Telescopic Boom Lift
₹ 1,25,07,264
+ 18% GST = ₹ 1,47,58,572 incl.
36.23m/118ft 10inmWorking Height
3Occupants
Description
Crafted with a modular design for a seamless horizontal and vertical operating range, BT36RT is a regular jib boom lift developed by TEUPEN, DINGLI’s German R&D center. Reinforced with superior steel and technology, this versatile boom lift is suited for an array of industrial elevation and maintenance tasks.
Key Features
- Patented one key in-situ axle expansion not only saves time by taking just 45 seconds to complete the whole process, but also ensures there is no wear & tear of tires. It maximises space utilisation too.
- Reinforced with Cat3 safety architecture and full redundancy of electronic control software and hardware
- Four-wheel driving – steering for flexible access
- Jib with 230°amplitude, which can be hooked back for standard container transport
- 55.4kw High Power engine for long lasting performance
- 40% increased action efficiency when compared to standard models
Specifications
Max. Working Height36.23m/118ft 10in
Max. Platform Height34.23m/112ft 4in

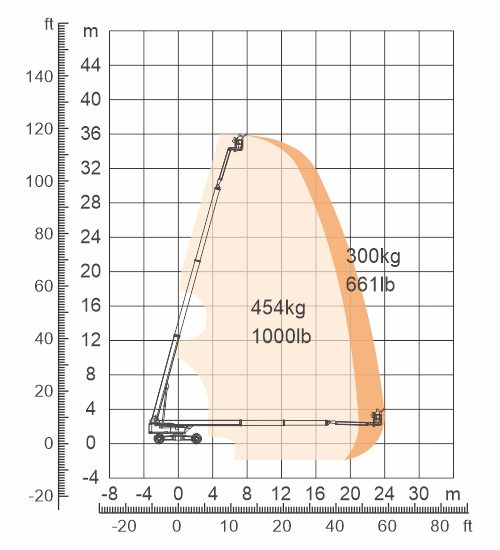

Max. Operating Range(+0.6m)23.60m/77ft 5in
Max. Platform Range23.00m/75ft 5in
Max. Down Probing Depth2.00m/6ft 7in
Overall Length(Stowed)17.00m/55ft 9in
Overall Length(Transport)11.92m/39ft 2in
Overall Width(Axle Expanded)4.15m/13ft 7in
Overall Width(Axle Retracted)2.45m/8ft
Overall Width(Transport)2.29m/7ft 6in
Overall Height(Stowed)2.82m/9ft 3in
Overall Height(Transport)2.55m/8ft 4in
Platform Size(Length×Width)2.44m×0.91m/8ft×2ft 12in
Turntable Tailswing1.39m/4ft 7in
Ground Clearance(Stowed/Raised)0.40m/1ft 4in
Wheelbase(Axle Expanded)4.07m/13ft 4in
Wheelbase(Axle Retracted)4.27m/14ft
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working Slope5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement230°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)2.99m/5.41m/10ft/17ft 9in
Tyres445/50/D710
Overall Weight19610kg/43232lb
Emergency Power System12V/110A×2
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank150L/39gal
Hydraulic Tank230L/60gal
Power SourceEngine
SeriesT Series
