BT41RTTelescopic Boom LiftDIESEL

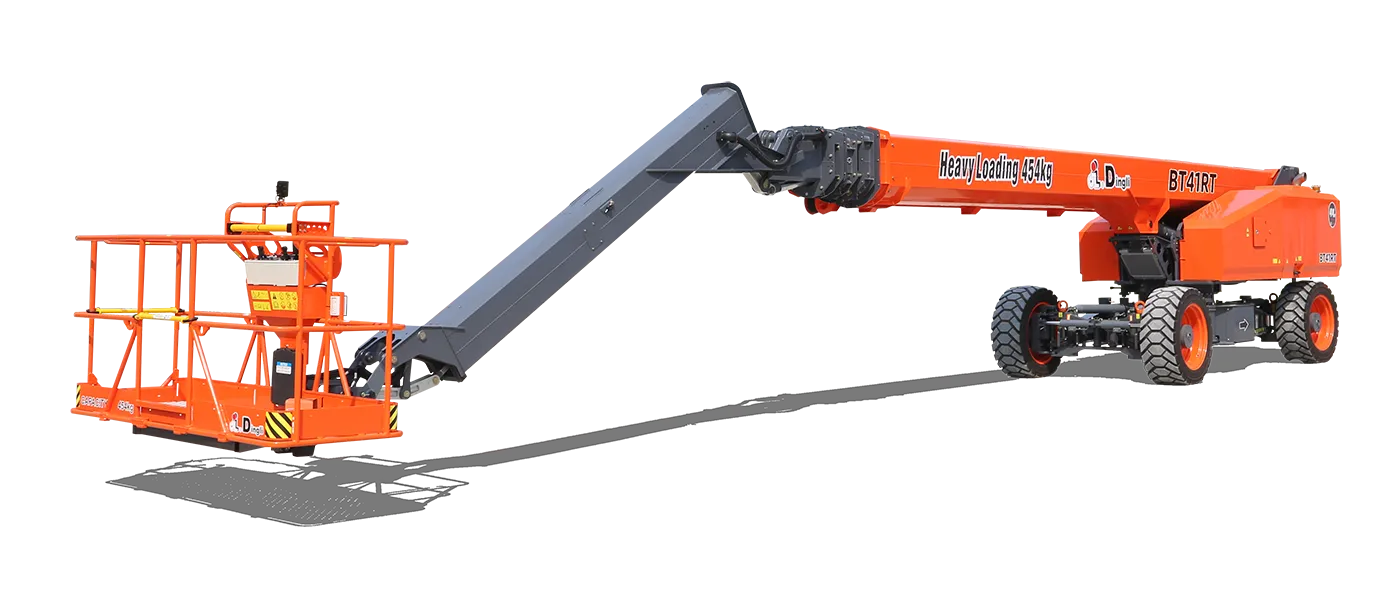

BT41RT Telescopic Boom Lift
₹ 1,43,31,240
+ 18% GST = ₹ 1,69,10,863 incl.
41.54m/136ft 3inmWorking Height
3Occupants
Description
Developed by TEUPEN, Dingli’s German R&D center, BT41RT is a standard boom lift reinforced with Cat3 safety architecture. Equipped with a full redundancy of electronic control software and hardware, this versatile 40% higher action efficiency boom lift is perfect for construction, maintenance, and a whole range of heavy lifting tasks.
Key Features
- Patented one key in-situ axle expansion not only saves time by taking just 45 seconds to complete the whole process, but also ensures there is no wear & tear of tires. It maximises space utilisation too.
- Four-wheel driving – steering for flexible access.
- Jib with 230°amplitude, which can be hooked back for standard container transport.
- 55.4kw High Power engine for long lasting performance.
- Axle expansion & retraction at will to manage access in narrow spaces.
Specifications
Max. Working Height41.54m/136ft 3in
Max. Platform Height39.54m/129ft 9in
Max. Operating Range(+0.6m)24.10m/79ft 1in
Max. Platform Range23.50m/77ft 1in
Max. Down Probing Depth2.00m/6ft 7in
Overall Length(Stowed)16.50m/54ft 2in
Overall Length(Transport)11.17m/36ft 8in
Overall Width(Axle Expanded)4.15m/13ft 7in
Overall Width(Axle Retracted)2.44m/8ft
Overall Width(Transport)2.29m/7ft 6in
Overall Height(Stowed)2.83m/9ft 3in
Overall Height(Transport)2.55m/8ft 4in
Platform Size(Length×Width)2.44m×0.91m/8ft×2ft 12in
Turntable Tailswing1.39m/4ft 7in
Ground Clearance(Stowed/Raised)0.40m/1ft 4in
Wheelbase(Axle Expanded)4.07m/13ft 4in
Wheelbase(Axle Retracted)4.27m/14ft
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working Slope5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement230°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)2.99m/5.41m/10ft/17ft 9in
Tyres445/50/D710
Overall Weight21060kg/46429lb
Emergency Power System12V/110A×2
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank150L/39gal
Hydraulic Tank230L/60gal
Power SourceEngine
SeriesT Series
