BT44ERTTelescopic Boom LiftELECTRIC

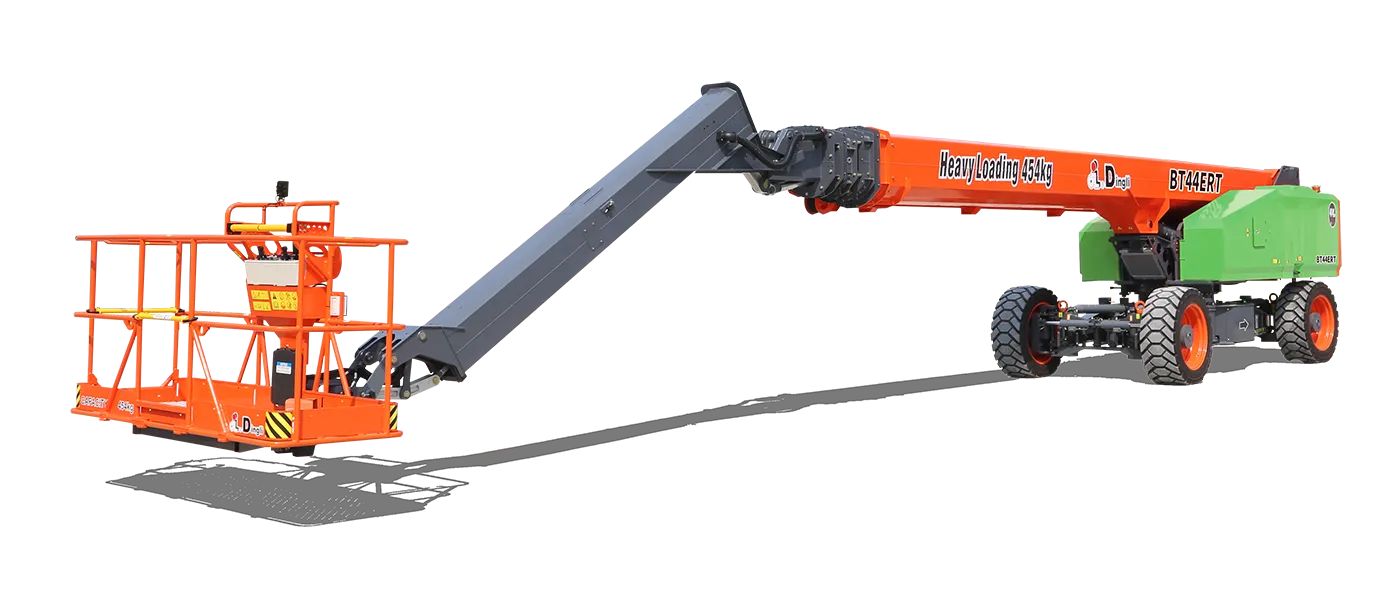

BT44ERT Telescopic Boom Lift
₹ 1,77,20,857
+ 18% GST = ₹ 2,09,10,611 incl.
44.44m/146ftmWorking Height
3Occupants
Description
Equipped with Cat3 safety architecture and full redundancy of electronic control software and hardware, BT44ERT is a standard Boom Lift developed by TEUPEN, Dingli’s German R&D center. Equipped with 40% higher action efficiency than other similar products in the industry, this efficient Boom is perfect for construction, maintenance, and a whole range of heavy lifting tasks.
Key Features
- Patented one key in-situ axle expansion not only saves time by taking just 45 seconds to complete the whole process, but also ensures there is no wear & tear of tires. It maximises space utilisation too.
- Four-wheel driving – steering for flexible access.
- Jib with 230°amplitude, which can be hooked back for standard container transport.
- Equipped with 360V200-230Ah modular high voltage power battery for long lasting performance – 1.5-hour fast charging.
- Axle expansion & retraction at will to manage access in narrow spaces.
Specifications
Max. Working Height44.44m/146ft
Max. Platform Height42.44m/139ft 3in

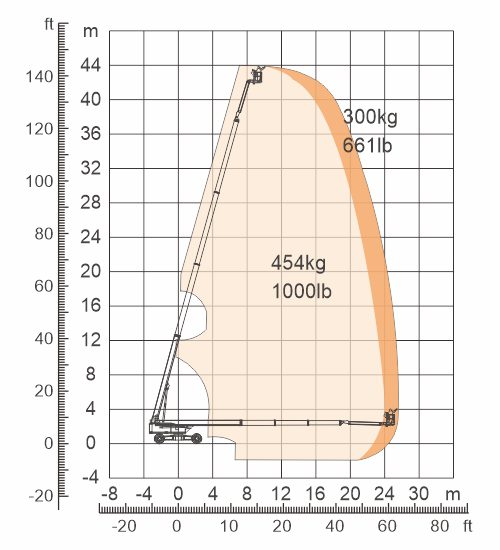

Max. Operating Range(+0.6m)25.60m/83ft 12in
Max. Platform Range25.00m/82ft
Max. Down Probing Depth2.00m/6ft 7in
Overall Length(Stowed)17.00m/55ft 9in
Overall Length(Transport)11.92m/39ft 2in
Overall Width(Axle Expanded)4.15m/13ft 7in
Overall Width(Axle Retracted)2.44m/8ft
Overall Width(Transport)2.29m/7ft 6in
Overall Height(Stowed)2.83m/9ft 3in
Overall Height(Transport)2.55m/8ft 4in
Platform Size(Length×Width)2.44m×0.91m/8ft×2ft 11in
Turntable Tailswing1.39m/4ft 7in
Ground Clearance(Stowed/Raised)0.40m/1ft 4in
Wheelbase(Axle Expanded)4.07m/13ft 4in
Wheelbase(Axle Retracted)4.27m/14ft
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working Slope5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement230°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)2.99m/5.41m/10ft/17ft 9in
Tyres445/50/D710
Overall Weight22600kg/49824lb
Lithium Battery358.4V/200Ah
Charger358.4V/32A
Emergency Power System12V/110A×2
Punp Motor360V/30kW
Hydraulic Tank230L/60gal
Power SourceElectric
SeriesT Series
