BT16CRT2Telescopic Boom LiftDIESEL

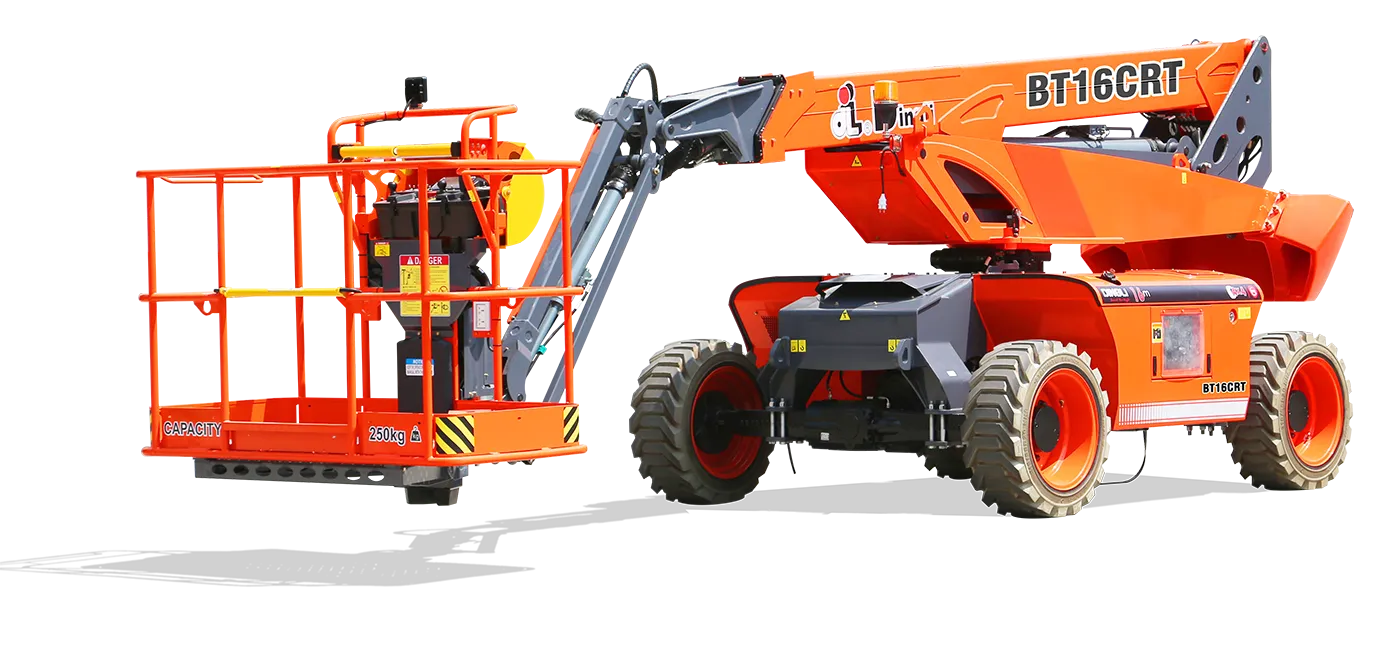

BT16CRT2 Telescopic Boom Lift
₹ 50,15,934
+ 18% GST = ₹ 59,18,802 incl.
16.33m/53ft 7inmWorking Height
2Occupants
Description
Equipped with a versatile and efficient horizontal and vertical outreach, BT16CRT2 is a lightweight boom lift developed by DINGLI’s domestic R&D center. Equipped with a low power engine, this lightweight boom lift is drivable at full height with a large load of 320kg. This energy saving boom lift can be used across industries for all construction, stacking, and maintenance tasks
Key Features
- Integrated axle for high performance
- Lightweight and durable
- Four-wheel driving – steering for flexible access
- Equipped with 18.2kw low-power engine
- Component downward design for enhanced stability
Specifications
Max. Working Height16.33m/53ft 7in
Max. Platform Height14.33m/47ft
Max. Operating Range(+0.6m)9.32m/30ft 7in
Max. Platform Range8.72m/28ft 7in
Flatbed Transport Dimensions (L×W×H)5.48m×2.44m×2.68m/17ft 12in×8ft×8ft 9in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing1.18m/3ft 10in
Ground Clearance(Stowed/Raised)0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight6700kg/14770lb
Diesel EngineKubota D1105/18.2kW
Diesel Tank115L/30gal
Hydraulic Tank145L/38gal
Power SourceEngine
SeriesD Series
