BT18CRT2Telescopic Boom LiftDIESEL

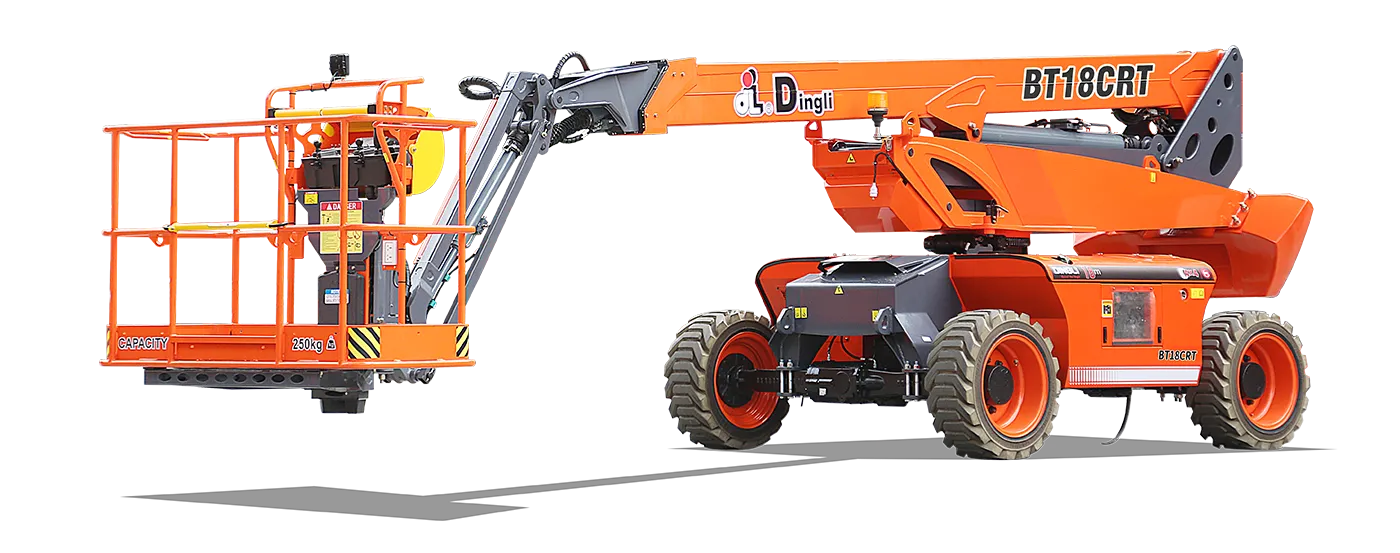

BT18CRT2 Telescopic Boom Lift
₹ 58,62,780
+ 18% GST = ₹ 69,18,080 incl.
18.26m/59ft 11inmWorking Height
2Occupants
Description
Integrated axle for high performance Lightweight and durable Four-wheel driving - steering for flexible access Equipped with 18.2kw low-power engine Component downward design for enhanced stability
Key Features
- Integrated axle for high performance
- Lightweight and durable
- Four-wheel driving – steering for flexible access
- Equipped with 18.2kw low-power engine
- Component downward design for enhanced stability
Specifications
Max. Working Height18.26m/59ft 11in
Max. Platform Height16.26m/53ft 4in
Max. Operating Range(+0.6m)11.32m/37ft 2in
Max. Platform Range10.72m/35ft 2in
Flatbed Transport Dimensions (L×W×H)6.48m×2.44mx2.68m/21ft 3in×8ft×8ft 9in
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing1.18m/3ft 10in
Ground Clearance(Stowed/Raised)0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight7300kg/16093lb
Diesel EngineKubota D1105/18.2kW
Diesel Tank115L/30gal
Hydraulic Tank145L/38gal
Power SourceEngine
SeriesD Series
