BT20CERT2Telescopic Boom LiftELECTRIC

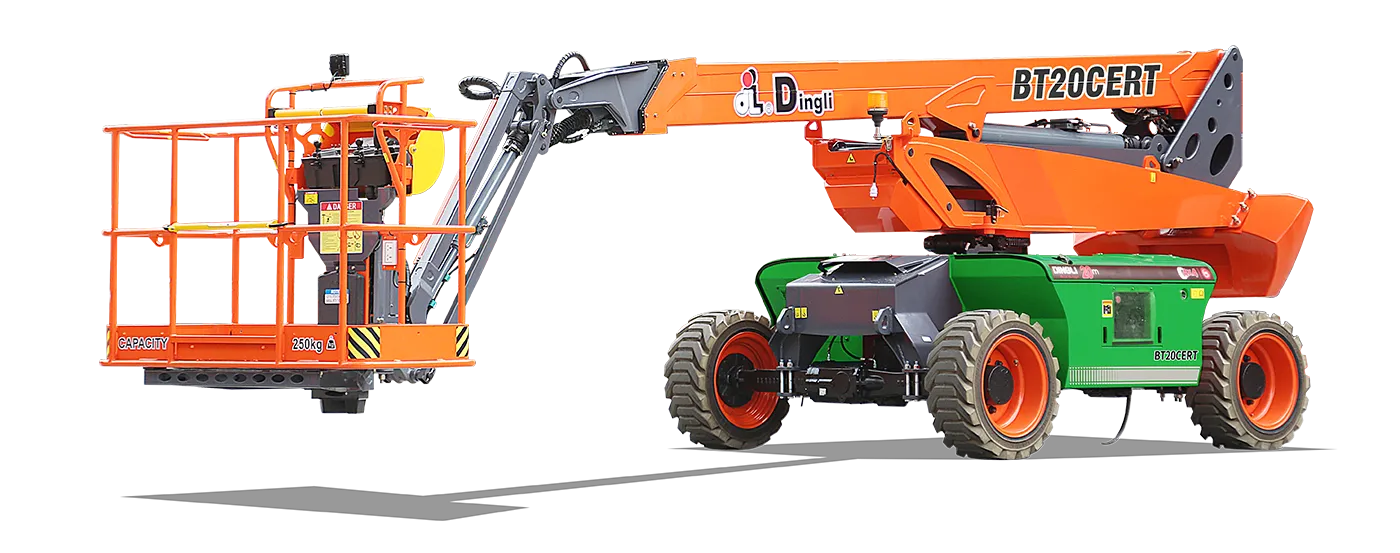

BT20CERT2 Telescopic Boom Lift
₹ 71,16,360
+ 18% GST = ₹ 83,97,305 incl.
20.23m/66ft 4inmWorking Height
2Occupants
Description
Drivable at full height with a large load of 320kg, BT20CERT2 is a lightweight boom lift developed by DINGLI’s domestic R&D center. Equipped with a modular design and enhanced stability, this energy saving boom lift facilitates a seamless horizontal and vertical outreach. Can be used across industries for all construction, stacking, and maintenance tasks
Key Features
- Integrated axle for high performance
- Lightweight and durable
- Four-wheel driving – steering for flexible access
- Equipped with 48V450Ah high-capacity lithium battery packs, 1.5-hour fast charging
- Component downward design for enhanced stability
Specifications
Max. Working Height20.23m/66ft 4in
Max. Platform Height18.23m/60ft
Max. Operating Range(+0.6m)13.36m/44ft
Max. Platform Range12.76m/41ft 10in
Flatbed Transport Dimensions (L×W×H)7.63m×2.44m×2.68m/25ft×8ft×9ft
Standard Container TransportAll Applicable
Platform Size(Length×Width)1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing1.24m/4ft 1in
Ground Clearance(Stowed/Raised)0.31m/1ft
Wheelbase2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)320kg/705lb
Max. Occupants2
Gradeability40%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement132°
Main Boom Maximum Angle75°
Turning Radius(Inside/Outside)3m/4.73m / 9ft 10in/15ft 6in
Tyres315/55D20
Overall Weight8600kg/18959lb
Battery48V/450Ah
Charger48VDC/60A
Driving Motor34AC/9kW
Lifting Motor34VAC/13kW
Hydraulic Tank145L/38gal
Power SourceElectric
SeriesD Series
