BT24ERTTelescopic Boom LiftELECTRIC

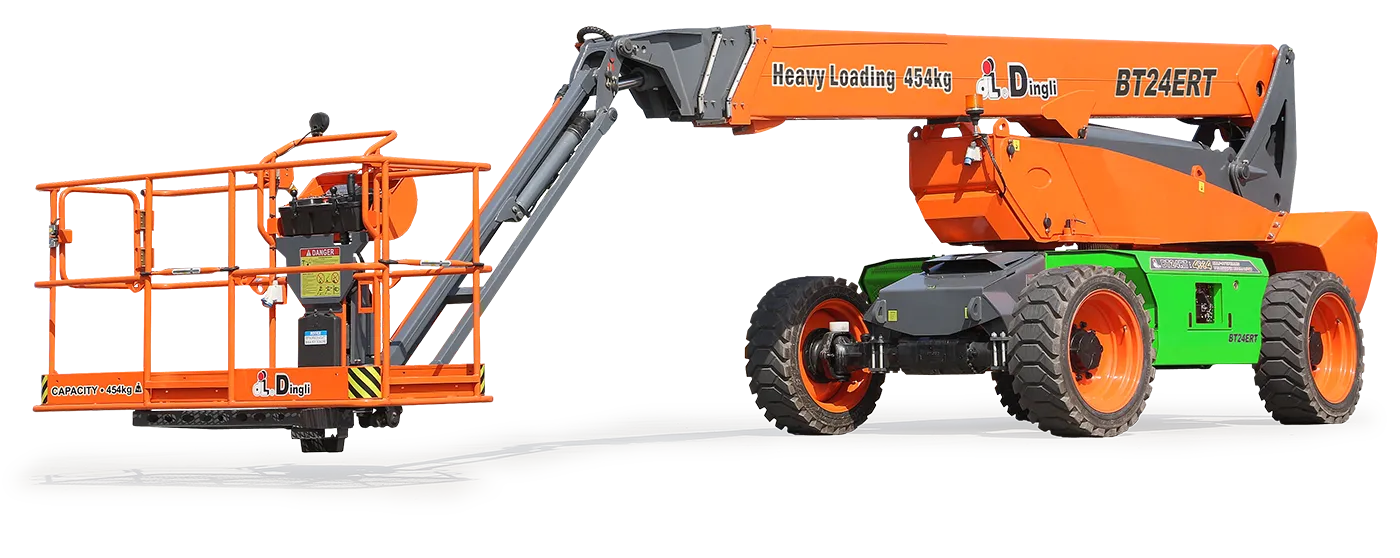

BT24ERT Telescopic Boom Lift
24.80m/81ft 4inmWorking Height
3Occupants
Description
Durable and geared for long lasting performance, BT24ERT is a regular jib boom lift developed by MAGNI, DINGLI’s Italian R&D center. Equipped with a high-power engine, this versatile boom lift is easy to use and can senselessly navigate rough terrains. Engineered with superior steel, this boom lift is suited for all your construction, maintenance, and heavy-duty tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V420AH high-capacity lithium battery packs and 1.5 hours fast charging
- Component downward design for enhanced stability
Specifications
Max. Working Height24.80m/81ft 4in
Max. Platform Height22.80m/74ft 10in
Max. Operating Range(+0.6m)17.90m/58ft 9in
Max. Platform Range17.30m/56ft 9in
Overall Length(Stowed)10.25m/33ft 8in
Overall Length(Transport)10.81m/35ft 6in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.87m/9ft 5in
Overall Height(Transport)2.59m/8ft 6in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)454kg/1000lb
Max. Occupants3
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight14300kg/31526lb
Lithium Battery80V/420Ah
Emergency Power System12V
Driving Motor54VAC/18kW
Hydraulic Tank165L/43gal
Power SourceElectric
SeriesM Series
