BT26BRTTelescopic Boom LiftDIESEL

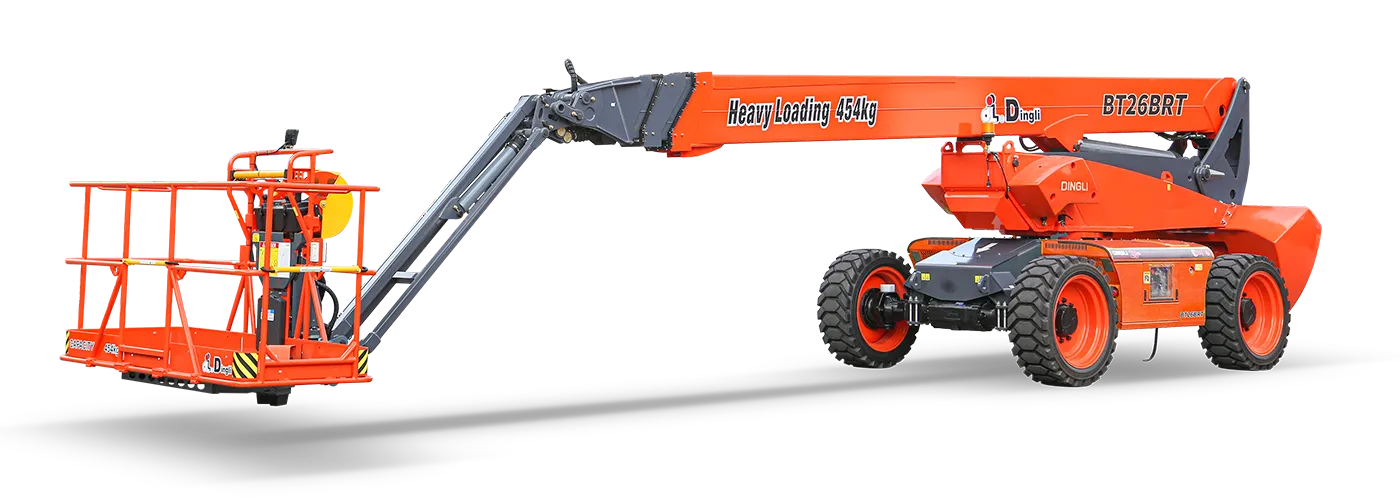

BT26BRT Telescopic Boom Lift
26.30m/86ft 3inmWorking Height
3Occupants
Description
Sturdy and designed to effortlessly navigate rough terrains, BT26BRT is a barb jib ideated and engineered for durability and rough terrain performance. Developed by MAGNI, DINGLI’s Italian R&D center, this boom lift is equipped with a modular design and a seamless horizontal and vertical outreach. BT26BRT is suited for all maintenance and construction tasks.
Key Features
- Equipped with a barb jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- 55.4kw High Power engine for long lasting performance
- Component downward design for enhanced stability
Specifications
Max. Working Height26.30m/86ft 3in
Max. Platform Height24.30m/79ft 9in
Max. Operating Range(+0.6m)19.40m/64ft
Max. Platform Range18.80m/62ft
Overall Length(Stowed)10.82m/35ft 6in
Overall Length(Transport)10.77m/35ft 4in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.87m/9ft 5in
Overall Height(Transport)2.59m/8ft 6in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)454kg/1000lb
Max. Occupants3
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight16090kg/35472lb
Emergency Power System12V
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank135L/35gal
Hydraulic Tank165L/43gal
Power SourceEngine
SeriesM Series
