BT28BERTTelescopic Boom LiftELECTRIC

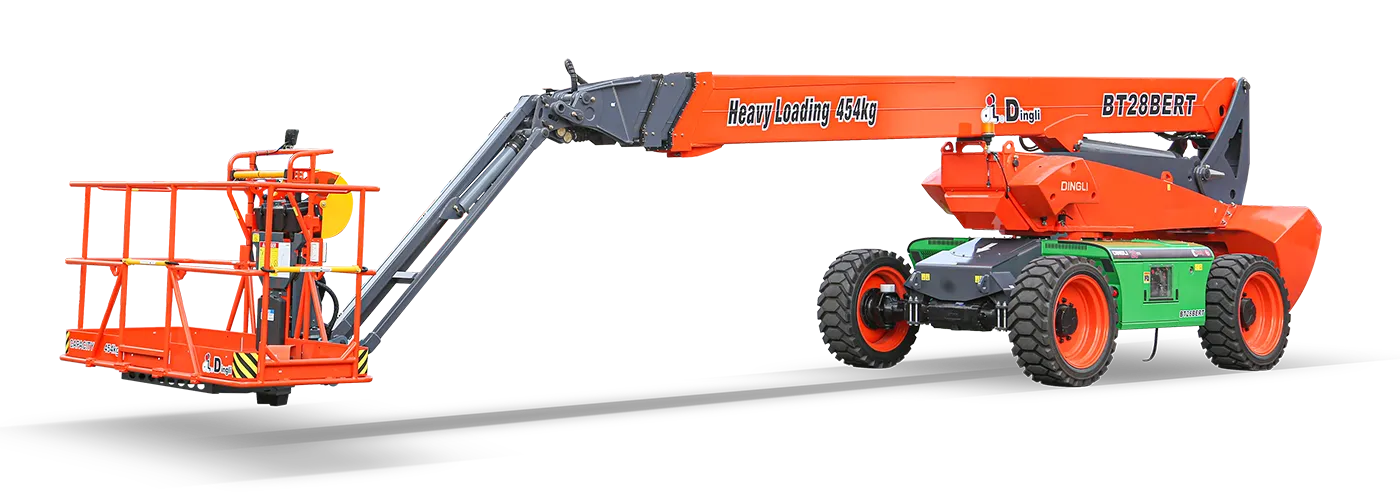

BT28BERT Telescopic Boom Lift
28.50m/93ft 10inmWorking Height
3Occupants
Description
Engineered for strong power and rough terrain performance, BT28BERT is a barb jib developed by MAGNI, DINGLI’s Italian R&D center. Equipped with a modular design for a seamless and versatile horizontal and vertical outreach, this boom lift is suited for all maintenance and construction tasks.
Key Features
- Equipped with a barb jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V520AH high-capacity lithium battery packs and 1.5 hours fast charging.
- Component downward design for enhanced stability
Specifications
Max. Working Height28.50m/93ft 10in
Max. Platform Height26.50m/87ft 3in
Max. Operating Range(+0.6m)21.80m/71ft 10in
Max. Platform Range21.20m/69ft 11in
Overall Length(Stowed)11.66m/38ft 3in
Overall Length(Transport)11.82m/38ft 9in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.87m/9ft 5in
Overall Height(Transport)2.59m/8ft 6in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)454kg/1000lb
Max. Occupants3
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight18400kg/40565lb
Lithium Battery80V/520Ah
Emergency Power System12V
Driving Motor54V/18kW
Hydraulic Tank165L/43gal
Power SourceElectric
SeriesM Series
