BT30SHRTTelescopic Boom LiftHYBRID

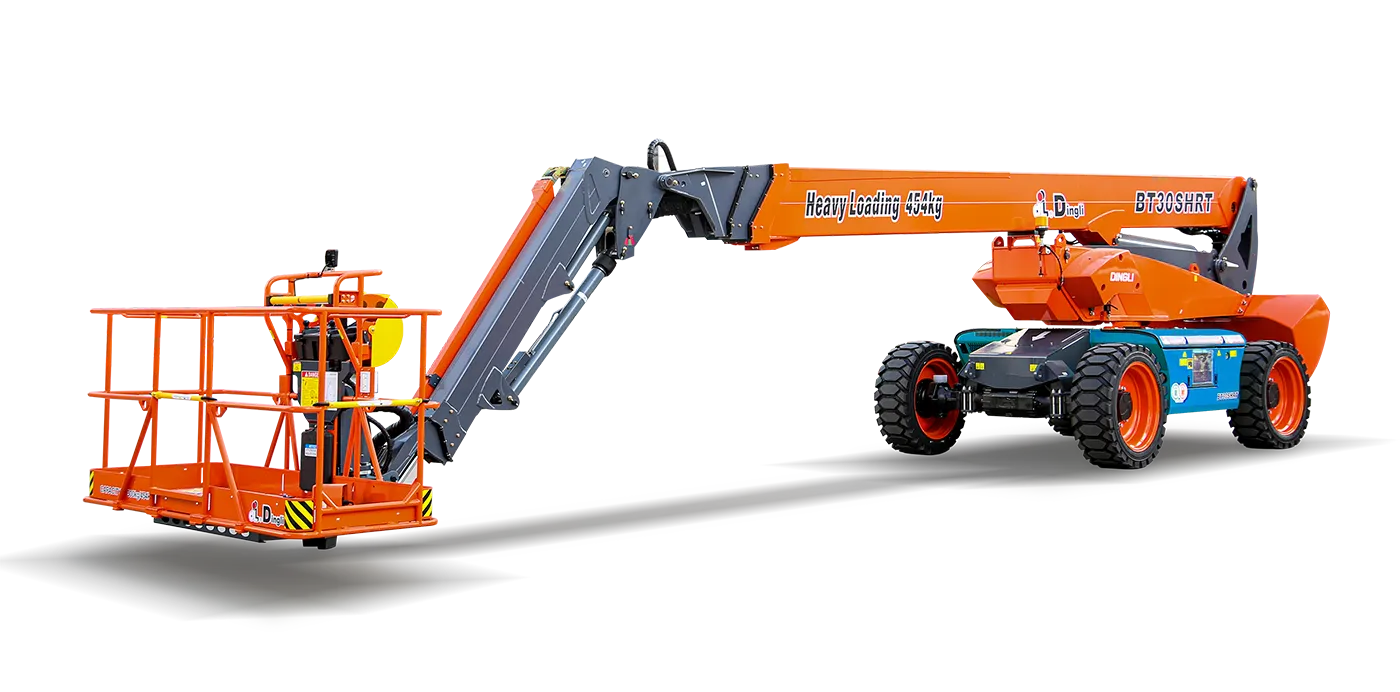

BT30SHRT Telescopic Boom Lift
30.30m/99ft 1inmWorking Height
3Occupants
Description
Offering enhanced operational efficiency and off-road accessibility, BT30SHRT is a telescopic jib boom lift developed by MAGNI, Dingli’s Italian R&D center. Offering a greater horizontal and vertical outreach, this versatile boom lift is ideal for tough working conditions and perfect to manage a wide range of heavy lifting tasks across industries.
Key Features
- Equipped with a telescopic jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V/420AH high-capacity lithium battery packs with a fuel tank and built in range extender.
- Component downward design for enhanced stability
Specifications
Max. Working Height30.30m/99ft 1in
Max. Platform Height28.30m/92ft 6in

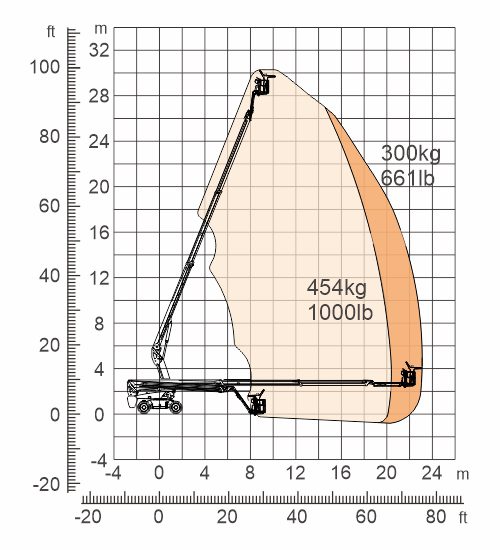

Max. Operating Range(+0.6m)23.00m/75ft 6in
Max. Platform Range22.40m/73ft 6in
Overall Length(Stowed)12.30m/40ft 4in
Overall Length(Transport)12.00m/39ft 4in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.87m/9ft 5in
Overall Height(Transport)2.59m/8ft 6in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.73mph
Travel Speed(Raised)1.1km/h / 0.68mph
Max. Working SlopeX-5°/Y- 5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight18900kg/41667lb
Lithium Battery80V/420Ah
Emergency Power System12V
Driving Motor54V/18kW
Range Extended EngineKubota Z482/9.8kW
Diesel Tank110L/29gal
Hydraulic Tank165L/43gal
Power SourceHybrid
SeriesM Series
