BT34BRTTelescopic Boom LiftDIESEL

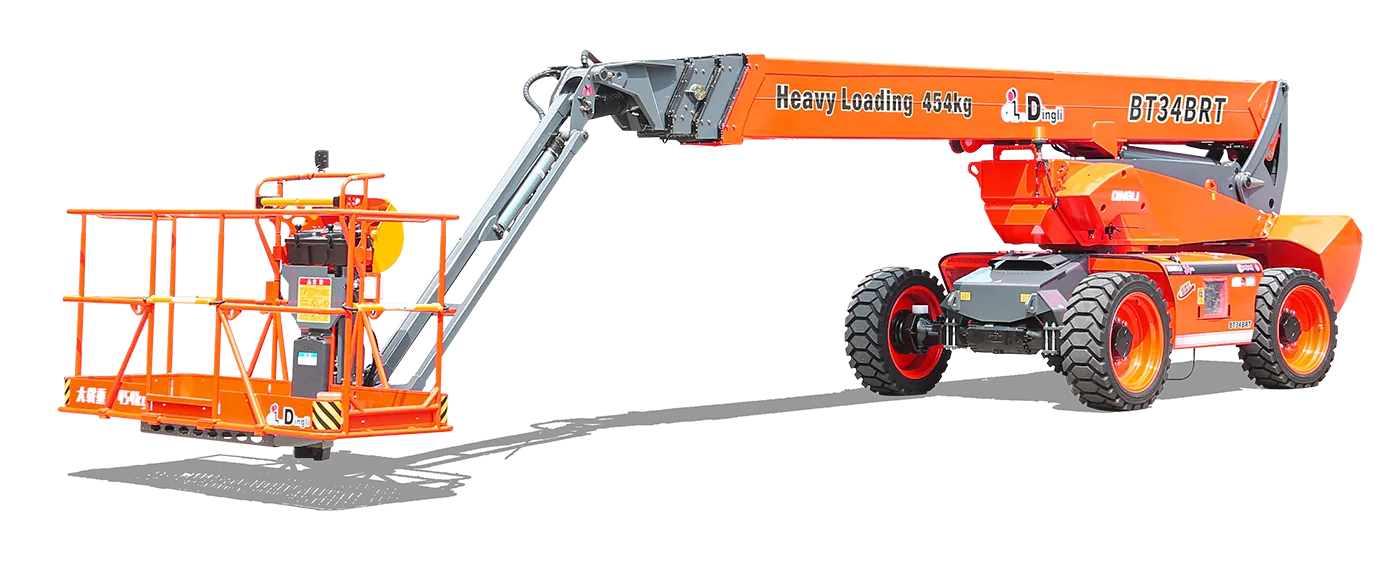

BT34BRT Telescopic Boom Lift
34.46m/113ftmWorking Height
3Occupants
Description
Engineered for rough terrain compatibility, BT34BRT is a versatile boom lift developed by MAGNI, Dingli’s Italian R&D center. Designed to facilitate an enhanced horizontal and vertical outreach, this efficient boom lift makes easy work of construction and maintenance tasks.
Key Features
- Equipped with barb jib
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- 55.4kw High Power engine for long lasting performance
- Component downward design for enhanced stability
Specifications
Max. Working Height34.46m/113ft
Max. Platform Height32.46m/106ft 5in
Max. Operating Range(+0.6m)21.85m/71ft 6in
Max. Platform Range21.25m/69ft 7in
Overall Length(Stowed)9.01m/29ft 5in
Overall Width(Stowed)2.50m/8ft 2in
Overall Height(Stowed)2.91m/9ft 5in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight19290kg/42219lb
Emergency Power System12V
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank135L/35gal
Hydraulic Tank165L/43gal
Power SourceEngine
SeriesM Series
