BT34ERTTelescopic Boom LiftELECTRIC

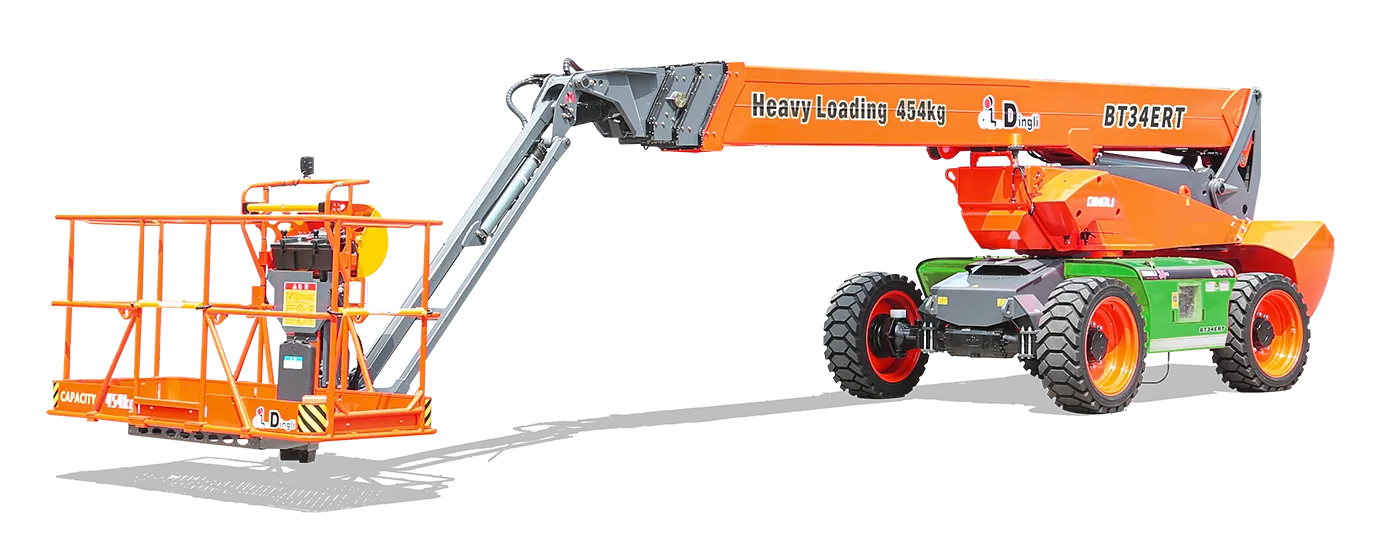

BT34ERT Telescopic Boom Lift
34.14m/112ftmWorking Height
3Occupants
Description
Equipped with integrated axle, strong power, and rough terrain compatibility, BT34ERT is a standard boom lift developed by MAGNI, Dingli’s Italian R&D center. Designed to facilitate an enhanced horizontal and vertical operating range, this efficient boom lift makes easy work of construction and maintenance tasks.
Key Features
- Integrated axle for high performance
- Four-wheel driving – steering for flexible access
- 100% hydraulic differential lock for effortless rough terrain navigation
- Equipped with 80V520AH high-capacity lithium battery packs for long lasting performance – 1.5-hour fast charging
- Component downward design for enhanced stability
Specifications
Max. Working Height34.14m/112ft
Max. Platform Height32.14m/105ft 5in
Max. Operating Range(+0.6m)21.60m/70ft 10in
Max. Platform Range21.00m/68ft 11in
Overall Length(Stowed)11.63m/38ft 2in
Overall Length(Transport)11.79m/38ft 8in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.86m/9ft 5in
Overall Height(Transport)2.58m/8ft 6in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)300kg/454kg / 661lb/1000lb
Max. Occupants3
Gradeability30%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle68°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight19150kg/42219lb
Lithium Battery80V/520Ah
Emergency Power System12V
Driving Motor54V/18kW
Hydraulic Tank165L/43gal
Power SourceElectric
SeriesM Series
