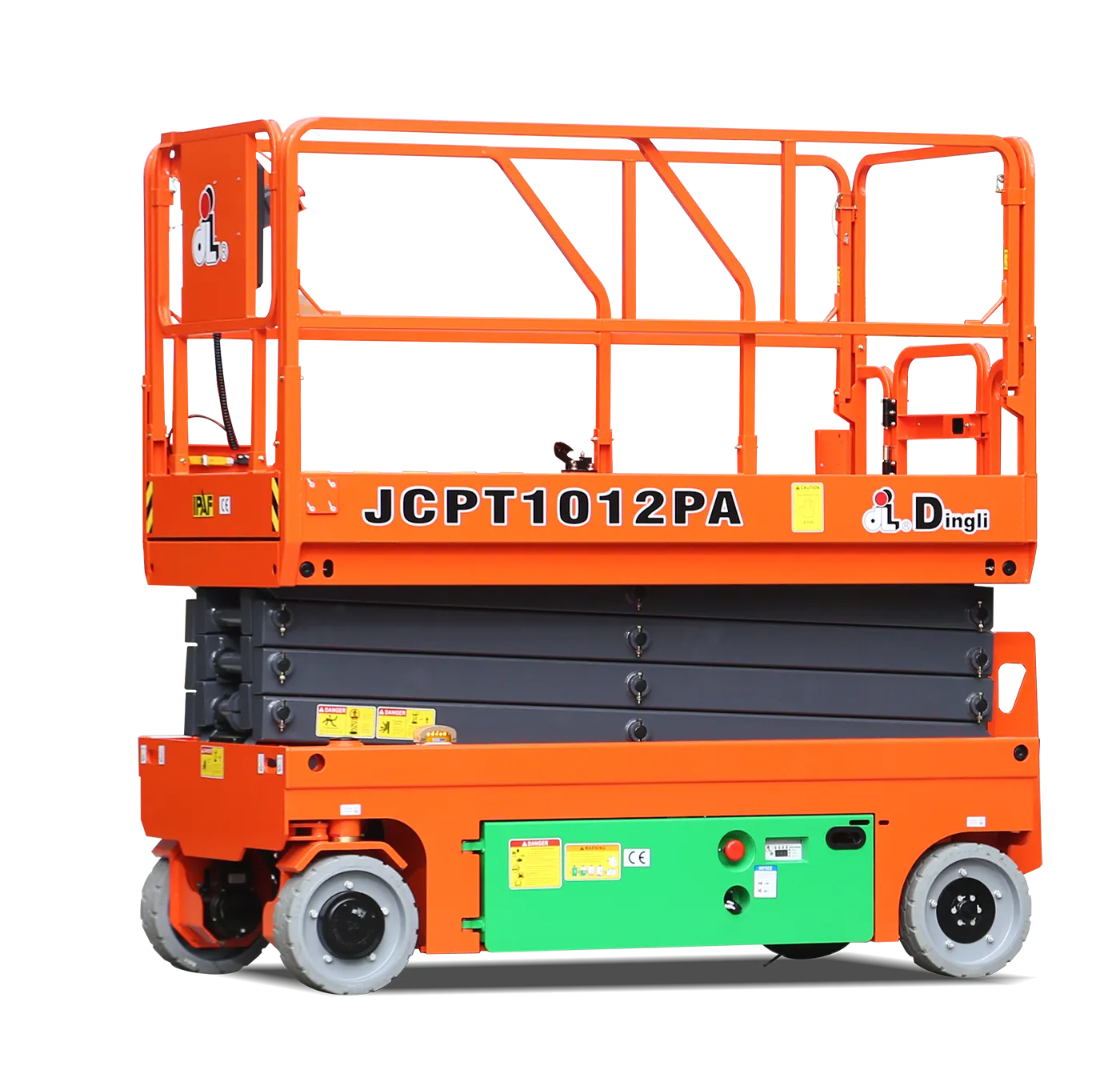

JCPT1012PAOil-Free Scissor Lift
JCPT1012PA Oil-Free Scissor Lift
10.00m/32ft 10inmWorking Height
2Occupants
Description
JCPT1012PA is a revolutionary oil-free scissor lift that uses electric actuators for lifting, lowering, and steering. With built-in position sensors and variable torque controls, this eco-friendly scissor lift is equipped with maintenance-free permanent magnet synchronous motor and AGM battery. This versatile scissor lift is perfect for a range of construction, maintenance, and decorative tasks.
Key Features
- Low-noise, 0 emissions
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/185Ah high-capacity lithium batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
- Overall width is 1.15m
Specifications
Max. Working Height10.00m/32ft 10in
Max. Platform Height8.00m/26ft 3in
Overall Length (With Ladder)2.48m/8ft 2in
Overall Width1.15m/3ft 9in
Overall Height (Rails Up)2.36m/7ft 9in
Overall Height (Rails Down)1.83m/6pt
Platform Size (Length×Width)2.27m×1.12m/7ft 5in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance (Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius (Inside/Outside)0m/2.20m / 0in/7ft 3in
Tyresφ381×127mm
S.W.L350kg/771lb
S.W.L On Extension113kg/249lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)5.0km/h / 3.10mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed34/34sec
Overall Weight (Lead-acid Battery)2850kg/6283lb
Battery24V/185Ah
Charger24V/30A
Driving Motor2x15VAC/0.87kw
Lifting Motor24VDC/3.0kw
Power SourceElectric
