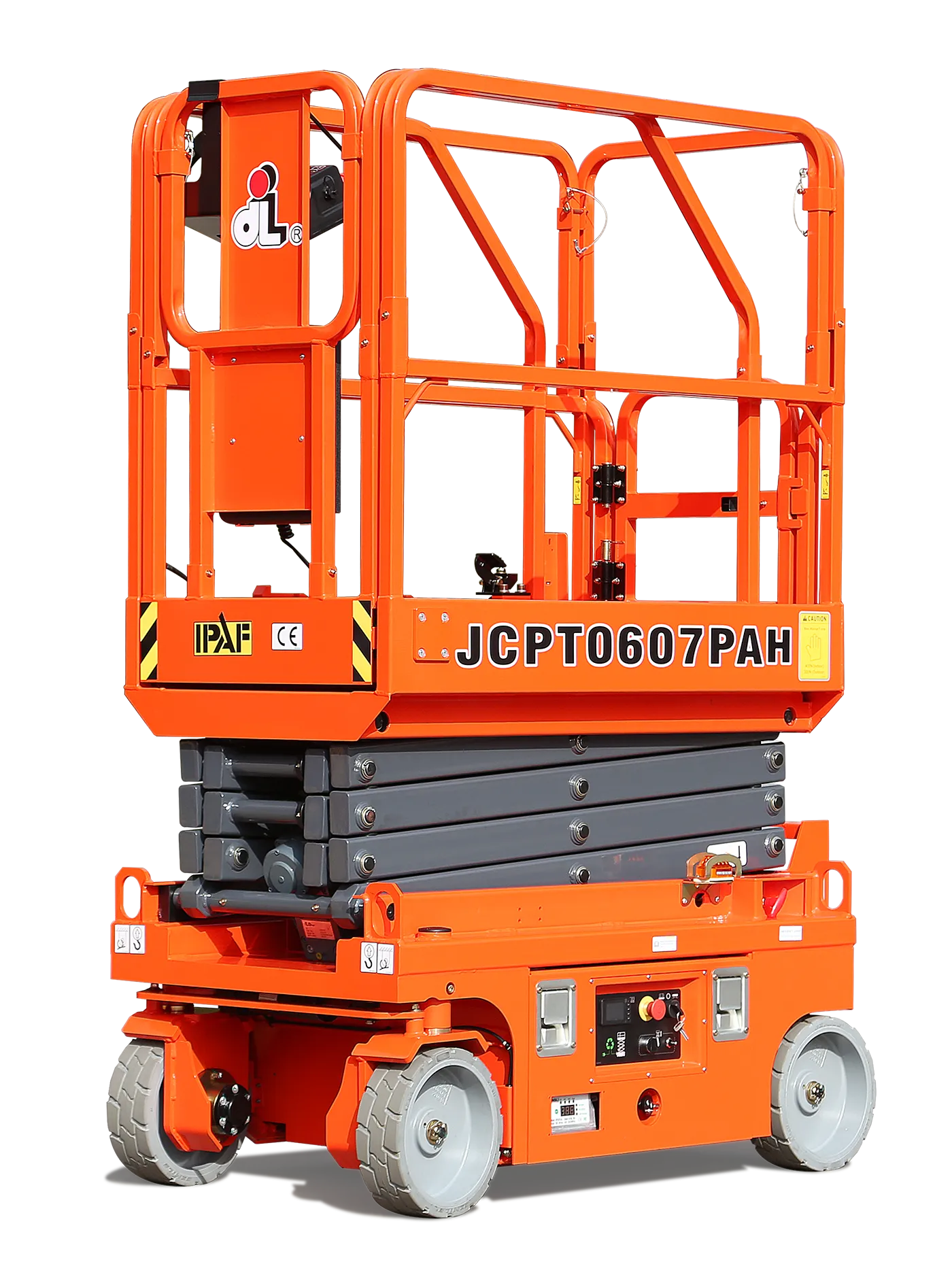

JCPT0607PAHOil-Free Scissor Lift
JCPT0607PAH Oil-Free Scissor Lift
5.60m/18ft 5inmWorking Height
2Occupants
Description
Specially designed for working at building mezzanine aerial working, JCPT0607PAH is equipped with large wheels for better obstacle-crossing ability. Equipped with electric actuators for lifting, lowering, and steering, this mini scissor lift comes with built-in position sensors, variable torque controls, maintenance-free permanent magnet synchronous motor, and AGM battery.
Key Features
- Low-noise, 0 emissions
- Compact, lightweight, and flexible
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/85Ah high-capacity lead-acid batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
- Overall width is 0.76m
Specifications
Max. Working Height5.60m/18ft 5in
Max. Platform Height3.60m/11ft 10in
Overall Length (Without Ladder)1.46m/4ft 9in
Overall Width0.76m/2ft 6in
Overall Height (Rails Up)2.06m/6ft 9in
Overall Height (Rails Down)1.69m/5ft 7in
Platform Size (Length×Width)1.29m×0.70m/4ft 3in×2ft 4in
Platform Extension Size0.60m/2ft
Ground Clearance (Stowed/Raised)0.07m/0.015m / 3in/1in
Wheelbase1.06m/3ft 6in
Turning Radius (Inside/Outside)0.40m/1.55m / 1ft 4in/5ft 1in
Tyresφ305×100mm
S.W.L240kg/529lb
S.W.L On Extension100kg/220lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed22/22sec
Overall Weight (Lead-acid Battery)950kg/2094lb
Battery(Lead-acid Battery)24V/85Ah
Charger24V/15A
Driving Motor2×24VDC/0.7kW
Lifting Motor24VDC/1.4kW
Power SourceElectric
