JCPT0807PAOil-Free Scissor Lift

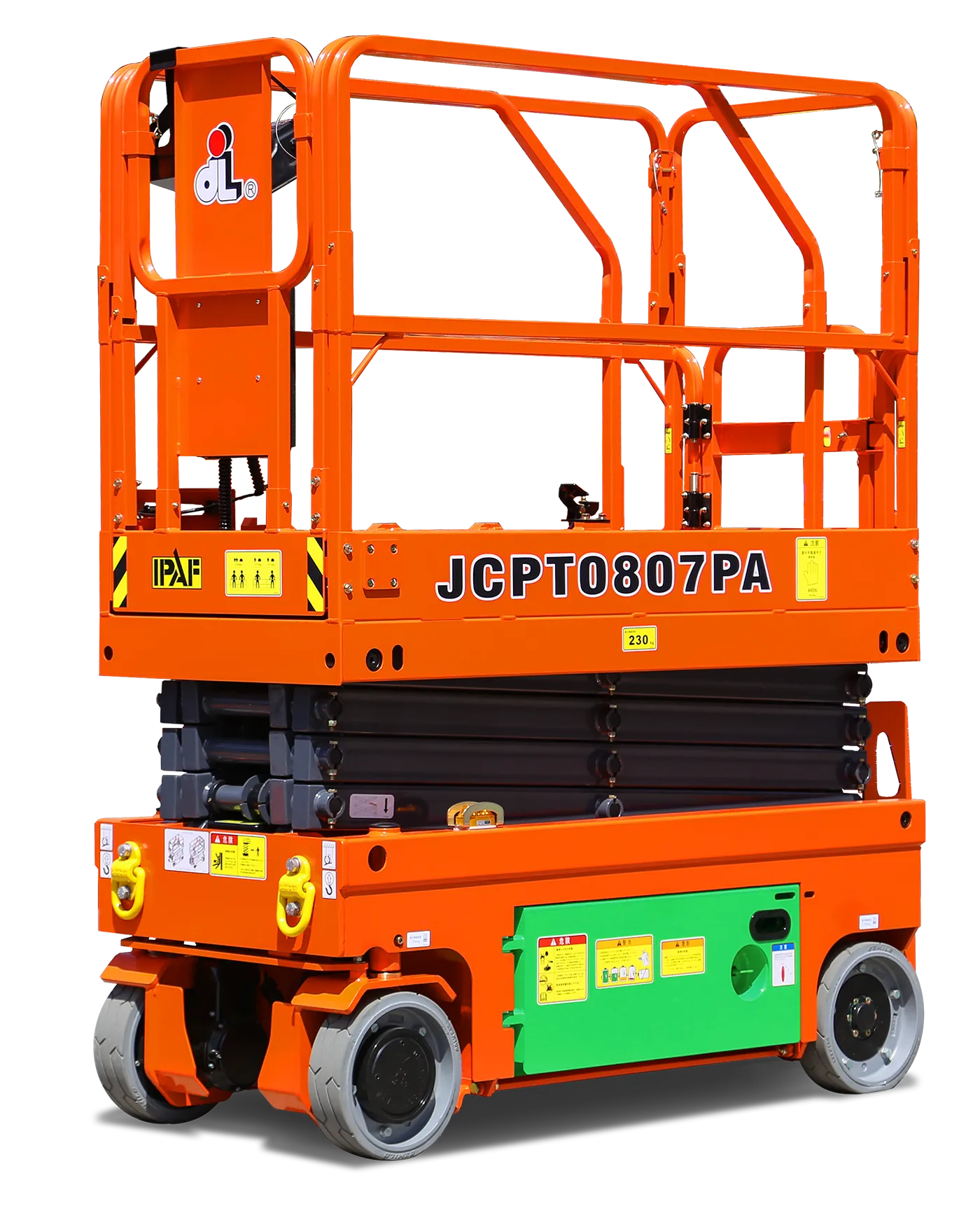

JCPT0807PA Oil-Free Scissor Lift
₹ 12,12,262
+ 18% GST = ₹ 14,30,469 incl.
7.80m/25ft 7inmWorking Height
2/1Occupants
Description
Designed with electric actuators for lifting, lowering, and steering, JCPT0807PA is a robust oil-free scissor lift with built-in position sensors and variable torque controls. Eco-friendly and easy to maneuver, this safety enhanced scissor lift is equipped with maintenance-free permanent magnet synchronous motor and AGM battery. This versatile scissor lift is engineered for a range of construction, maintenance, and decorative tasks.
Key Features
- Low-noise, 0 emissions
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/185Ah high-capacity lithium batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
Specifications
Max. Working Height7.80m/25ft 7in
Max. Platform Height5.80m/19ft
Overall Length (Without Ladder)1.86m/6ft 1in
Overall Width0.76m/2ft 6in
Overall Height (Rails Up)2.15m/7ft 1in
Overall Height (Rails Down)1.83m/6ft
Platform Size (Length×Width)1.67m×0.74m/5ft 6in×2ft 5in
Platform Extension Size0.90m/2ft 11in
Ground Clearance (Stowed/Raised)0.09m/0.016m / 4in/1in
Wheelbase1.36m/4ft 6in
Turning Radius (Inside/Outside)0m/1.64m / 0in/5ft 5in
Tyresφ323×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/1
Gradeability25%
Travel Speed(Stowed)4.5km/h / 2.80mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed25/25sec
Overall Weight (Lead-acid Battery)1650kg/3637lb
Battery(Lead-acid Battery)24V/185Ah
Charger24V/30A
Driving Motor2x15VAC/0.5kw
Lifting Motor24VDC/1.4kw
Power SourceElectric
