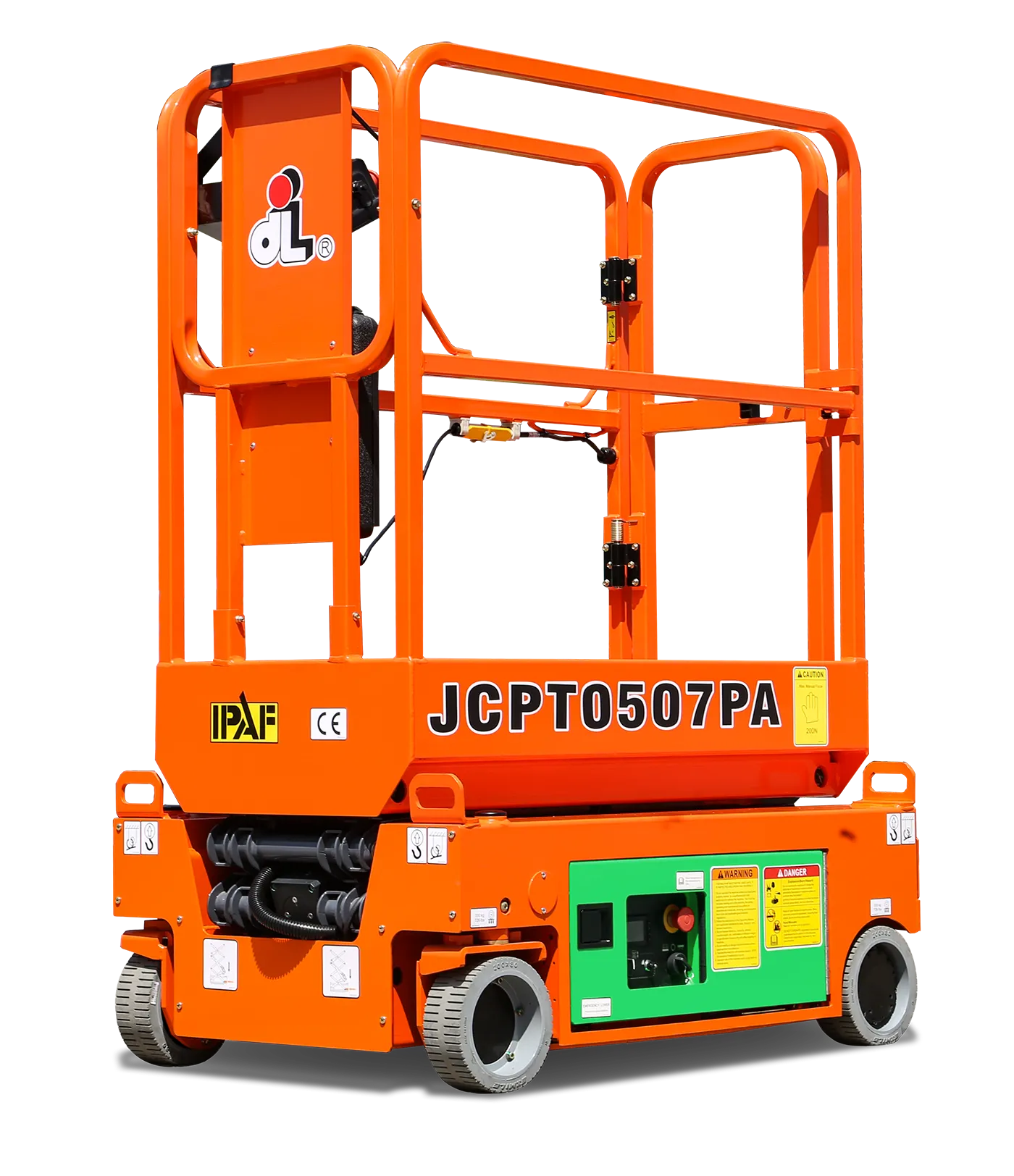

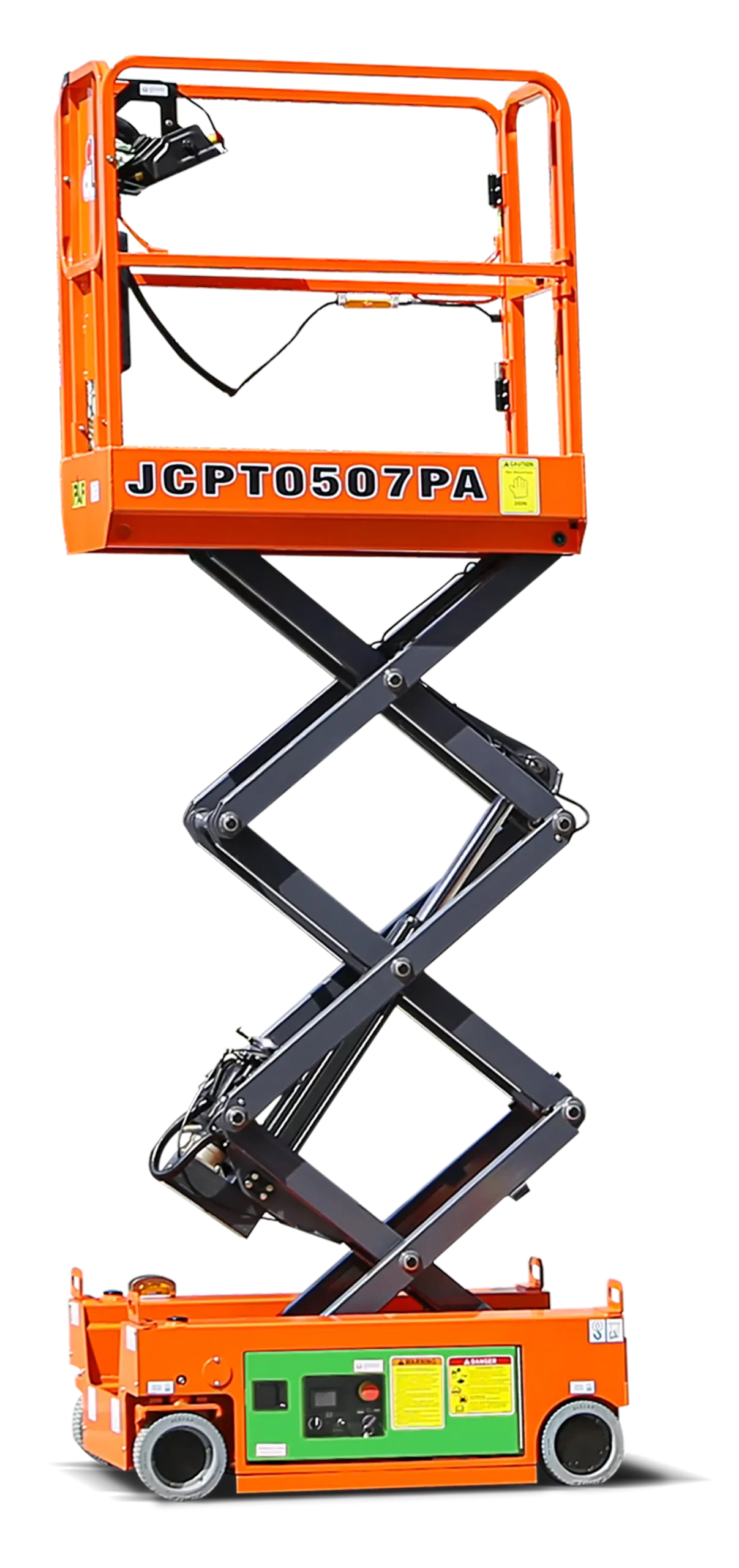

JCPT0507PAOil-Free Scissor Lift
JCPT0507PA Oil-Free Scissor Lift
₹ 7,65,698
+ 18% GST = ₹ 9,03,524 incl.
5.05m/16ft 7inmWorking Height
1Occupants
Description
Environmentally friendly and specially designed for building mezzanine aerial working, JCPT0507PA is equipped with electric actuators for lifting, lowering, and steering. With built-in position sensors and variable torque controls, this compact scissor lift is equipped with maintenance-free permanent magnet synchronous motor and AGM battery.
Key Features
- Low-noise, 0 emissions
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/55Ah high-capacity lithium batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
- Overall width is 0.77m
Specifications
Max. Working Height5.05m/16ft 7in
Max. Platform Height3.05m/10ft
Overall Length (Without Ladder)1.18m/3ft 10in
Overall Length (With Ladder)1.33m/4ft 4in
Overall Width0.77m/2ft 6in
Overall Height (Rails Up)1.60m/5ft 3in
Platform Size (Length×Width)1.16m×0.565m/3ft 10in×1ft 10in
Ground Clearance (Stowed/Raised)0.06m/0.016m / 2in/1in
Wheelbase0.95m/3ft 1in
Turning Radius (Inside/Outside)0.45m/1.20m / 1ft 6in/3ft 11in
Tyresφ200×80mm
S.W.L230kg/507lb
Max. Occupants1
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.4km/h / 0.25mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed20/20sec
Overall Weight (Lead-acid Battery)570kg/1256lb
Overall Weight (Lithium Battery)540kg/1190lb
Battery(Lead-acid Battery)24V/55Ah
Battery(Lithium Battery)24V/63Ah
Charger24V/15A
Driving Motor2×24V/0.6kW
Lifting Motor24V/1.4kW
Power SourceElectric
