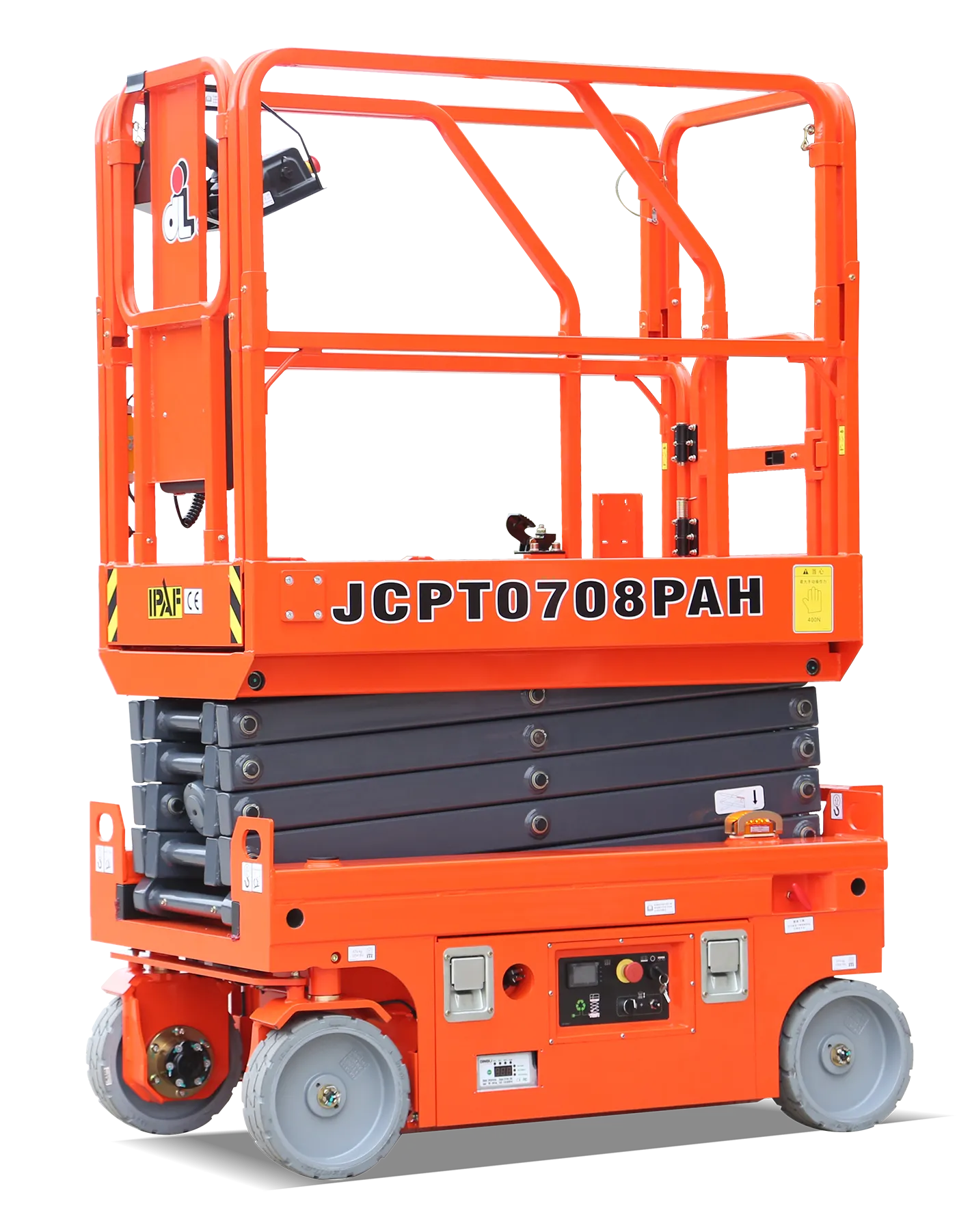

JCPT0708PAHOil-Free Scissor Lift
JCPT0708PAH Oil-Free Scissor Lift
7.60m/24ft 11inmWorking Height
2/0Occupants
Description
Designed with large wheels for better obstacle-crossing ability, JCPT0708PAH is equipped with electric actuators for lifting, lowering, and steering. With built-in position sensors and variable torque controls, this compact scissor lift is equipped with maintenance-free permanent magnet synchronous motor and AGM battery. This robust scissor lift is perfect for a range of construction, maintenance, and decorative tasks.
Key Features
- Low-noise, 0 emissions
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/115Ah high-capacity lead-acid batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
- Overall width is 0.81m
Specifications
Max. Working Height7.60m/24ft 11in
Max. Platform Height5.60m/18ft 4in
Overall Length (Without Ladder)1.54m/5ft 1in
Overall Width0.81m/2ft 8in
Overall Height (Rails Up)2.09m/6ft 10in
Overall Height (Rails Down)1.73m/5ft 8in
Platform Size (Length×Width)1.37m×0.70m/4ft 6in×2ft 4in
Platform Extension Size0.60m/2ft
Ground Clearance (Stowed/Raised)0.07m/0.015m / 3in/1in
Wheelbase1.15m/3ft 9in
Turning Radius (Inside/Outside)0.45m/1.60m / 1ft 6in/5ft
Tyresφ305×100mm
S.W.L230kg/507lb
S.W.L On Extension113kg/249lb
Max. Occupants2/0
Gradeability25%
Travel Speed(Stowed)4.0km/h / 2.49mph
Travel Speed(Raised)0.6km/h / 0.37mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed24/24sec
Overall Weight (Lead-acid Battery)1340kg/2954lb
Battery(Lead-acid Battery)24V/115Ah
Charger24V/15A
Driving Motor2×24VDC/0.7kW
Lifting Motor24VDC/1.8kW
Power SourceElectric
