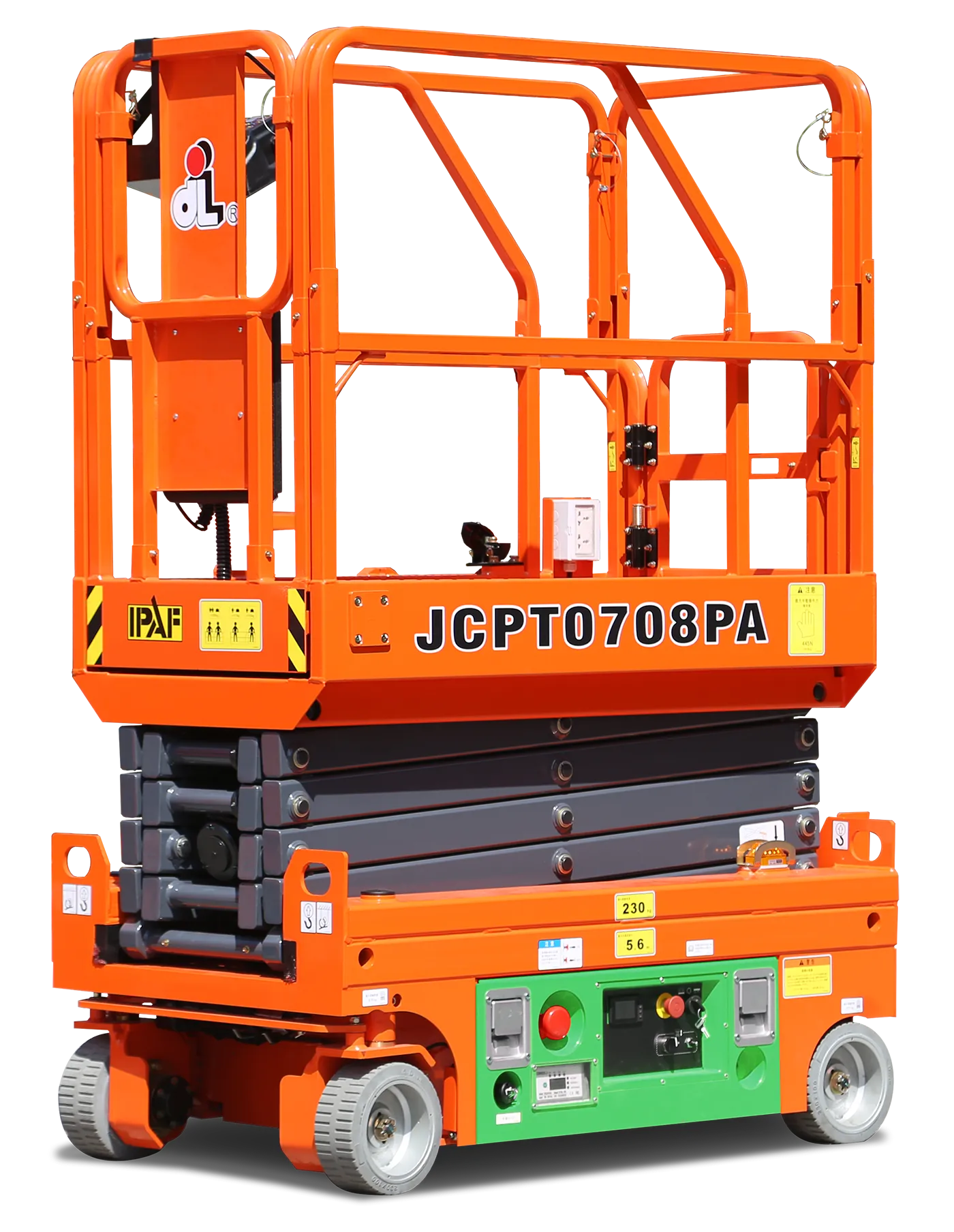

JCPT0708PAOil-Free Scissor Lift
JCPT0708PA Oil-Free Scissor Lift
₹ 10,84,707
+ 18% GST = ₹ 12,79,954 incl.
28.10m/92ft 2inmWorking Height
2Occupants
Description
Engineered for durability and eco-friendly operations, JCPT0708PA is equipped with electric actuators for lifting, lowering, and steering. With built-in position sensors and variable torque controls, this compact scissor lift is equipped with maintenance-free permanent magnet synchronous motor and AGM battery. This robust scissor lift is perfect for a range of construction, maintenance, and decorative tasks.
Key Features
- Low-noise, 0 emissions
- Proportional joystick controls
- Self-gravity lowering system for enhanced stability and safety
- 30% enhanced energy saving when compared to traditional hydraulic lifts
- High levels of dust and water resistance
- Real-time data monitoring
- Equipped with 24V/115Ah high-capacity lead-acid batteries with charger
- Synergistic drives enable better temperature, load, and variable torque controls.
- Overall width is 0.81m
Specifications
Max. Working Height28.10m/92ft 2in
Max. Platform Height26.10m/85ft 8in
Max. Operating Range(+0.6m)19.40m/63ft 8in
Max. Platform Range18.80m/61ft 8in
Max. Up And Over Clearance9.14m/30ft
Max. Down Probing Depth6.61m/21ft 8in
Overall Length(Stowed)11.83m/38ft 10in
Overall Length(Transport)12.03m/39ft 6in
Overall Width(Stowed)2.50m/8ft 2in
Overall Width(Transport)2.28m/7ft 6in
Overall Height(Stowed)2.89m/9ft 6in
Overall Height(Transport)2.61m/8ft 7in
Platform Size(Length×Width)2.44m×0.91m/8ft×3ft
Turntable Tailswing1.61m/5ft 3in
Ground Clearance(Stowed/Raised)0.41m/1ft 4in
Wheelbase2.80m/9ft 2in
S.W.L(Unrestricted/Restricted)250kg/551lb
Max. Occupants2
Gradeability45%
Travel Speed(Stowed)6.0km/h / 3.70mph
Travel Speed(Raised)1.1km/h / 0.70mph
Max. Working SlopeX-5°/Y-5°
Turret Rotation360°Continuous
Platform Rotation180°
Jib Movement135°
Main Boom Maximum Angle72°
Turning Radius(Inside/Outside)1.87m/3.22m / 6ft 2in/10ft 7in
Tyres385/45-28
Overall Weight18400kg/40565lb
Emergency Power System12V
Diesel EngineDeutz TD2.9 L4/55.4kW
Diesel Tank135L/35gal
Hydraulic Tank165L/43gal
Power SourceElectric
