JCPT0808HAElectric Slab Scissor LiftELECTRIC

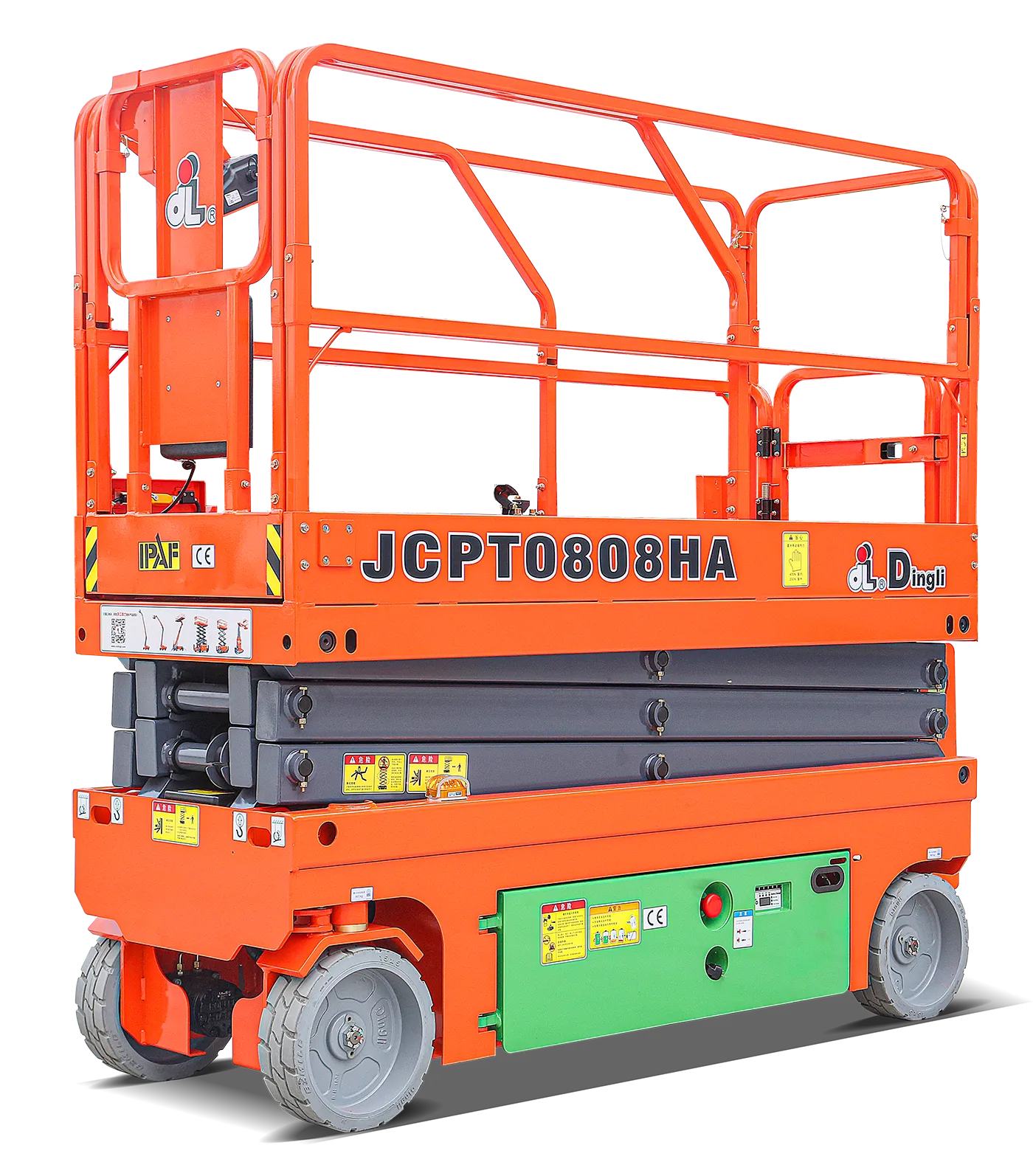

JCPT0808HA Electric Slab Scissor Lift
₹ 11,03,940
+ 18% GST = ₹ 13,02,649 incl.
8.00m/26ft 3inmWorking Height
2Occupants
Description
Redefining operational efficiency with enhanced security features, JCPT0808HA is equipped with a hydraulic pump with AC motor for lifting and driving. Waterproof and robust, this maintenance-free scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Overall width is 0.83m
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/185Ah high-capacity battery pack
Specifications
Max. Working Height8.00m/26ft 3in
Max. Platform Height6.00m/19ft 8in
Overall Length(With Ladder)2.48m/8ft 2in
Overall Width0.83m/2ft 9in
Overall Height(Rails Up)2.23m/7ft 4in
Overall Height(Rails Down)1.87m/6ft 2in
Platform Size(Length×Width)2.27m×0.81m/7ft 5in×2ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius(Inside/Outside)0m/2.10m / 0in/6ft 11in
Tyresφ381×127mm
S.W.L380kg/837lb
S.W.L On Extension113kg/249lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed30/40sec
Overall Weight(Lead-acid Battery)2120kg/4673lb
Overall Weight(Lithium Battery)2060kg/4541lb
Hydraulic Tank20L/5gal 3pt
Battery24V/185Ah
Charger24V/30A
Lifting Motor15VAC/3.5kW
Power SourceHydraulic
