JCPT1012HAElectric Slab Scissor LiftELECTRIC

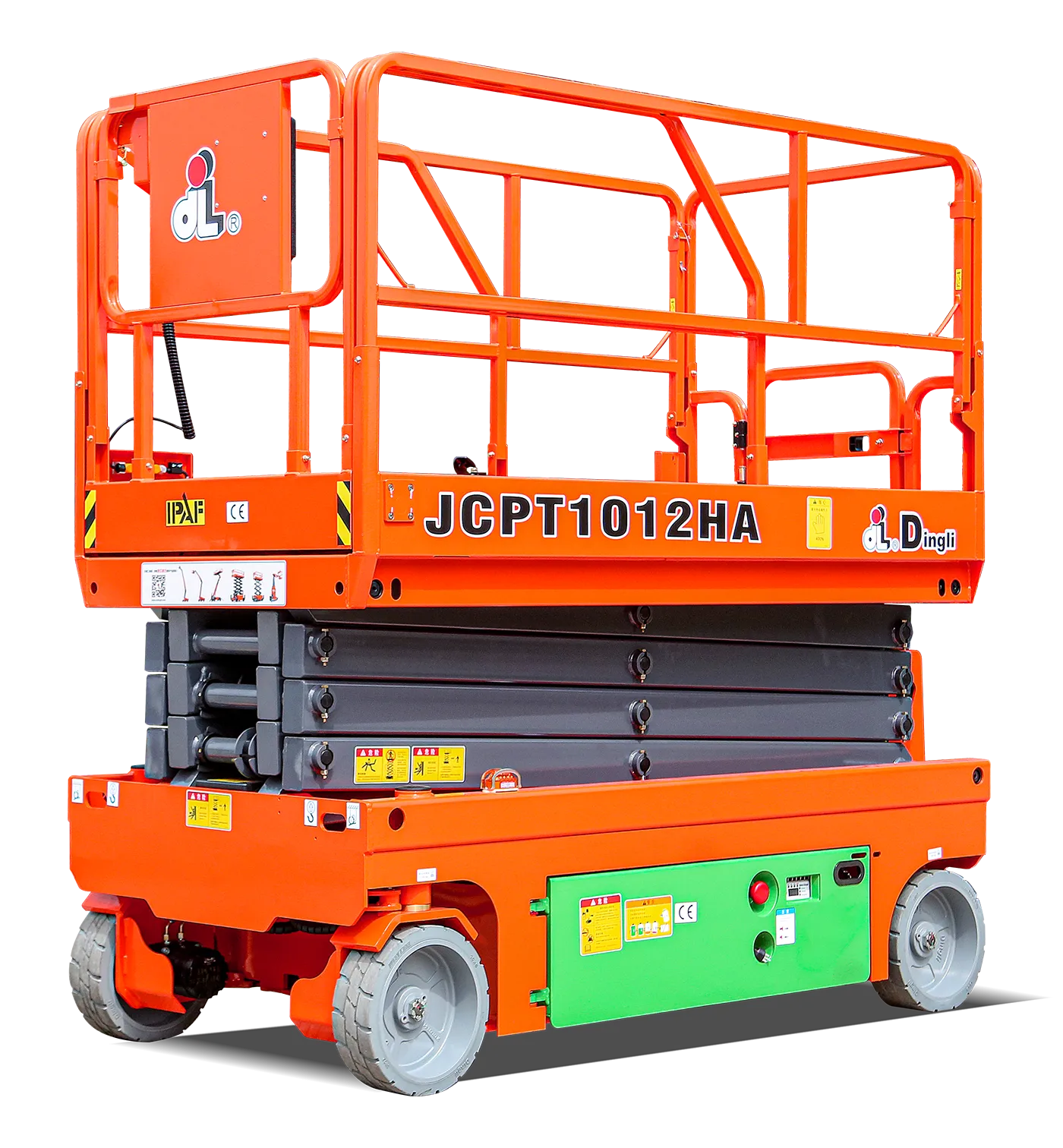

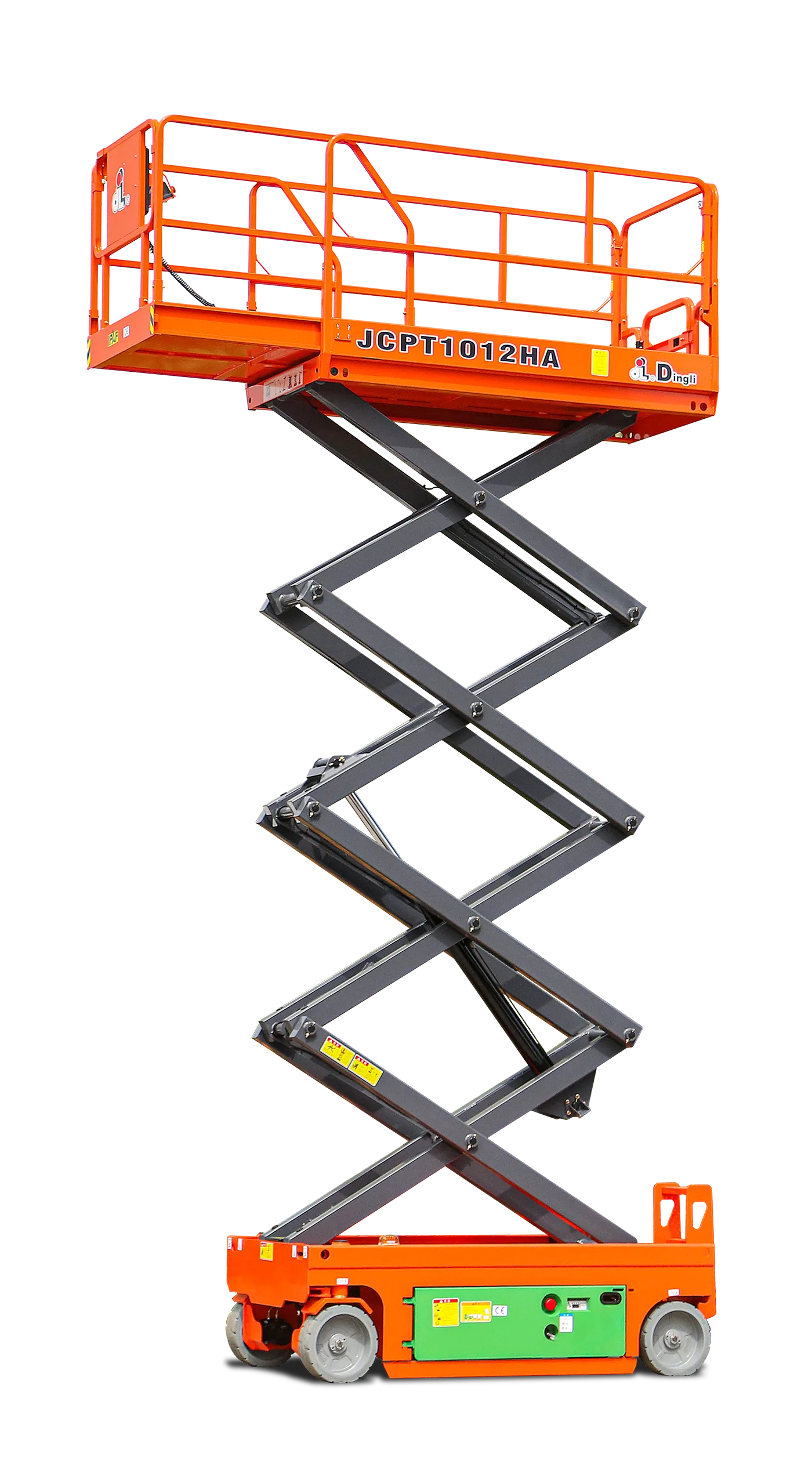

JCPT1012HA Electric Slab Scissor Lift
₹ 12,76,535
+ 18% GST = ₹ 15,06,311 incl.
10.00m/32ft 10inmWorking Height
2Occupants
Description
Designed for seamless performance and operational efficiency, JCPT1012HA is equipped with a hydraulic pump for lifting and driving. Equipped with enhanced safety features, this maintenance-free scissor lift is suitable for a wide range of maintenance tasks.
Key Features
- Automatic pothole protection system
- Overall width is 1.15m
- Unidirectional extension platform for easy maneuvering and access to the operational point.
- Automatic display of fault code to reduce downtime
- Equipped with 24V/185Ah high-capacity battery pack
Specifications
Max. Working Height10.00m/32ft 10in
Max. Platform Height8.00m/26ft 3in
Overall Length(With Ladder)2.48m/8ft 2in
Overall Width1.15m/3ft 9in
Overall Height(Rails Up)2.36m/7ft 9in
Overall Height(Rails Down)1.83m/6pt
Platform Size(Length×Width)2.27m×1.12m/7ft 5in×3ft 8in
Platform Extension Size0.90m/2ft 11in
Ground Clearance(Stowed/Raised)0.10m/0.019m / 4in/1in
Wheelbase1.87m/6ft 2in
Turning Radius(Inside/Outside)0m/2.20m / 0in/7ft 3in
Tyresφ381×127mm
S.W.L450kg/992lb
S.W.L On Extension113kg/249lb
Max. Occupants2
Gradeability25%
Travel Speed(Stowed)3.5km/h / 2.17mph
Travel Speed(Raised)0.8km/h / 0.50mph
Max. Working SlopeX-1.5°/Y-3°
Up/Down Speed34/30sec
Overall Weight(Lead-acid Battery)2670kg/5886lb
Overall Weight(Lithium Battery)2610kg/5754lb
Hydraulic Tank20L/5gal 3pt
Battery24V/185Ah
Charger24V/30A
Lifting Motor15VAC/3.5kW
Power SourceHydraulic
